Tennessee Valley Railroad Museum

Diesel Locomotives

tag_quote

Today, Tennessee Valley Railroad Museum preserves railroad equipment not only to preserve machines but to preserve an experience as well. In providing this historical experience, TVRM hopes to educate our visitors about the importance of this industry and how it helped create the modern world in which we live.

Tennessee Valley Railroad Museum


#36

Nashville, Chattanooga & St Louis #36

  • builder:Baldwin Locomotive Works
  • model:VO-1000
  • type:B-B yard switcher
  • built:Aug 1943, Baldwin #67738
  • series:548 produced 1939-46
  • engine:De La Vergne 8-VO (8 cyl)
  • notes:
  • blt United States Air Force #7467
    to Tennessee Valley Railroad Museum
    painted as NCStL #36, to resemble the six VO-1000s on the NCStL roster
  • builder

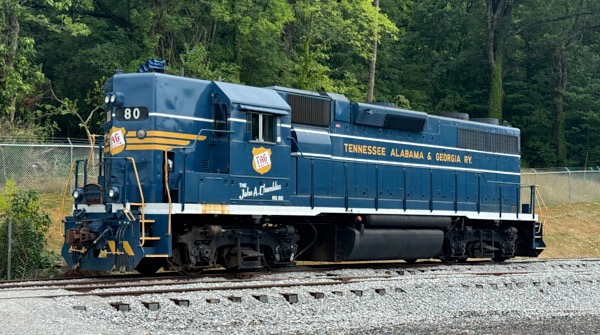

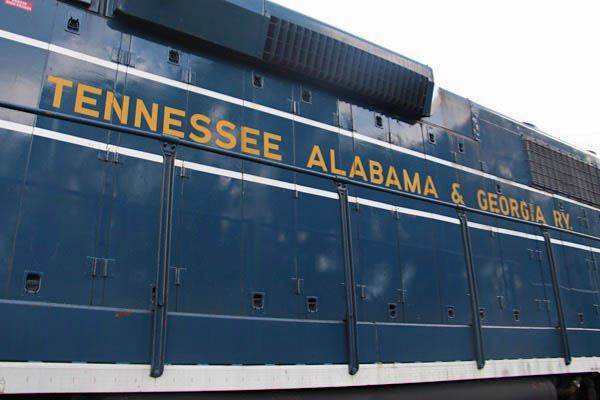

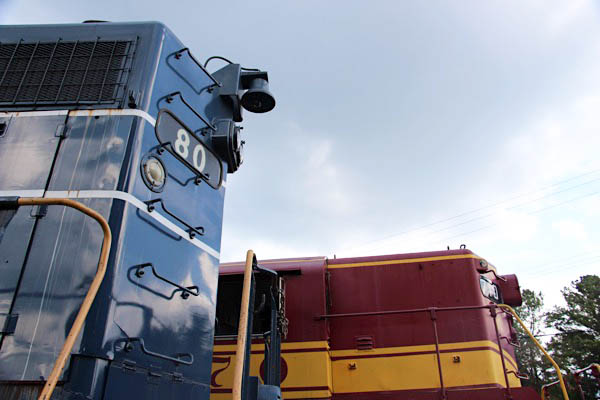

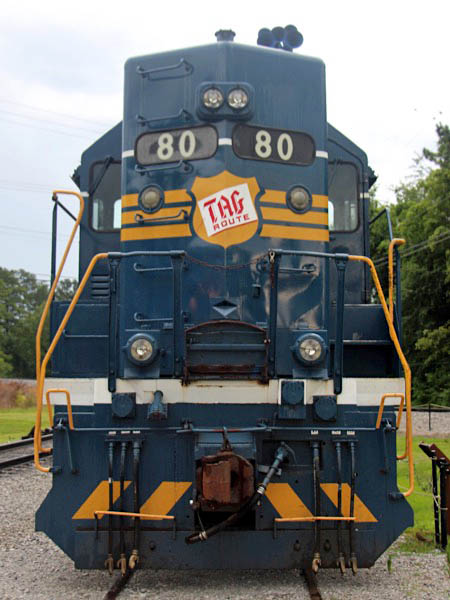

    #80

    tag_bird tag_rare

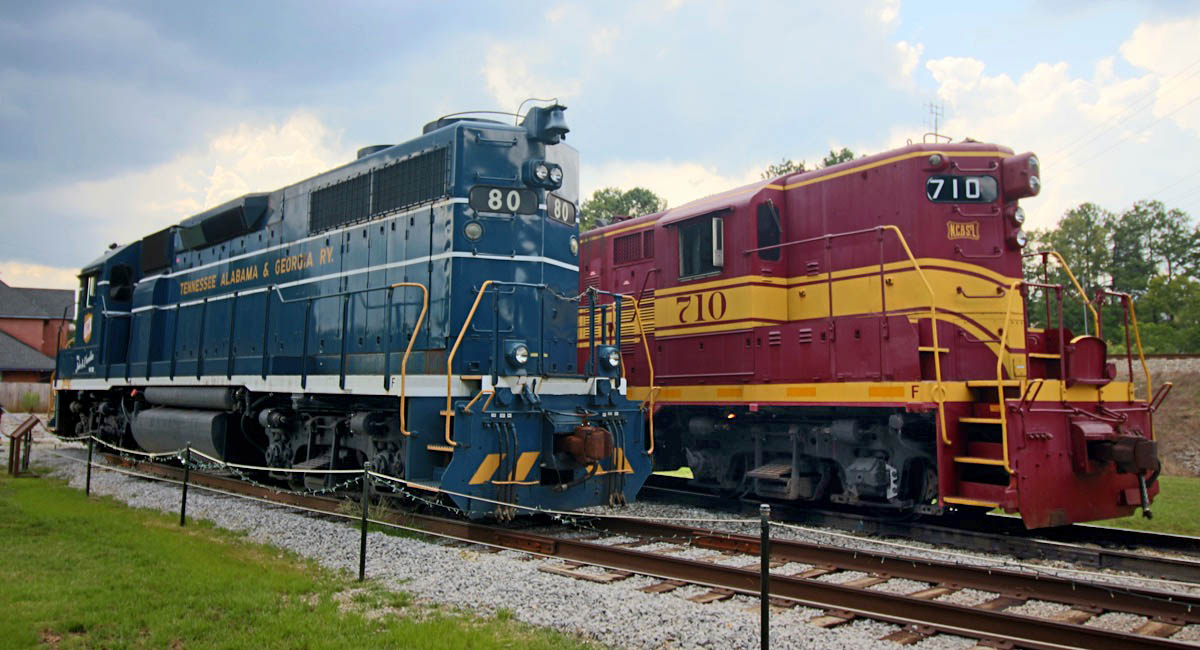

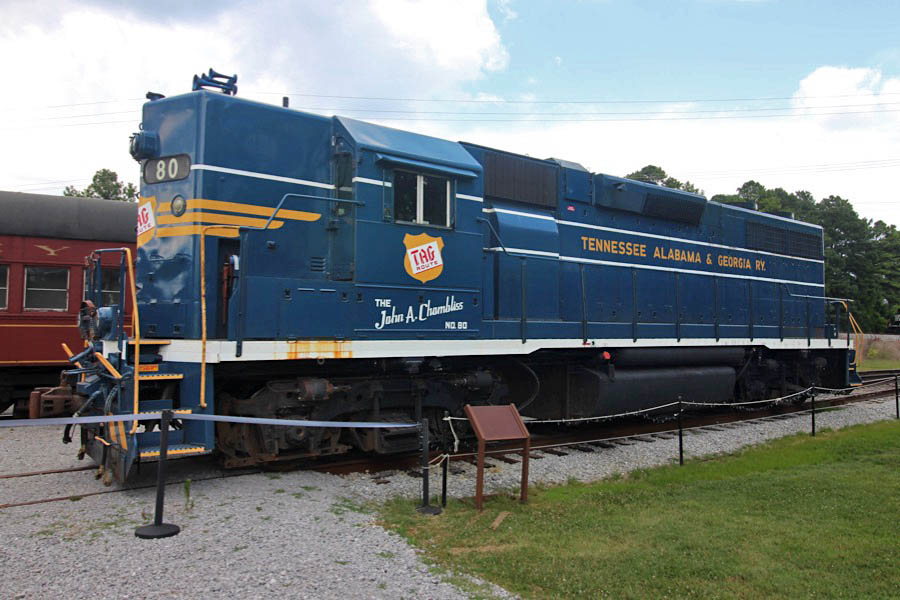

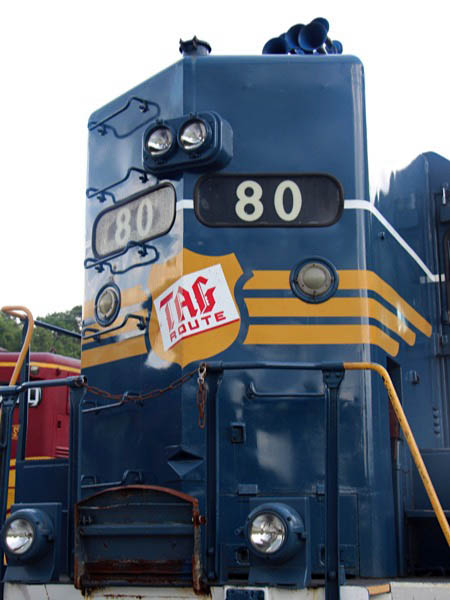

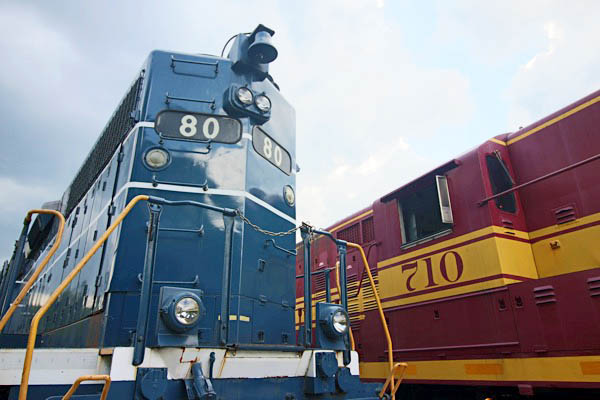

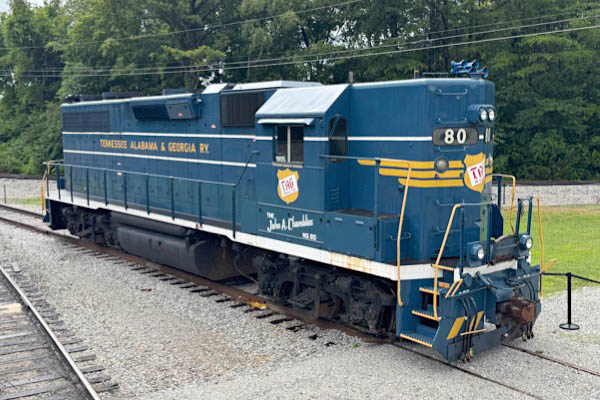

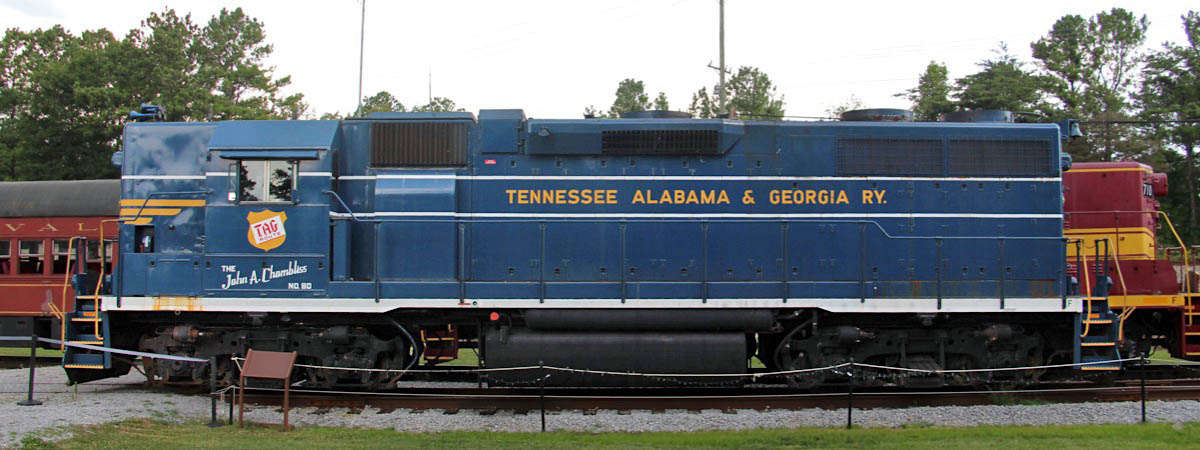

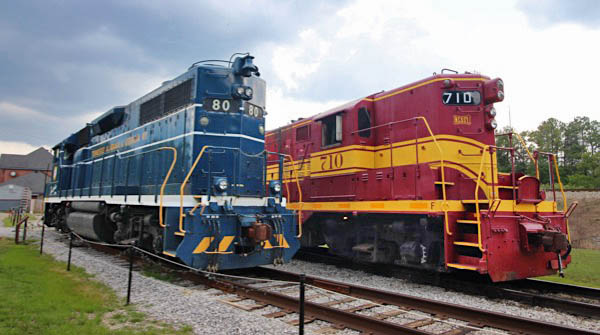

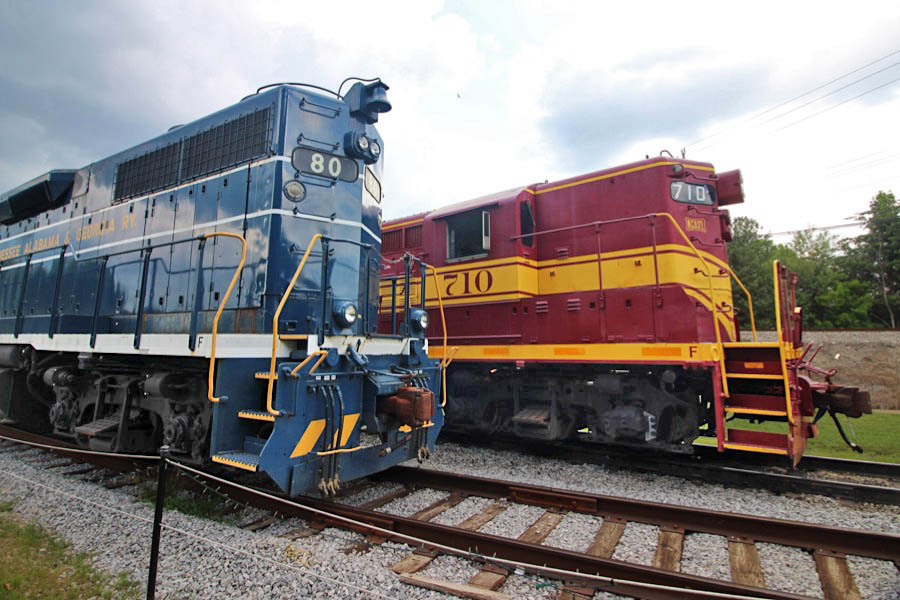

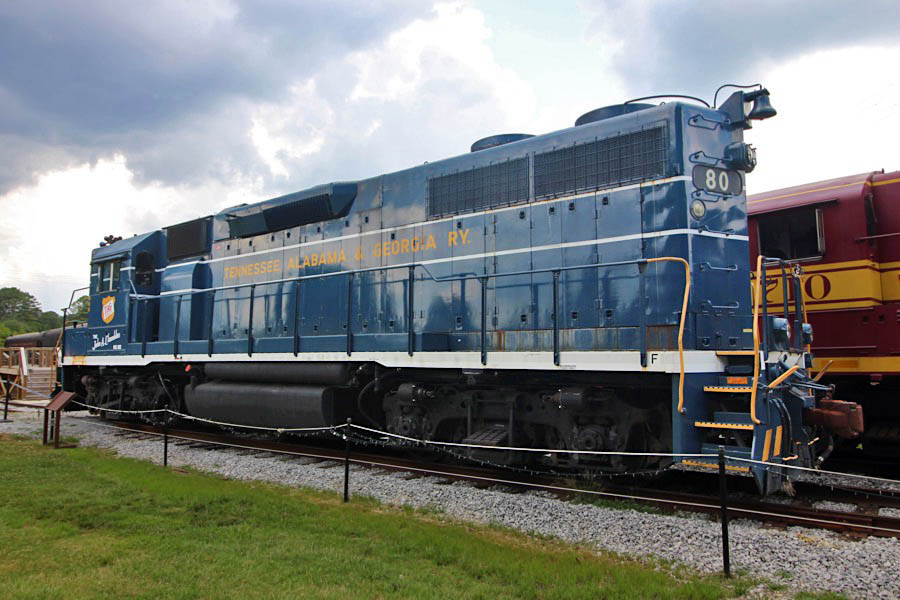

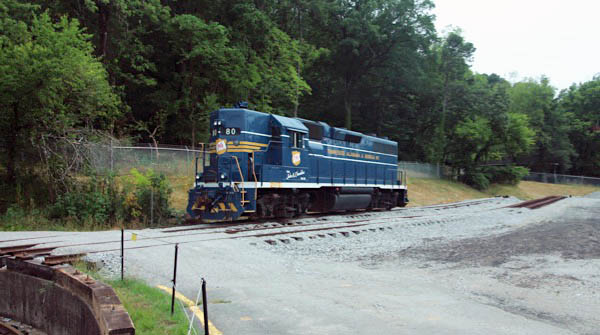

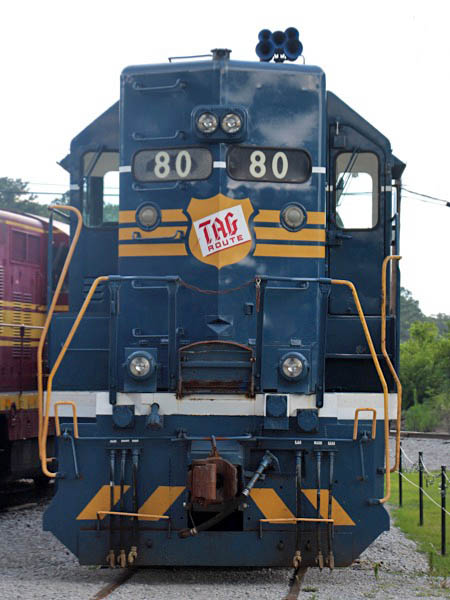

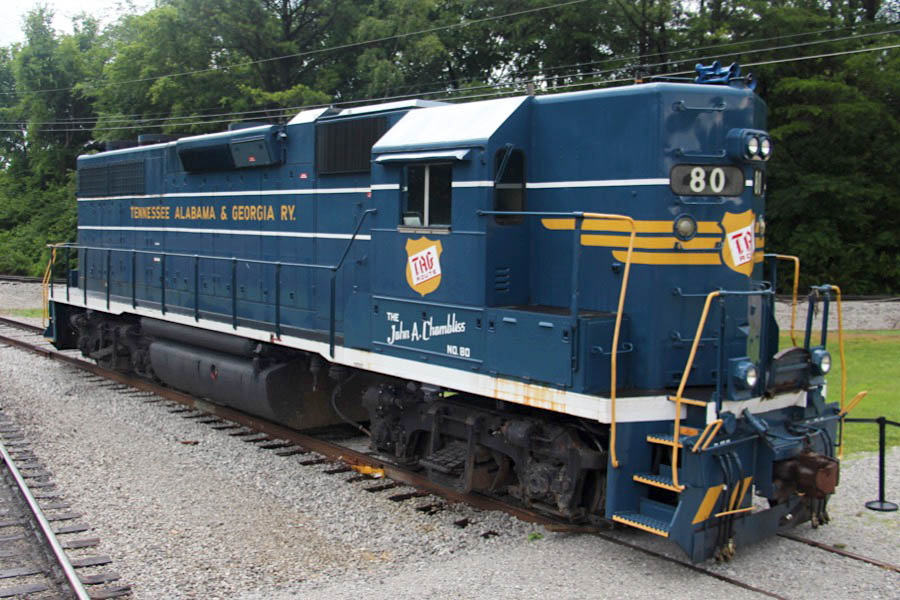

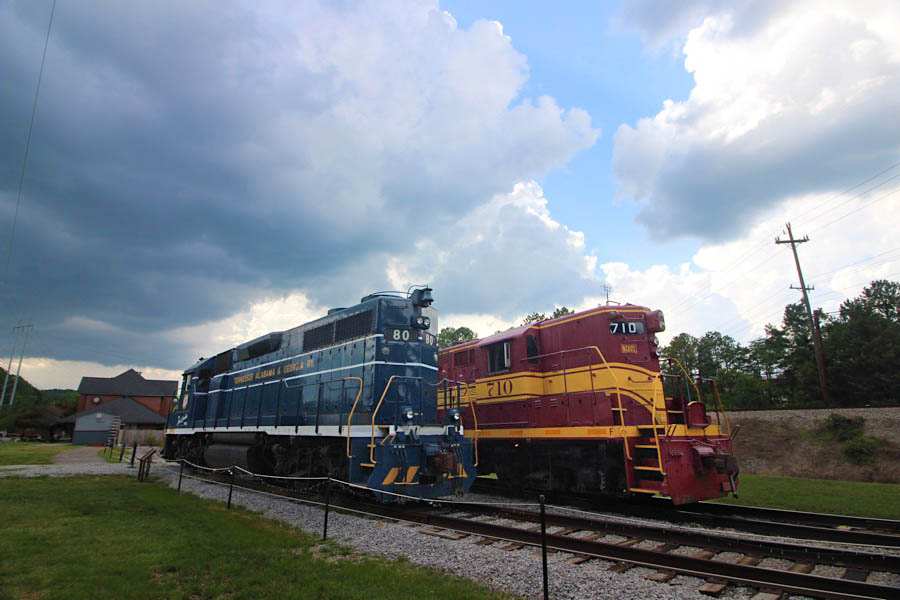

    Tennessee, Alabama & Georgia #80

  • builder:Electro Motive Division
  • model:GP38
  • type:B-B road switcher
  • built:Feb 1968, EMD #33802
  • series:706 produced 1966-71
  • engine:EMD 645 (16 cyl, 3000 hp)
  • notes:
  • blt Tennessee, Alabama & Georgia #1
    to Tennessee, Alabama & Georgia #80
    to Southern Railway #2879
    to Norfolk Southern #28879
    to Tennessee Valley Railroad Museum
    operational, in service
  • builder
    gp38_drawing

    collection

    tag_quote

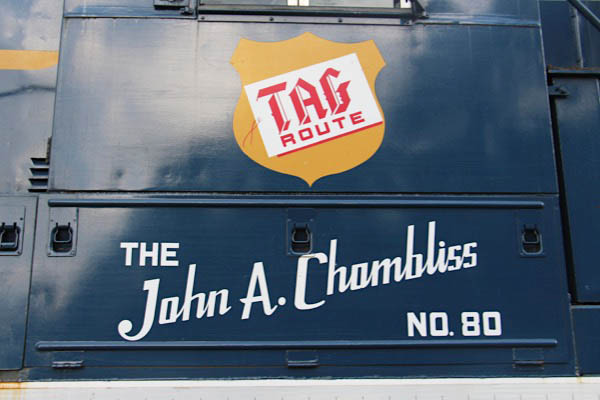

    Built by General Motors Electro-Motive Division in 1968, this locomotive was the first high-hood GP38 produced, developing 2,000 horsepower. It was built for the Tennessee, Alabama and Georgia Railway. The locomotive was named “The John A. Chambliss” in honor of the railroad’s vice president, and was dedicated on his 80th birthday, hence being numbered 80. After the TAG was acquired by the Southern Railway, the 80 became Southern Railway 2879, and later Norfolk Southern 2879. Norfolk Southern sold the locomotive to the Chambliss Family at auction in 2001, who then donated the locomotive to TVRM. The locomotive was restored mechanically, electrically and cosmetically between 2015 and 2016, returning to service in March 2017. The TAG 80 was also returned to its original number and paint scheme.

    Tennessee Valley Railroad Museum

    tag80_cover
    tag80_article1

    from TRAINS Magazine
    - Nov 2020 / collection

    tag80_article2
    tag80_article3
    sou2879_clipping

    from Diesels of the Southern Railway 1939-1982
    — Paul K. Withers / collection

    tag80_clipping2020

    from Railfan & Railroad Magazine
    - Mar 2020 / collection

    tvrm_postcard2

    postcard / collection

    #200

    Tennessee Valley #200

  • builder:Baldwin Locomotive Works
  • model:VO-1000RP
  • type:B-B yard switcher
  • built:Nov 1941, Baldwin #64258
  • series:548 produced 1939-46
  • engine:EMD 567C (1200 hp)
  • notes:
  • blt St Louis-San Francisco #200
    repowered by Electro Motive Division
    to United States Navy #200
    to Tennessee Valley #200, in storage
  • builder

    #606

    Tennessee Valley #606

  • builder:Electro Motive Division
  • model:SW1200
  • type:B-B yard switcher
  • built:Dec 1954, EMD #20047
  • series:1056 produced 1954-66
  • engine:EMD 567C (12 cyl, 1200 hp)
  • notes:
  • blt Milwaukee Road #606
    to United States Navy #606
    to Tennessee Valley #606
    operational, in service
  • builder

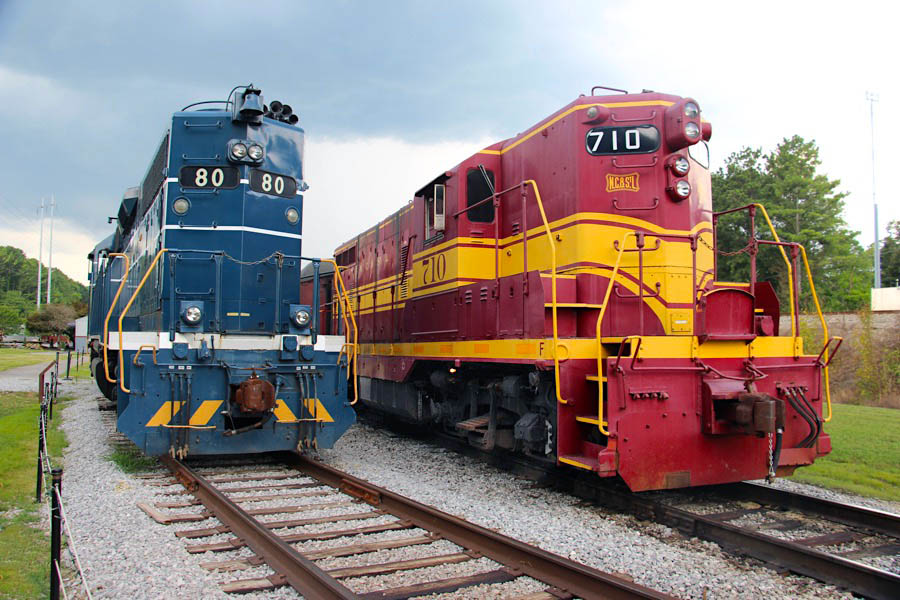

    #710

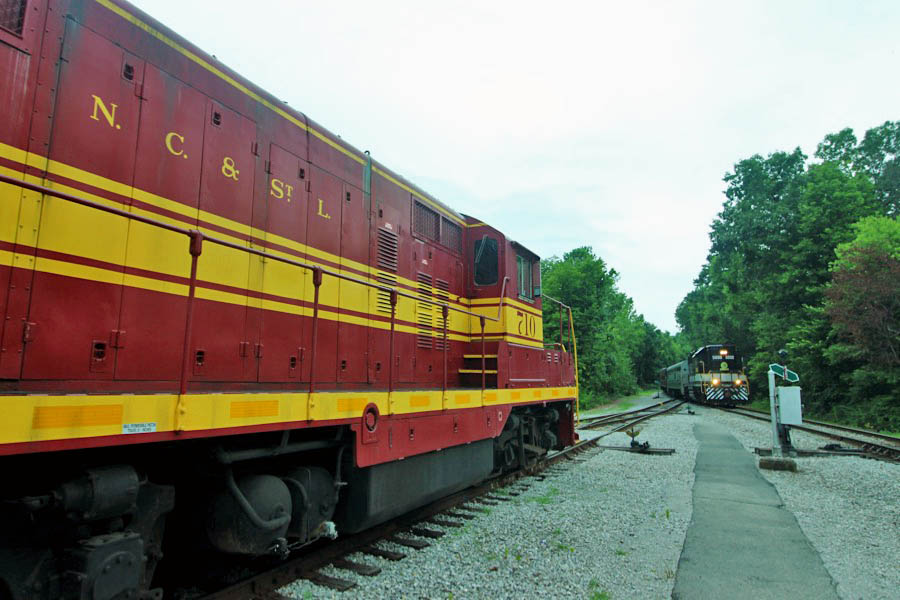

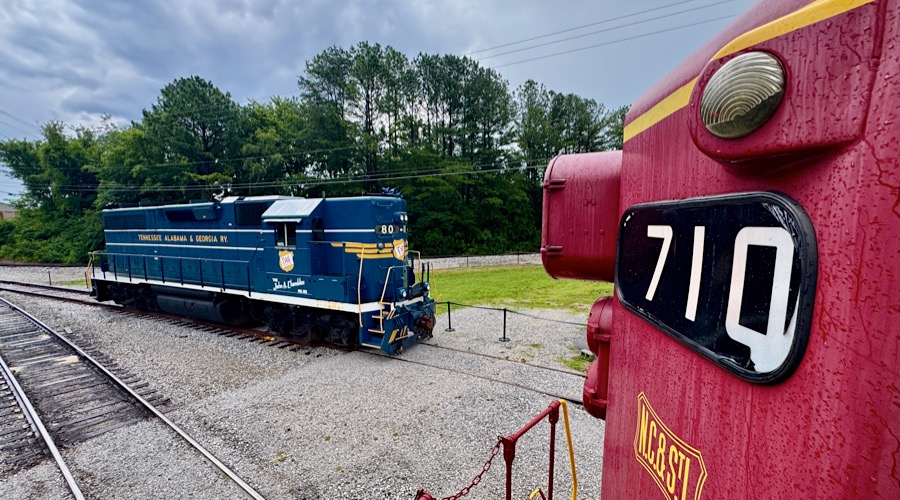

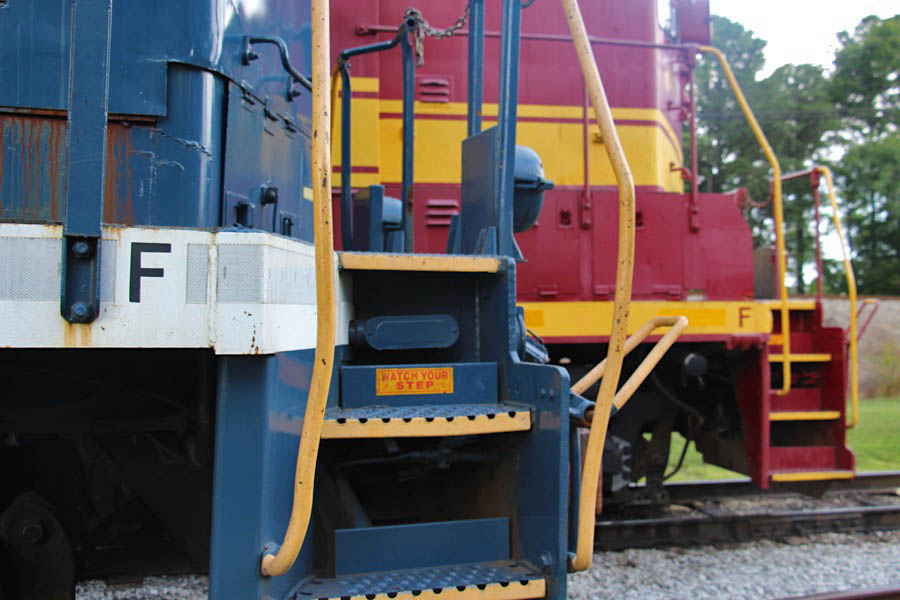

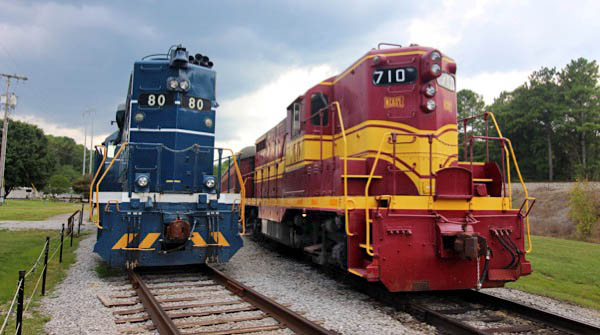

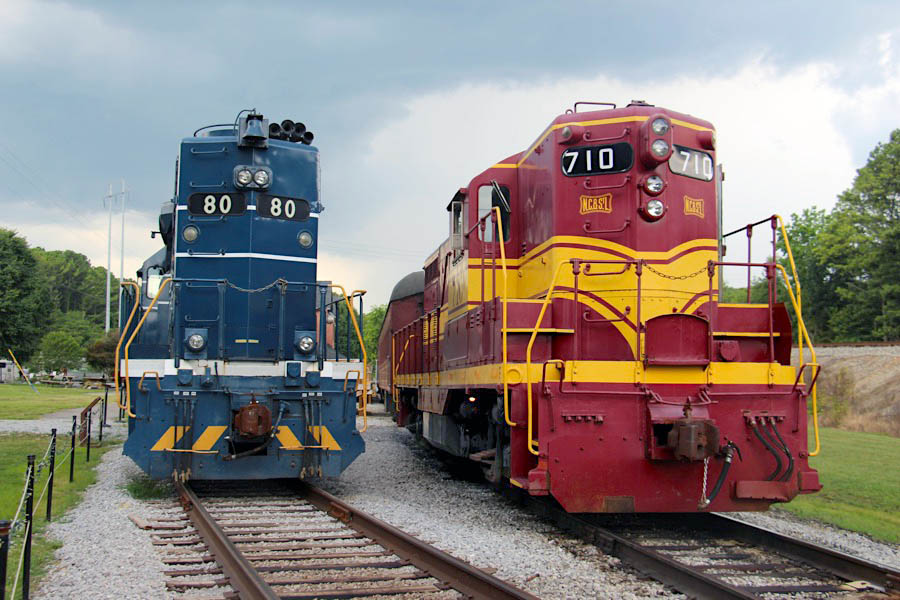

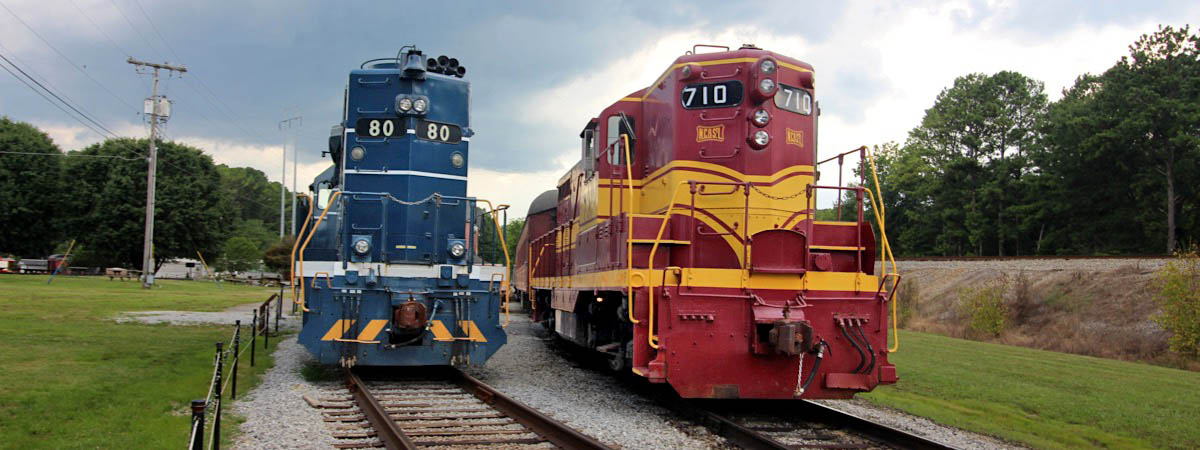

    Nashville, Chattanooga & St. Louis #710

  • builder:Electro Motive Division
  • model:GP7
  • type:B-B road switcher
  • built:Sep 1950, EMD #10551
  • series:2729 produced 1949-54
  • engine:EMD 567B (16 cyl, 1500 hp)
  • notes:
  • blt Nashville, Chatta & St. Louis #710
    to Louisville & Nashville #1710
    to Amtrak Maintenance #772
    to Tennessee Valley Railroad Museum
    operational, in service
  • builder
    gp7_drawing

    collection

    ncstl_banner1910

    1910 Official Guide ad / collection

    tag_quote

    General Motors Electro-Motive Division built the 710 in 1950 for the Nashville, Chattanooga and St. Louis (NC&St.L) Railway. The 710 was built as a GP7, developing 1,500 horsepower. The NC&St.L 710 later became Louisville and Nashville (L&N) 478. The 478 was sold to Amtrak in 1978, being again renumbered 772, to be used in maintenance of way service. Amtrak had the locomotive converted to a GP9, increasing its horsepower to 1,750. TVRM would later acquire the locomotive, completing its restoration in 2004. TVRM also returned the locomotive to its original 1950s appearance, including paint scheme and number. Today, the 710 can be found in operation on many of the museum’s trains.

    Tennessee Valley Railroad Museum

    ncstl710m1 ncstl710m2 ncstl710m3 ncstl710m4 ncstl710m5 ncstl710m6 ncstl710m7 ncstl710m8 ncstl710m9

    Aug 2021 / RWH

    ncstl_banner1948

    1948 Official Guide ad / collection

    #913

    tag_bird tag_rare

    Hartford & Slocomb #913

  • builder:American Locomotive Co.
  • model:RS1
  • type:B-B road switcher
  • built:Feb 1950, ALCO #77848
  • series:469 produced 1941-60
  • engine:ALCO 539T (6 cyl, 1000 hp)
  • notes:
  • blt Atlanta & St. Andrews Bay #913
    to Hartford & Slocomb #913
    to Tennessee Valley Railroad Museum
  • builder
    asab_banner1948

    1948 Official Guide ad / collection

    tag_quote

    The 913 was built in 1950 by the American Locomotive Company as part of an order of ten RS-1 units for the Atlanta & St. Andrews Bay Railroad (Bay Line). It was later sold to the Hartford and Slocomb Railroad, who donated it to TVRM in 1992 when that railroad was largely abandoned. The unit operated briefly at TVRM before mechanical issues forced its retirement. The unit today remains on display in TVRM’s display yard at Grand Junction.

    Tennessee Valley Railroad Museum

    hs913g1 hs913g2 hs913g3 hs913g4 hs913g5 hs913g6 hs913g7 hs913g8 hs913g9

    Jun 2019 / RWH

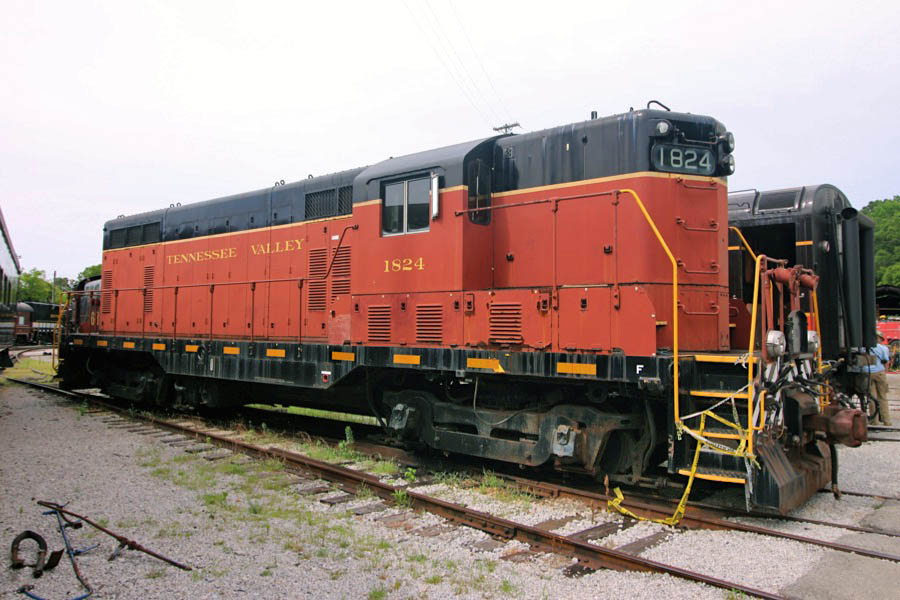

    #1824

    Tennessee Valley #1824

  • builder:Electro Motive Division
  • model:GP7L
  • type:B-B road switcher
  • built:Aug 1951, EMD #15694
  • series:2729 produced 1949-54
  • engine:EMD 567B (16 cyl, 1500 hp)
  • notes:
  • blt United States Army #1824
    assigned Holston Army Ammunition Plant
    to Tennessee Valley Railroad Museum
  • builder

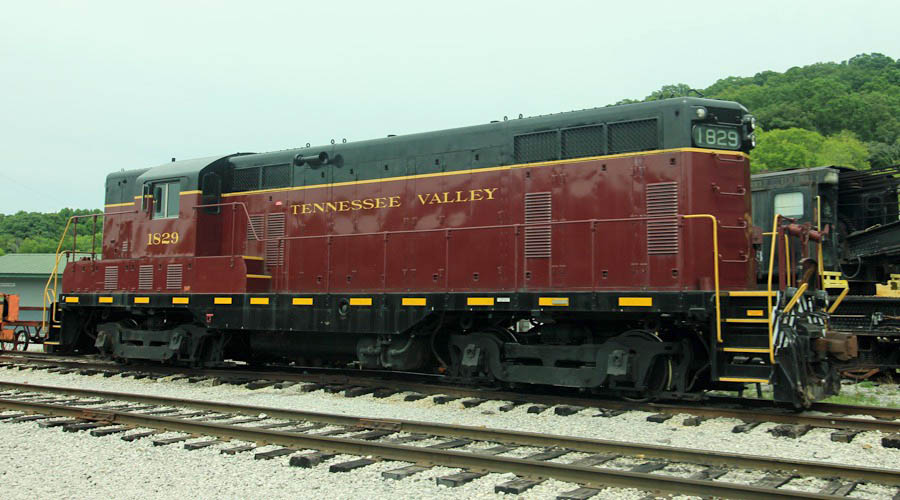

    #1829

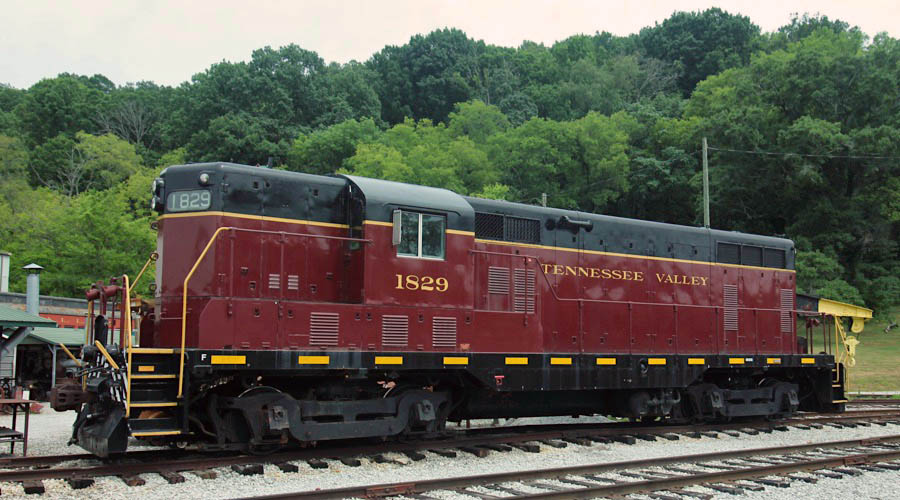

    Tennessee Valley #1829

  • builder:Electro Motive Division
  • model:GP7L
  • type:B-B road switcher
  • built:Aug 1951, EMD #15699
  • series:2729 produced 1949-54
  • engine:EMD 567B (16 cyl, 1500 hp)
  • notes:
  • blt United States Army #1829
    assigned Holston Army Ammunition Plant
    to Tennessee Valley Railroad Museum
  • builder

    #2594

    Southern Railway #2594

  • builder:Electro Motive Division
  • model:GP30
  • type:B-B road switcher
  • built:Oct 1963, EMD #28564
  • series:948 produced 1961-63
  • engine:EMD 567D3 (16 cyl, 2250 hp)
  • notes:
  • blt Southern Railway #2594
    to Norfolk Southern #2594
    to Southeastern Railway Museum
    at Tennessee Valley Railroad Museum
  • builder
    tvrm_postcard3

    postcard / collection

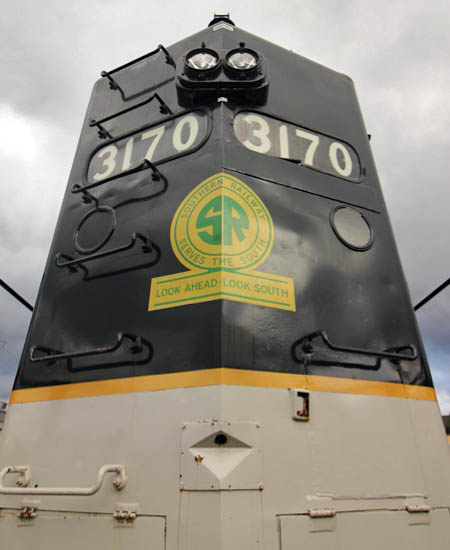

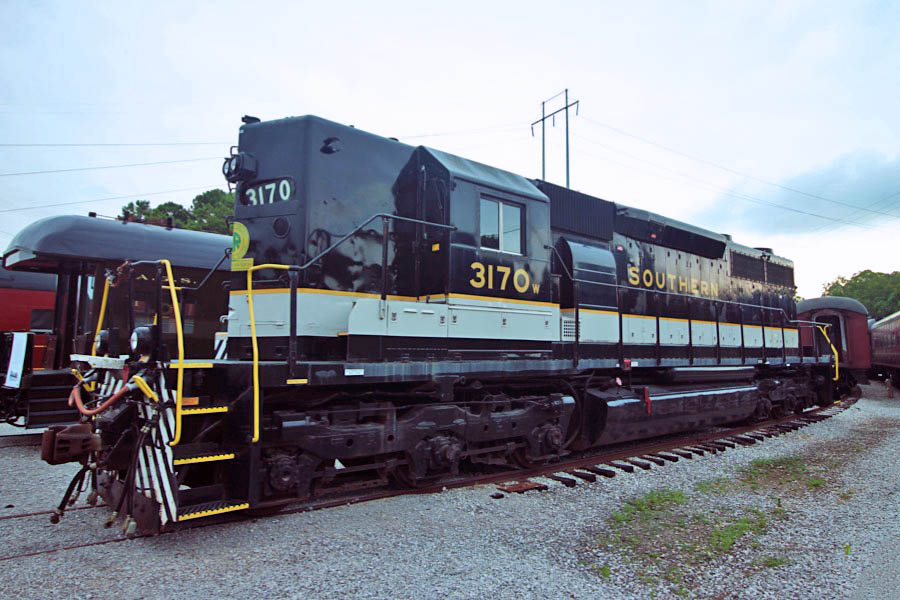

    #3170

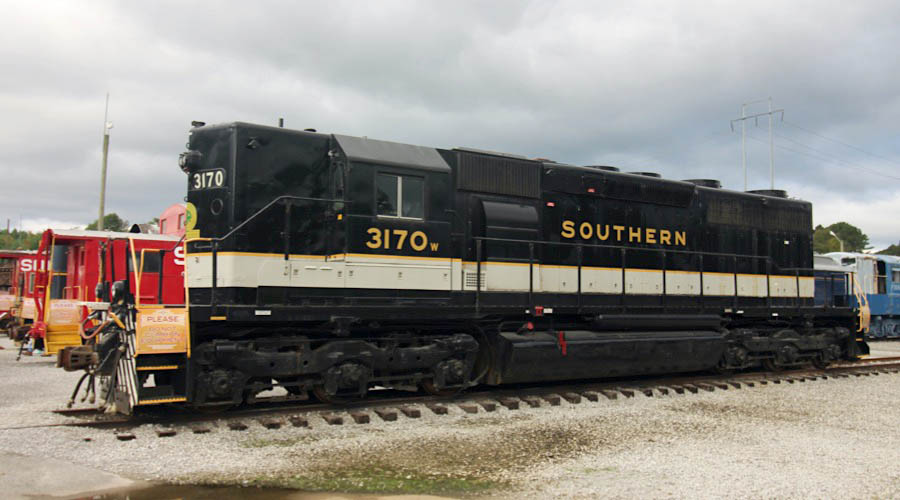

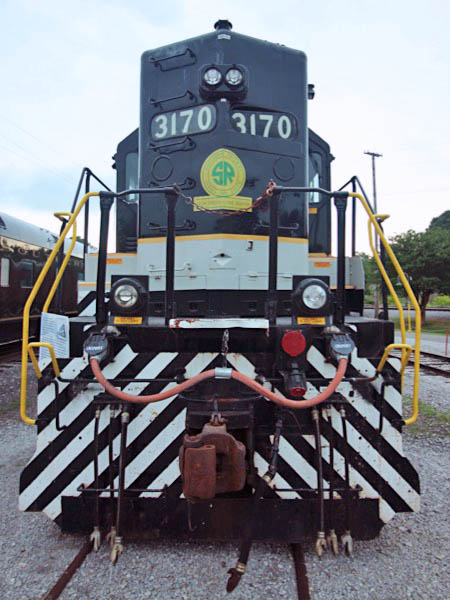

    Southern Railway #3170

  • builder:Electro Motive Division
  • model:SD40
  • type:C-C road power
  • built:Apr 1971, EMD #37355
  • series:1286 produced 1966-72
  • engine:EMD 645E3 (16 cyl, 3000 hp)
  • notes:
  • blt Southern Railway #3170
    to Norfolk Southern #3170
    to Tennessee Valley Railroad Museum
  • builder
    tag_field

    Bristol, Virgina - Apr 5, 2015 — Passing through the Virginia side of Bristol and found SOU 3170 heritage unit dead-in-tow behind a large NS consist leading a northbound freight stopped for a crew change in the NS Bristol yard.

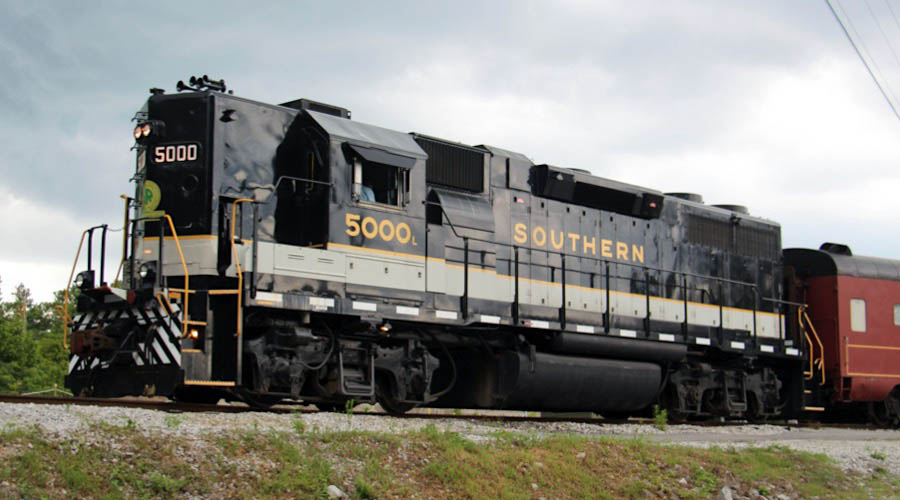

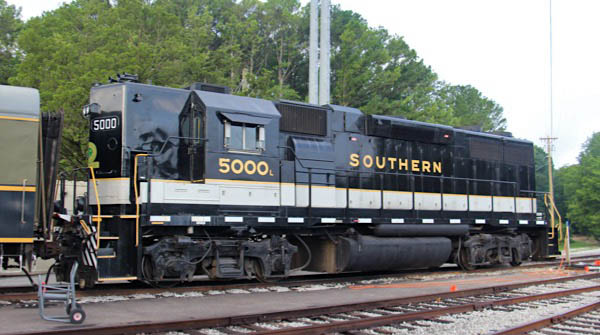

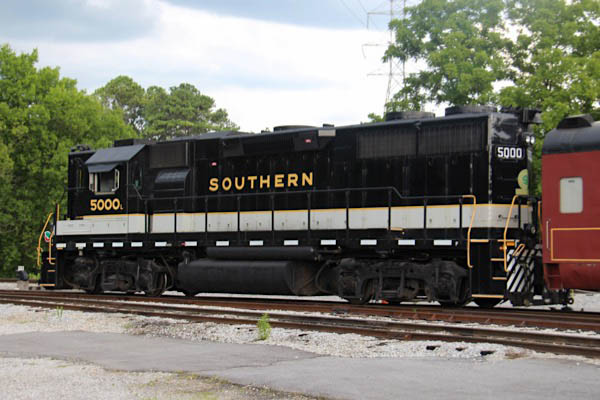

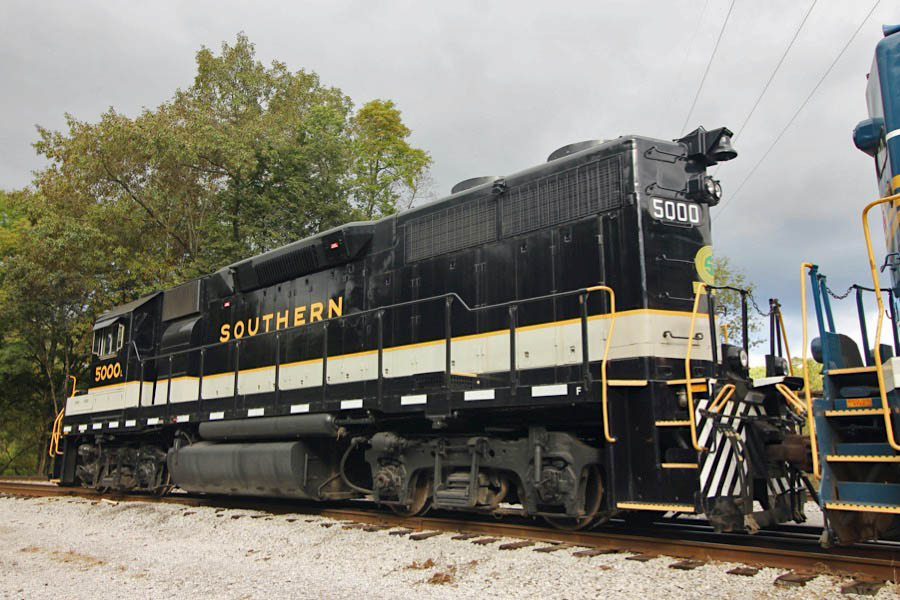

    #5000

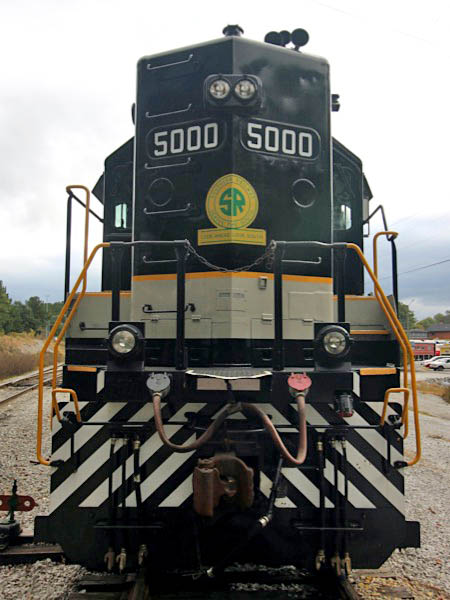

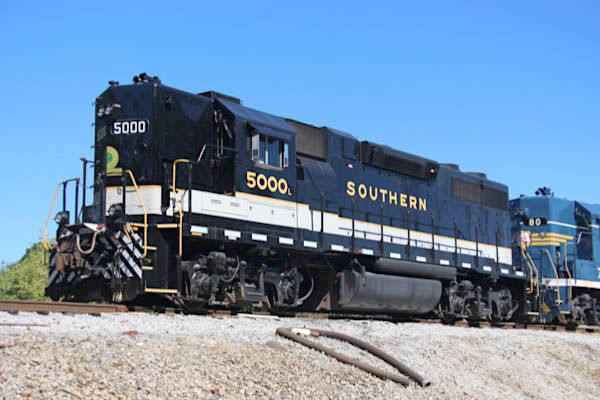

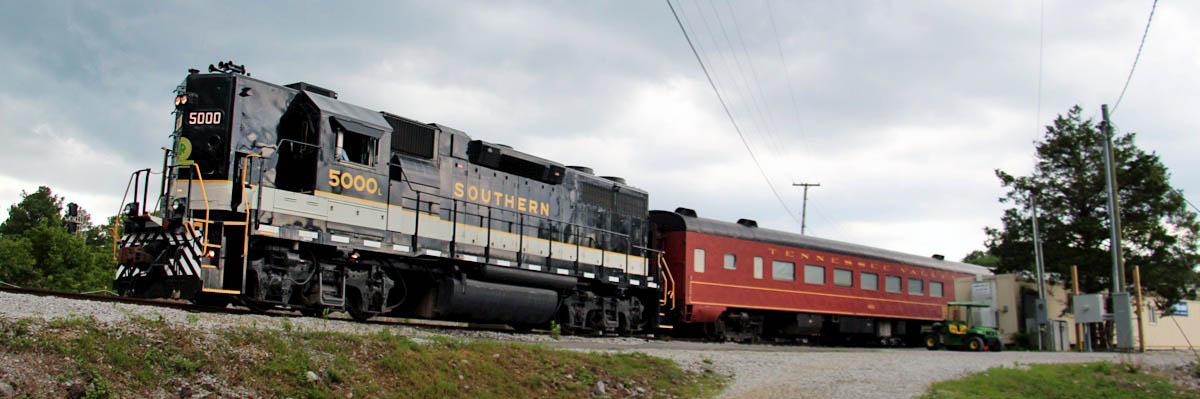

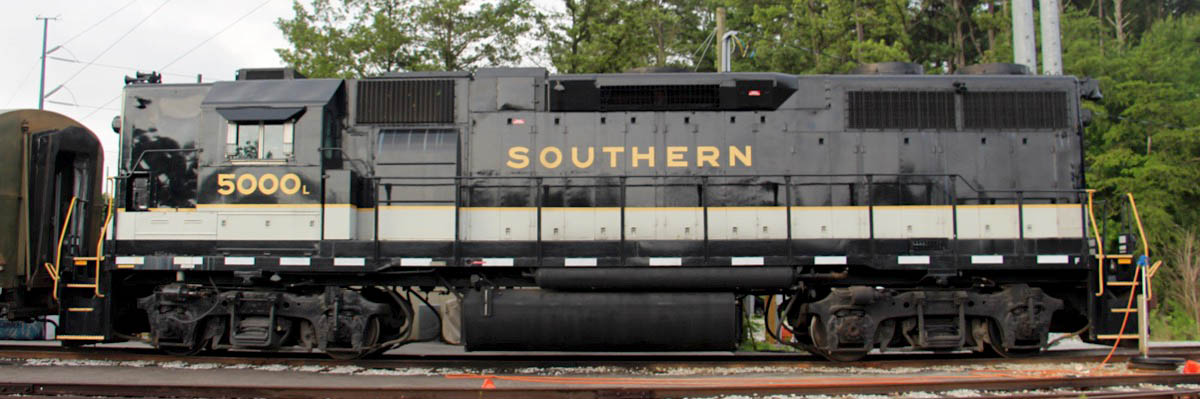

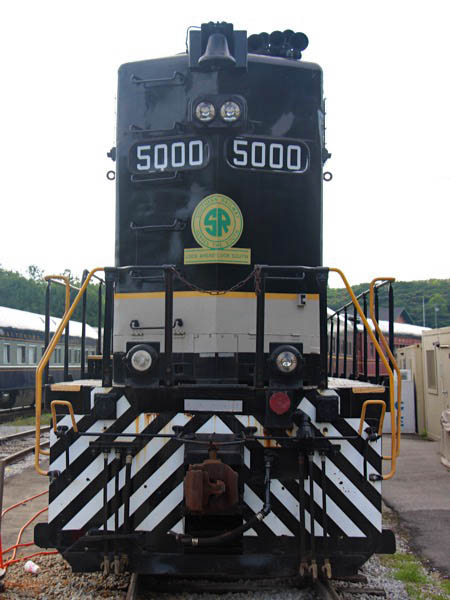

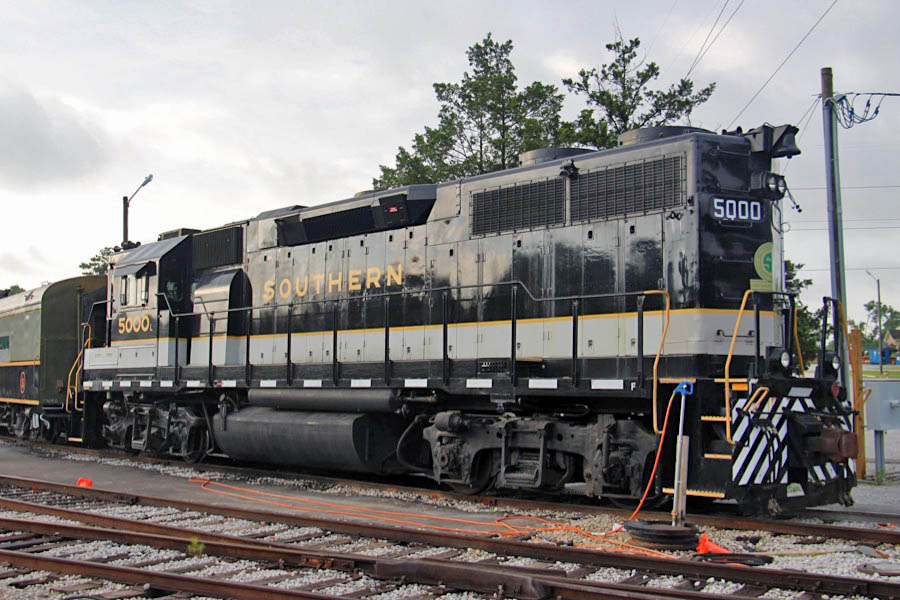

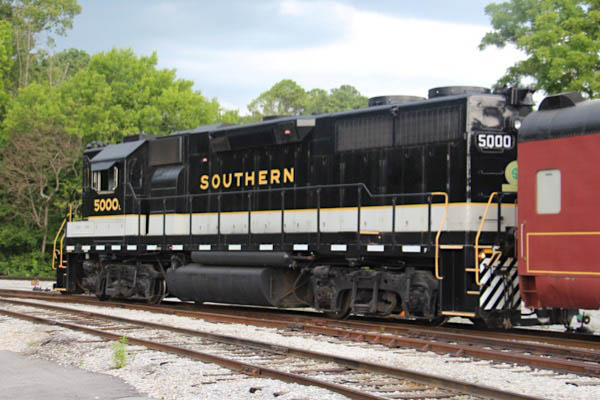

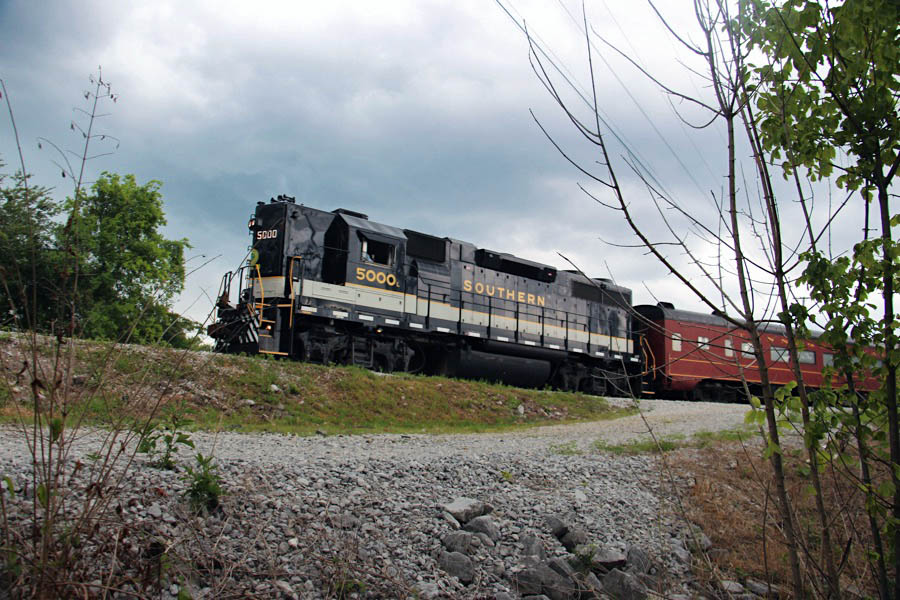

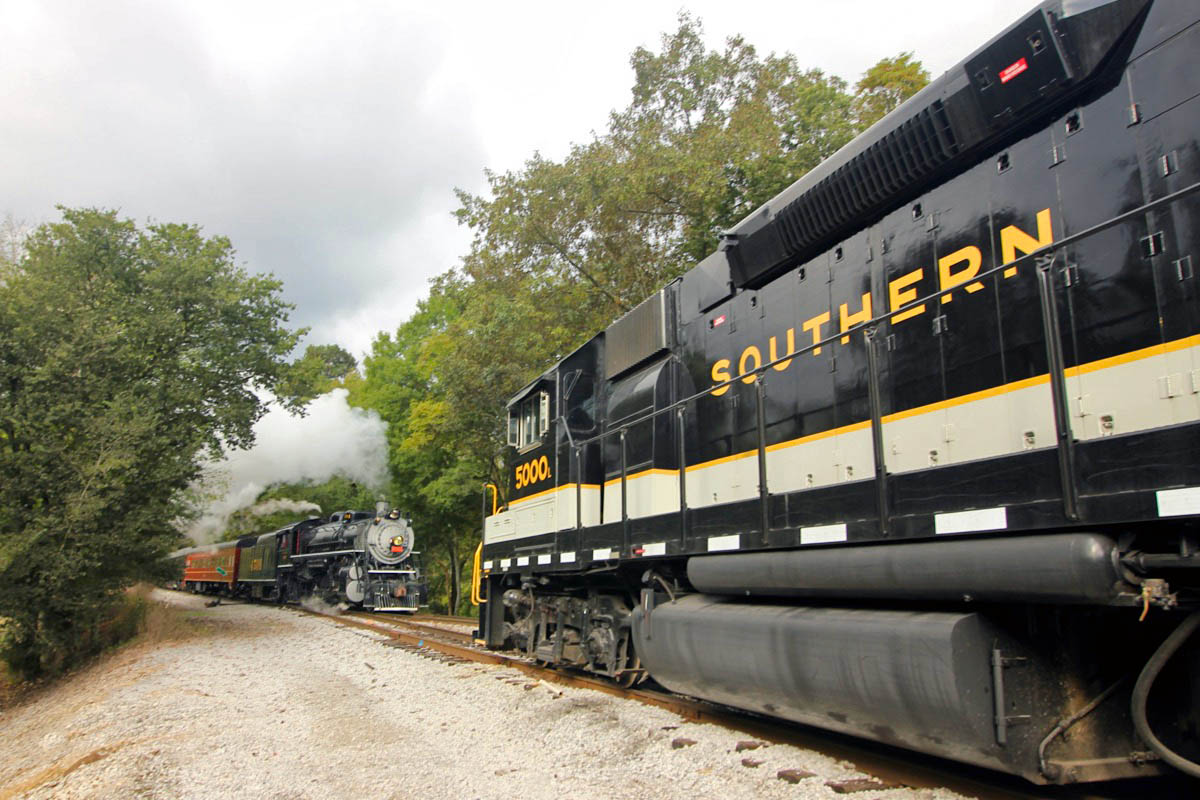

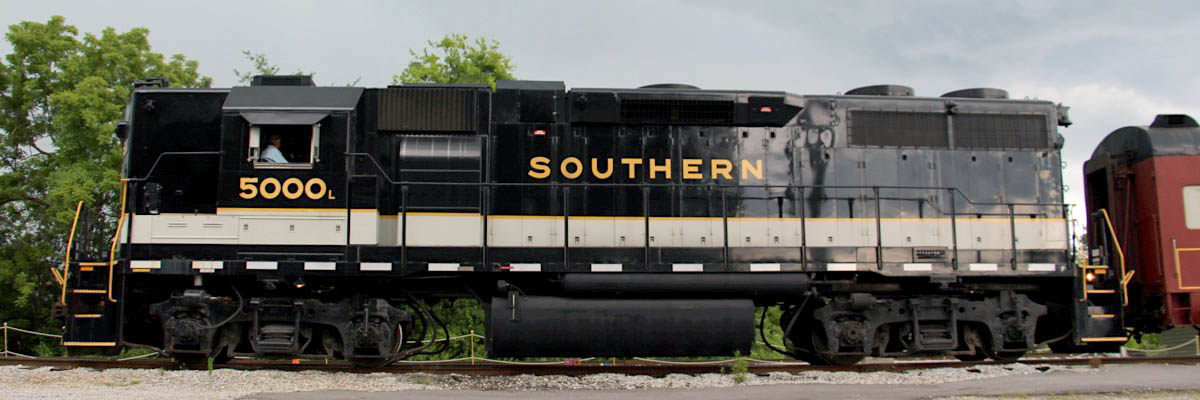

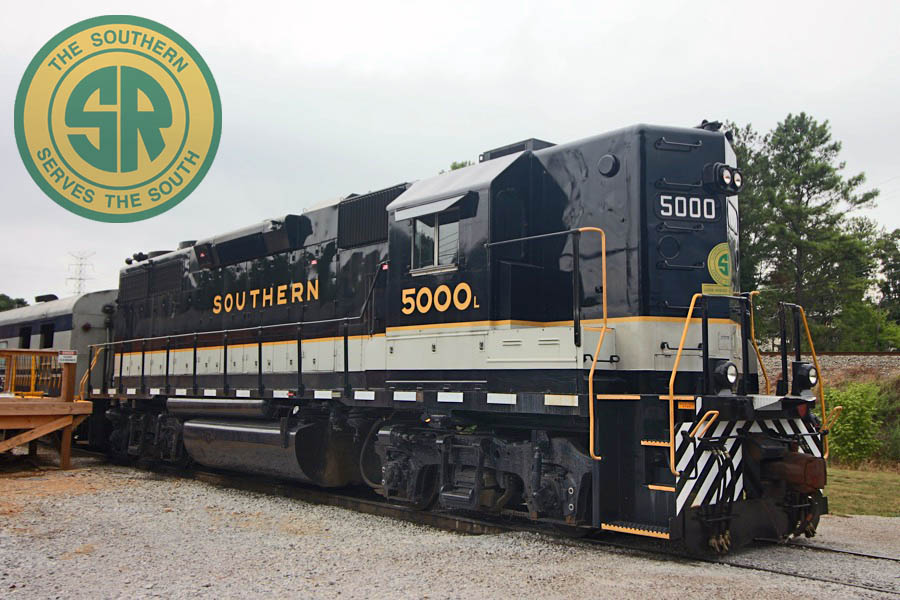

    Southern Railway #5000

  • builder:Electro Motive Division
  • model:GP38-2
  • type:B-B road switcher
  • built:Jan 1972, EMD #5809-1
  • series:2213 produced 1972-86
  • engine:EMD 645E (16 cyl, 2000 hp)
  • notes:
  • blt Southern Railway #5000 (class unit)
    to Norfolk Southern #5000
    to Tennessee Valley Railroad Museum
  • builder
    gp38-2_drawing

    collection

    sou5000_clipping

    from Southern: A Motive Power Pictorial 1968-1982
    — Paul Withers & Tom Sink / collection

    sou5000f1 sou5000f2 sou5000f3 sou5000f4 sou5000f5 sou5000f6

    Aug 2021 / RWH

    tag_quote

    Built in 1972, this locomotive was the first of 257 GP38-2 locomotives purchased by the Southern Railway, producing 2,000 horsepower. Unlike most other railroads, the Southern Railway had all 257 of these locomotives built with high short hoods, rather than the factory default low short hoods. TVRM traded another GP38-2, Southern Railway 5033, to acquire the 5000 in 2016. The locomotive can be found in operation at TVRM today, having been repainted to its original Southern Railway paint scheme it wore when new.

    Tennessee Valley Railroad Museum

    #5044

    Tennessee Valley #5044

  • builder:Electro Motive Division
  • model:GP38-2
  • type:B-B road switcher
  • built:Mar 1972, EMD #7362-35
  • series:2213 produced 1972-86
  • engine:EMD 645E (16 cyl, 2000 hp)
  • notes:
  • blt Southern Railway #5044
    to Norfolk Southern #5044
    to Tennessee Valley Railroad Museum
  • builder
    tvrm5044l1 tvrm5044l2 tvrm5044l3 tvrm5044l4 tvrm5044l5 tvrm5044l6

    Jun 2019 / RWH

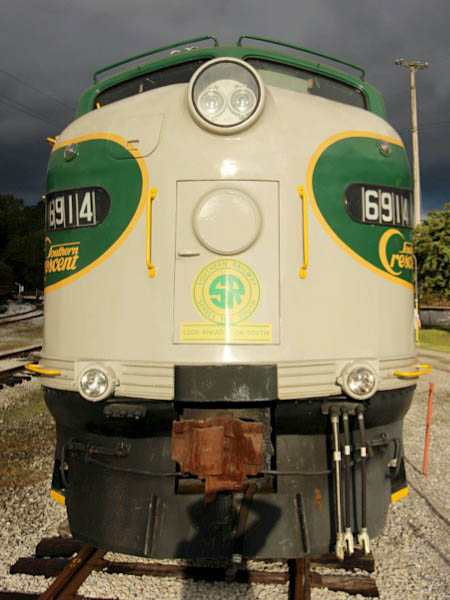

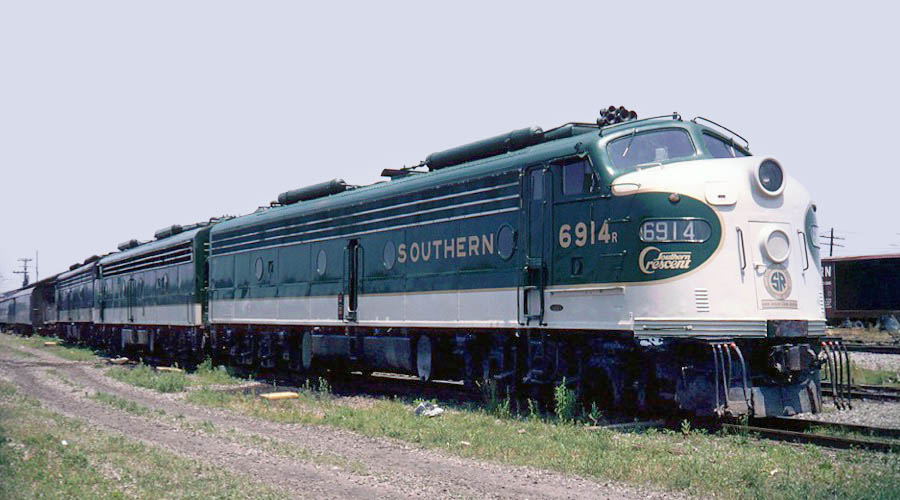

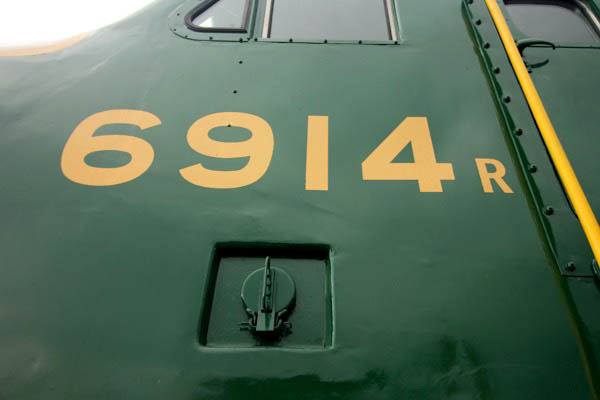

    #6914

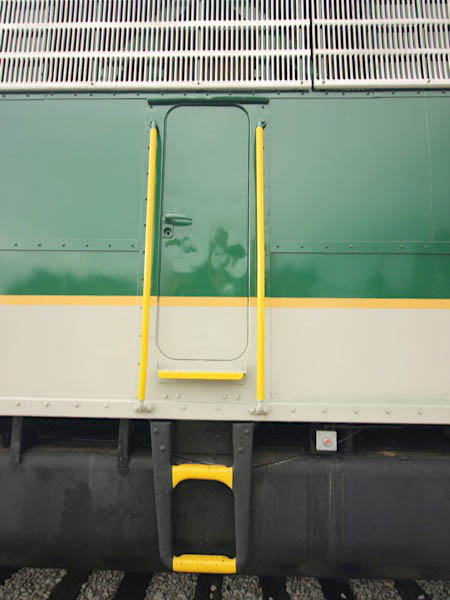

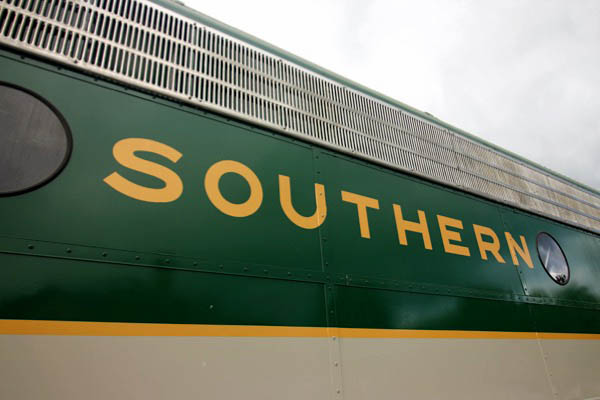

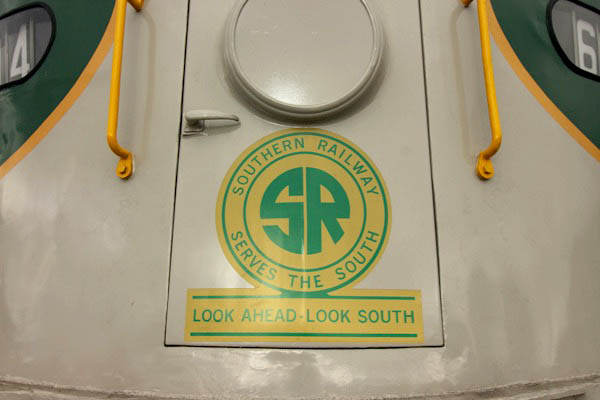

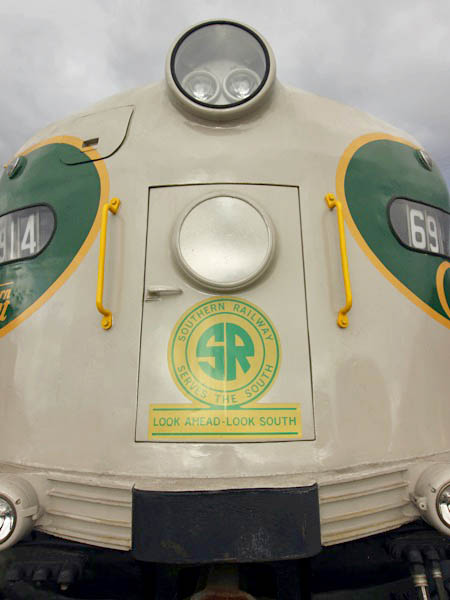

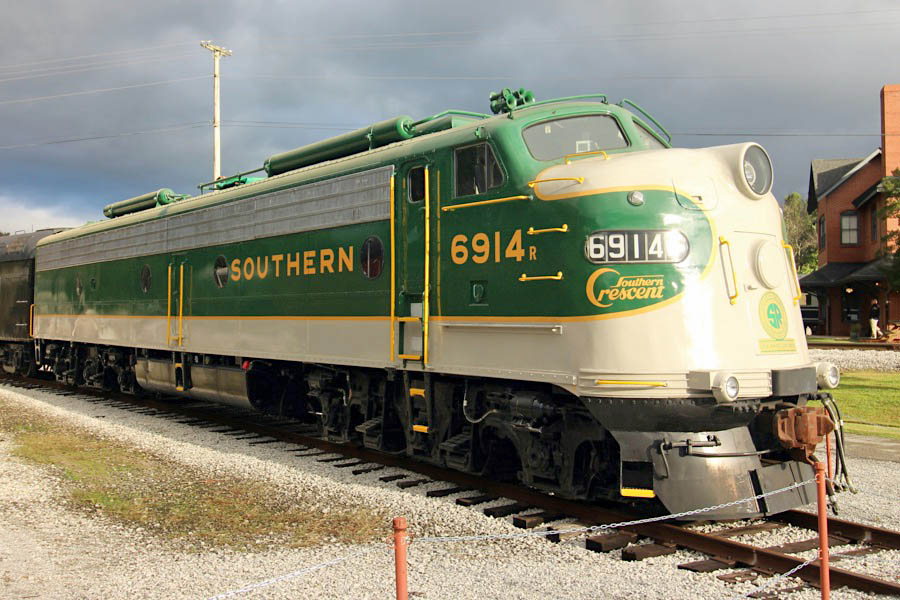

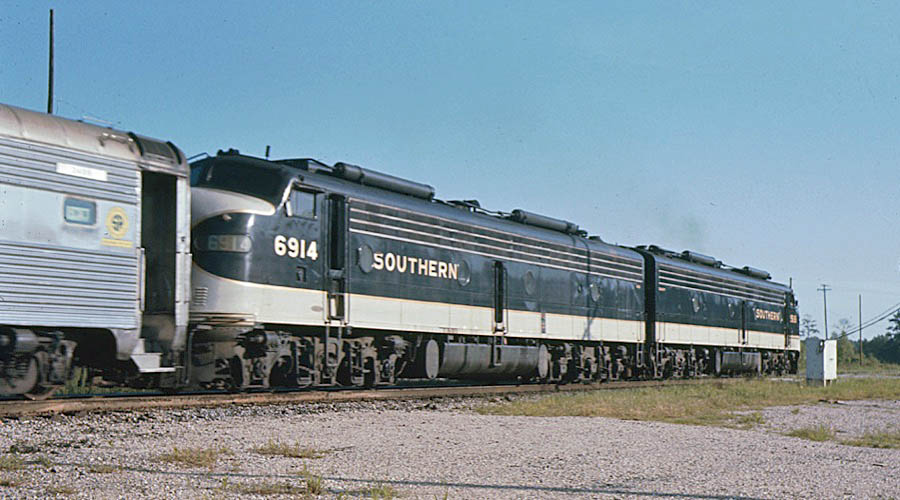

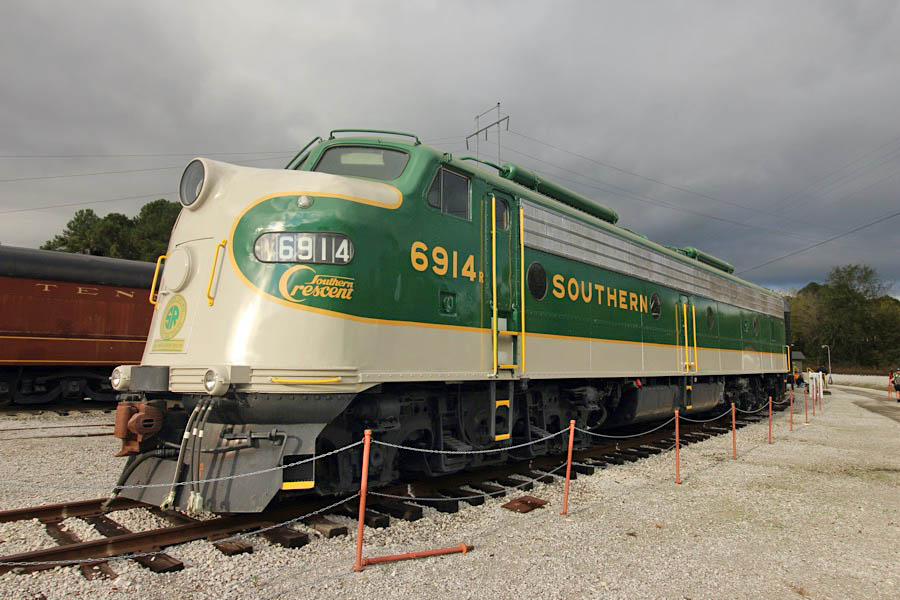

    Southern #6914

  • builder:Electro Motive Division
  • model:E8
  • type:A1A-A1A passenger cab unit
  • built:Dec 1953, EMD #19012
  • series:418 produced, 17 for Southern
  • engine:(2) EMD 567B (12 cyls, 2250 hp)
  • notes:
  • blt Southern Railway #6914
    sublettered New Orleans & Northeastern
    reassigned to Alabama Great Southern
    to New Jersey Transit #4330
    to Tennessee Valley Railway Museum
  • builder
    tag_jump

    See also these scrapbooks for more Southern E unit coverage:

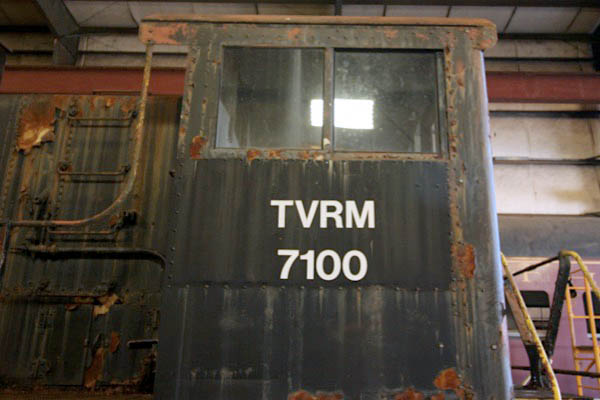

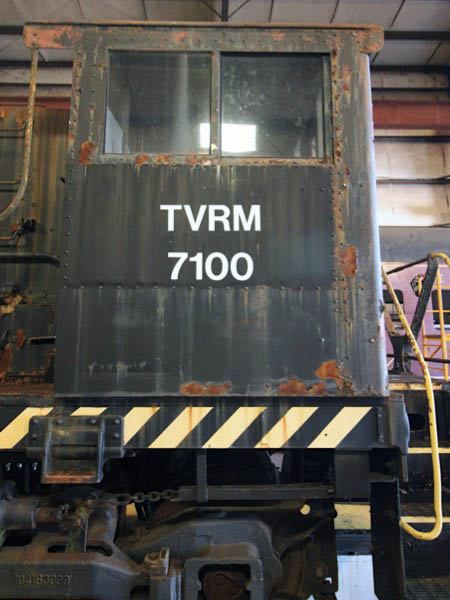

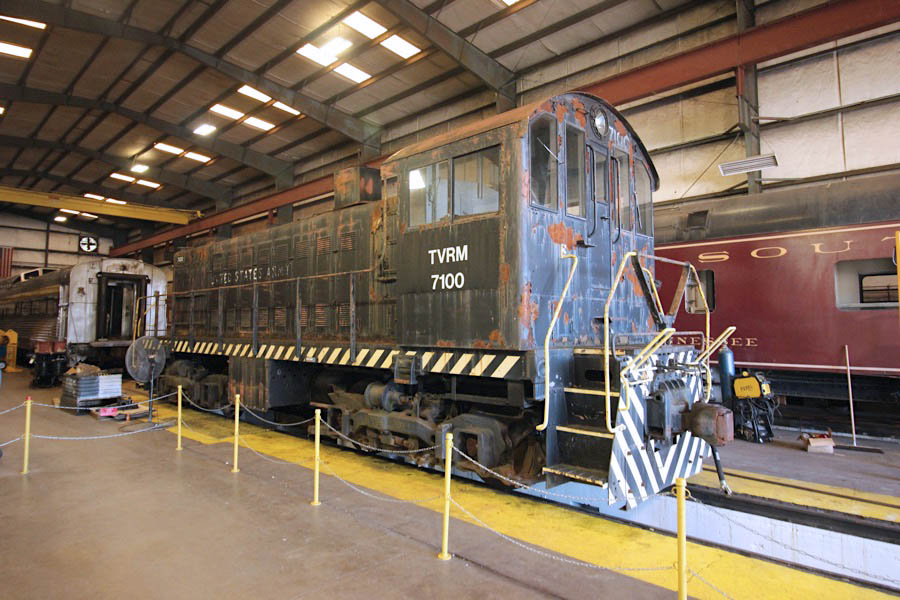

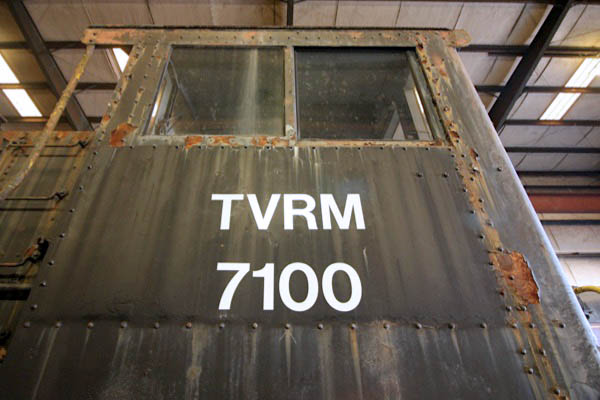

    #7100

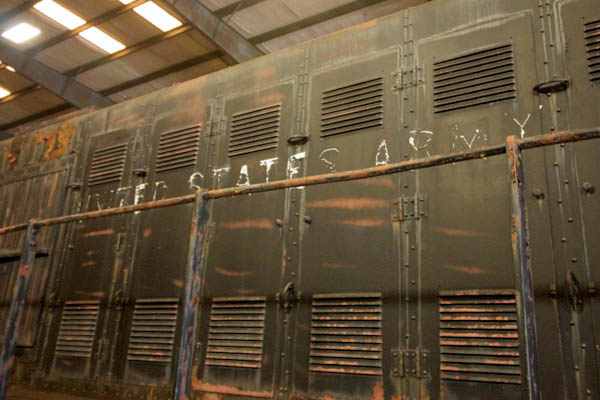

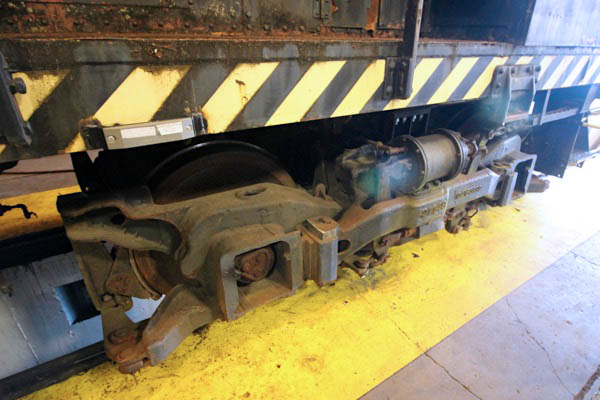

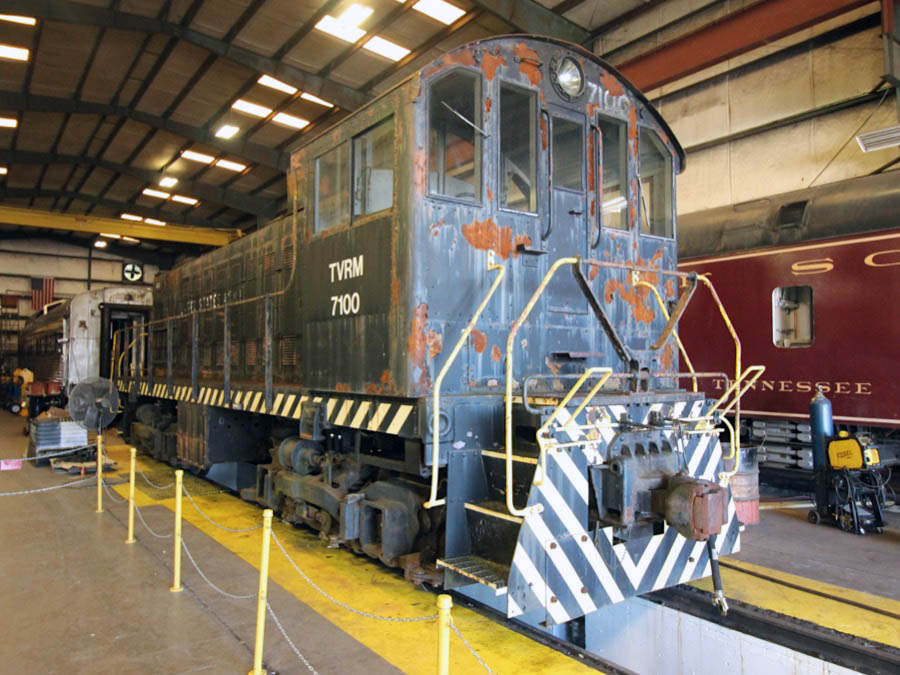

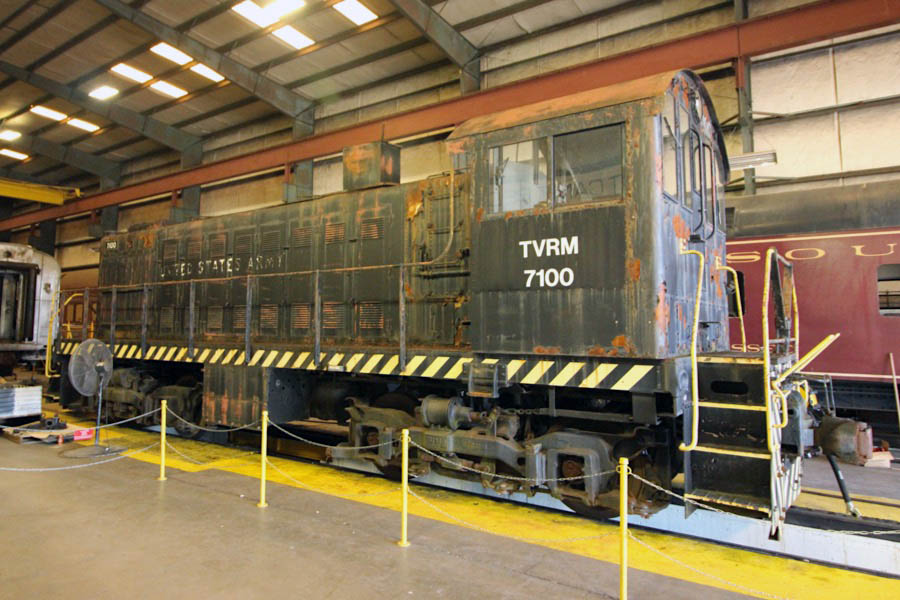

    United States Army #7100

  • builder:American Locomotive Co.
  • model:S2
  • type:B-B yard switcher
  • built:Sep 1943, Alco #70225
  • series:1502 produced 1940-50
  • engine:Alco 539T (6 cyl inline, 1000 hp)
  • notes:
  • blt United States Army #7100
    to Tennessee Valley Authority
    to Sou Appalachia Railway Museum
    to Tennessee Valley Railroad Museum
  • builder
    tag_jump

    See also our complete Southern Appalachia Railway Museum scrapbook in Preservation

    #8669

    tag_bird tag_rare

    Tennessee Valley #8669

  • builder:American Locomotive Co.
  • model:RSD1
  • type:C-C road switcher
  • built:Mar 1945, Alco #72162
  • series:150 produced 1942-46
  • engine:Alco 539T (inline 6, 1000 hp)
  • notes:
  • blt United States Army #8669
    to United States Air Force
    to Tennessee Valley Railroad Museum
    out of service, on display
  • builder
    tag_quote

    The American Locomotive Company (ALCO) built this RSD-1 in 1945 for service in the U.S. Army. Producing 1,000 horsepower, the RSD-1 differed from the RS-1 in that it had six axles, rather than the four axles of the RS-1. The 8669 served later with the U.S. Air Force at Eglin Air Force base. TVRM acquired the locomotive in the late 1978. This diesel-electric locomotive is a long-time veteran of TVRM’s passenger trains hauling the Missionary Ridge Local, as well as longer excursion trains. This locomotive is currently out of service in need of electrical and mechanical work before being returned to service. The 8669 can currently be found on display at Grand Junction.

    Tennessee Valley Railroad Museum

    tvrm8669g1 tvrm8669g2 tvrm8669g4 tvrm8669g5 tvrm8669g6 tvrm8669g3

    Jun 2019 / RWH

    #8677

    Tennessee Valley #8677

  • builder:American Locomotive Co.
  • model:RSD1
  • type:C-C road switcher
  • built:Mar 1945, Alco #72170
  • series:150 produced 1942-46
  • engine:Alco 539T (inline 6, 1000 hp)
  • notes:
  • blt United States Army #8677
    to Tennessee Valley Railroad Museum
    out of service, storage
  • builder

    Previous Locomotives

    Georgia #1026

  • builder:Electro Motive Division
  • model:GP7
  • type:B-B road switcher
  • built:Oct 1950, EMD #12001
  • series:2729 produced 1949-54
  • engine:EMD 567B (16 cyl, 1500 hp)
  • notes:
  • blt Georgia Railroad #1026
    to Wiregrass Central #1026
    to Hartford & Slocumb #1026
    to Tennessee Valley RR Museum
    to Southeastern Railway Museum
  • builder

    Louisville & Nashville #1616

  • builder:General Electric
  • model:U25B
  • type:B-B road switcher
  • built:Jul 1964, GE #35133
  • series:478 produced 1959-66
  • engine:GE FDL-16 (16 cyl, 2500 hp)
  • notes:
  • blt Louisville & Nashville #1616
    1 of 27 ordered new by L&N
    to Seaboard System #1616
    to CSX Transportation #3416
    to Tennessee Valley Railroad Museum
    to Sou Appalachian Railway Museum
  • builder

    tag_lantern back to top
    This page was updated on 2021-09-14
