Louisiana, Texas & Pacific Railroad

Southern Railway #2243

sou2243i

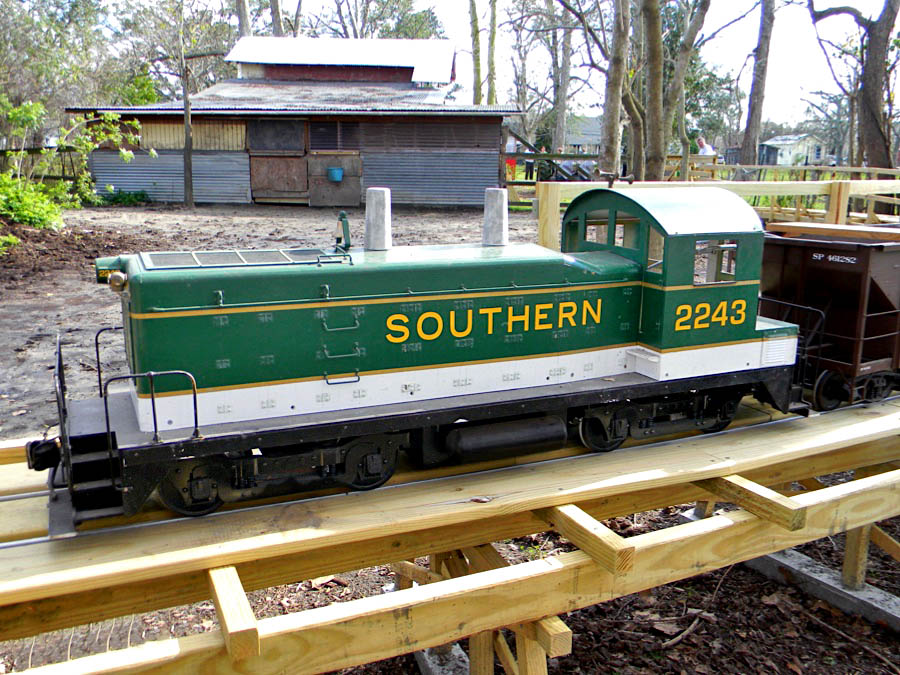

Southern Railway #2243

Marrero, La / Feb 2012 / RWH

sou2243p sou2243l

RWH

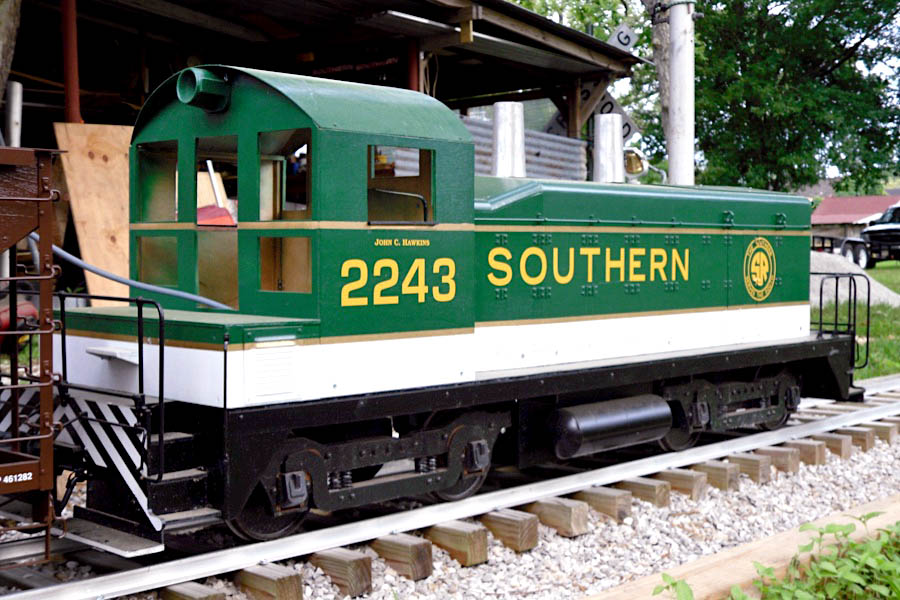

egyptian outhern Railway #2243 is modeled after the fallen flag's fleet of 68 NW-2 switchers, this one wearing the classic green/aluminum scheme. Photos in Ties magazine show the real #2243 in this scheme. The frame is scratch-built from aluminum purchased from Lowe's and the body is 1/4" birch plywood. The model also uses Real Trains trucks, bolsters and coupler pockets, Plum Cove Studios drive and control, Precision Steel Car Co. detail parts, Cannonball Ltd. couplers and bell, MDM louvers and headlights, Railway Systems stacks, and Miracle Graphics lettering. In a tip of the hat to my best and oldest train buddy, the loco is named the John C. Hawkins, with the blessing of his family.

nw2_drawing

collection

Southern Railway #2243

Southern Railway #2243

Atlanta, Ga / Jul 1964 / George Stewart

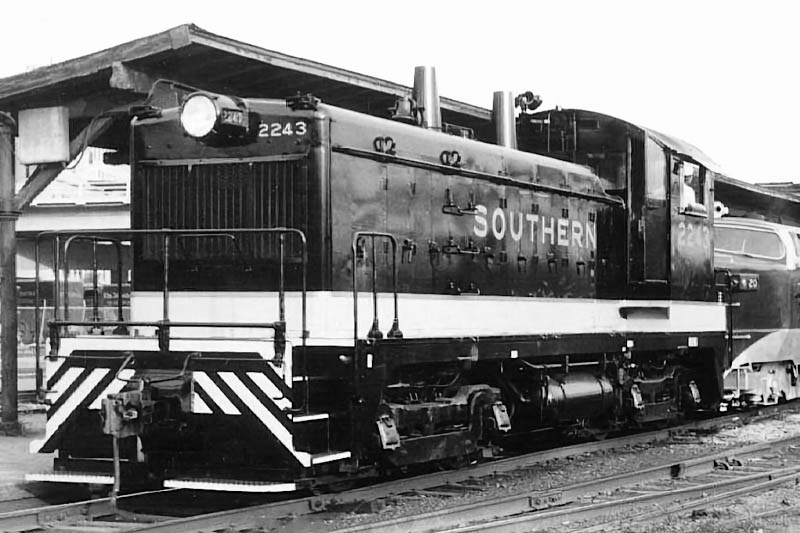

Southern Railway #2243

  • builder:Electro Motive Division
  • model:NW2
  • type:B-B yard switcher
  • built:Oct 1946, EMD #3654
  • series:1145 produced 1939-49
  • engine:EMD 567A (12 cyl, 1000 hp)
  • notes:
  • blt Southern Railway #2243
    to Southern Railway #1034, retired 1982
    to Birmingham Rail & Locomotive, 1983
  • builder

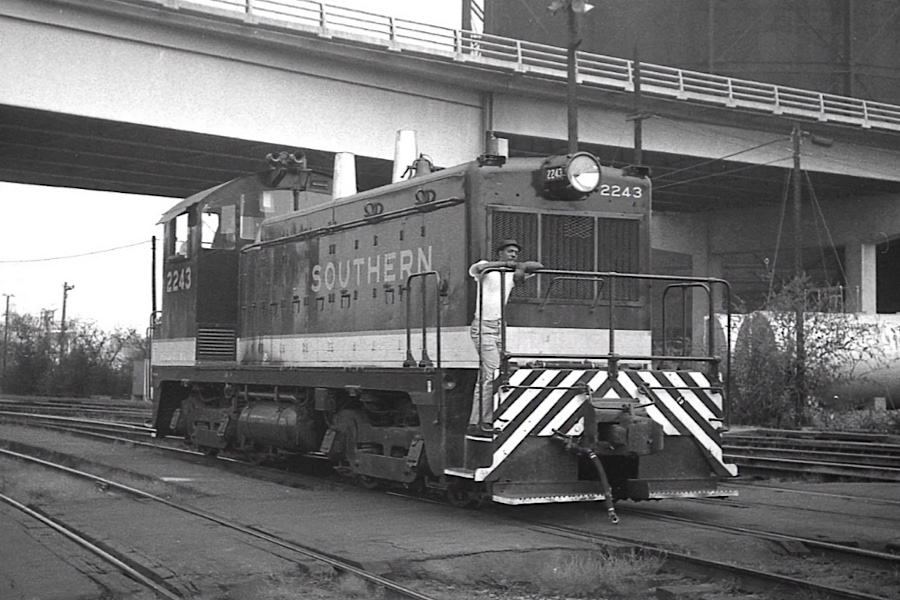

    sou2243w

    Atlanta, Ga / Aug 1966 / Ron Flanary

    sou2243x

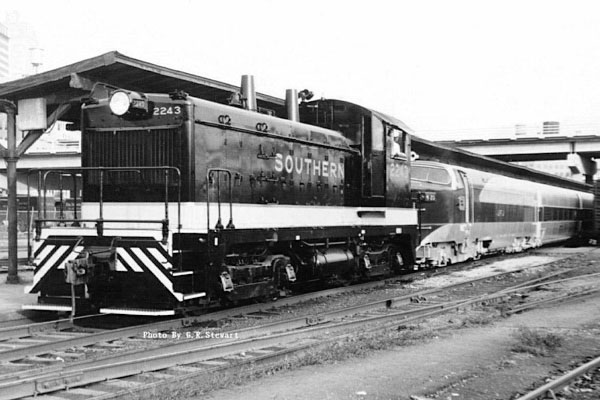

    Atlanta, Ga / Jul 1964 / George Stewart tag_rrpa

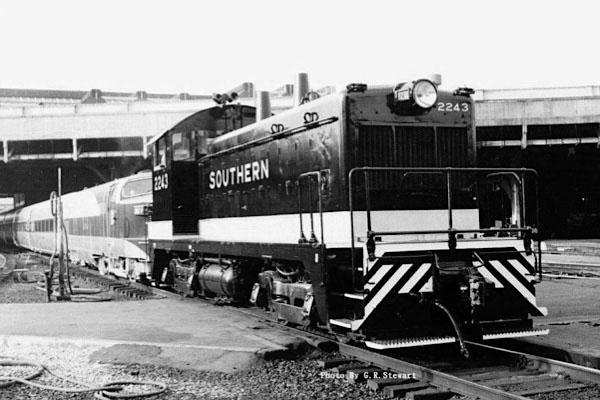

    sou2243y

    Atlanta, Ga / Jul 1964 / George Stewart tag_rrpa

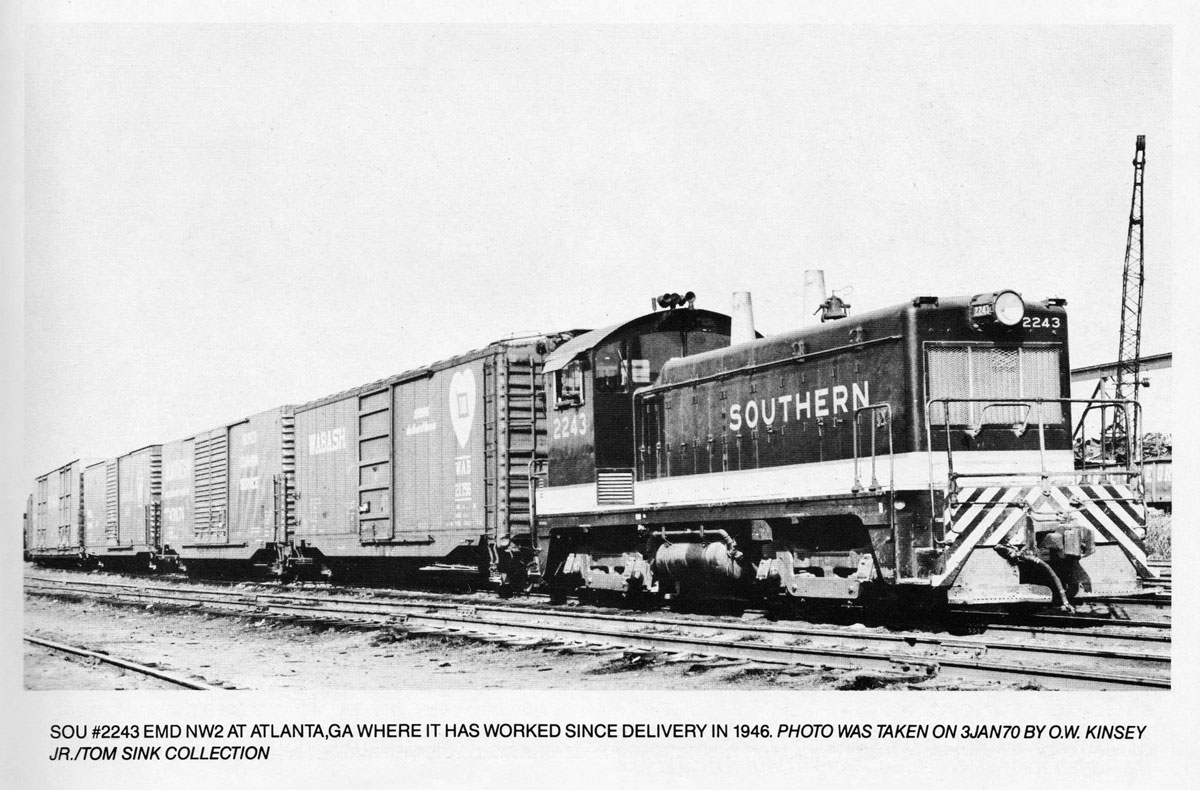

    sou2243_clipping

    from Southern: A Motive Power Pictorial - Withers and Sink / collection

    tag_jump

    See also our complete Southern Railway featured Fallen Flag scrapbook in Mainlines

    Southern Railway #2243

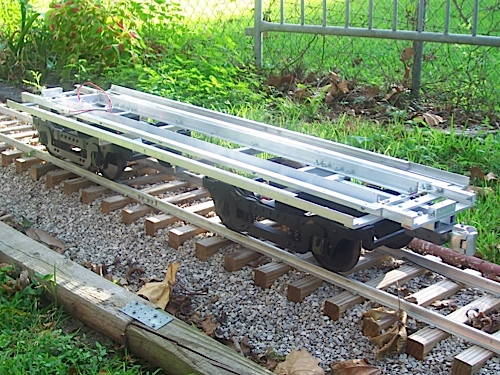

    aluminum frame on trucks

    Southern Railway #2243

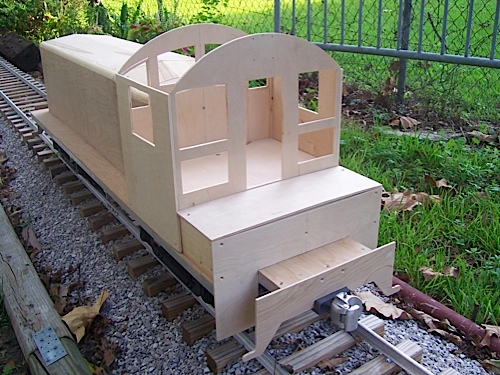

    birch plywood body

    Southern Railway #2243

    painted body before lettering

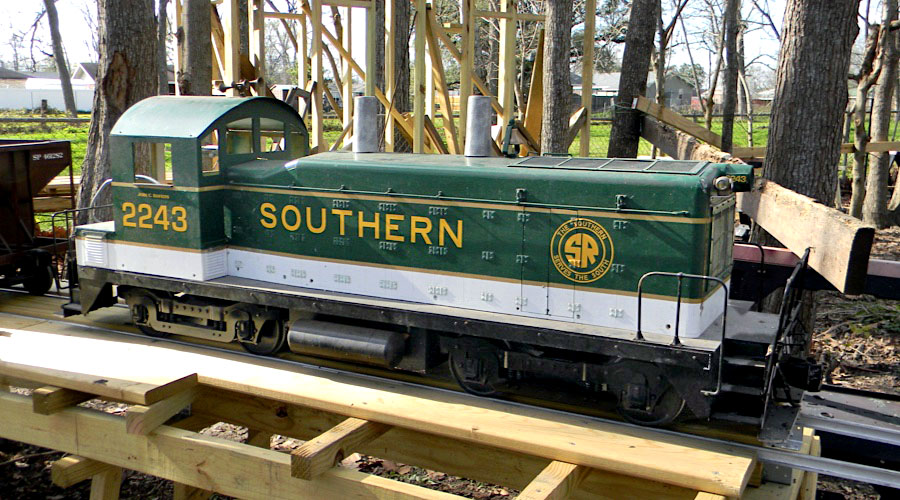

    sou2243j

    Feb 2012 / RWH

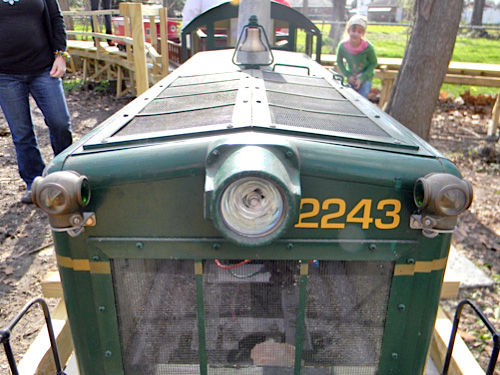

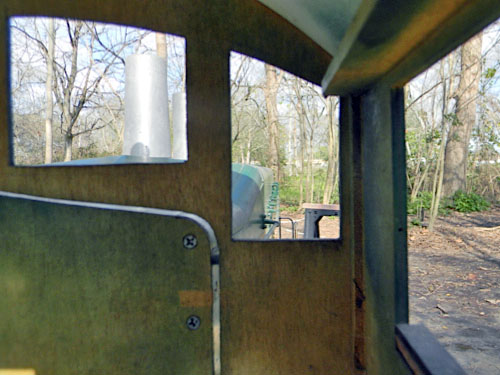

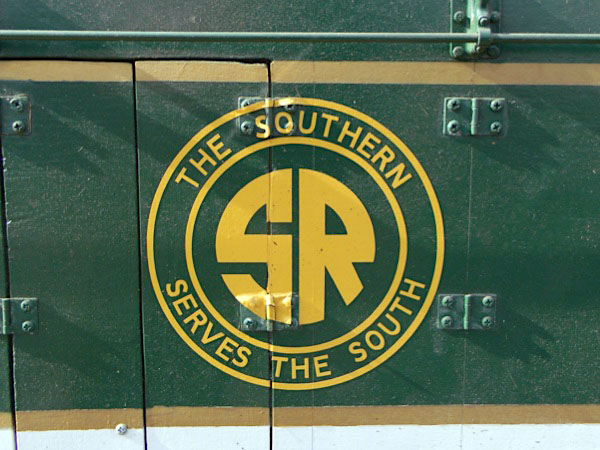

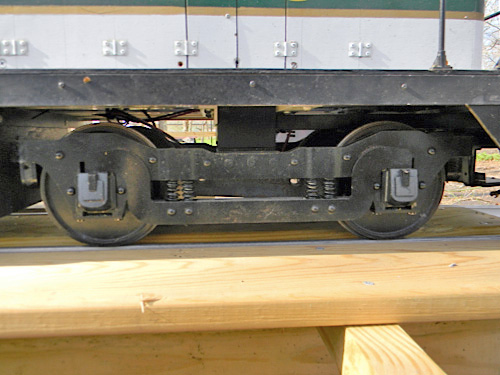

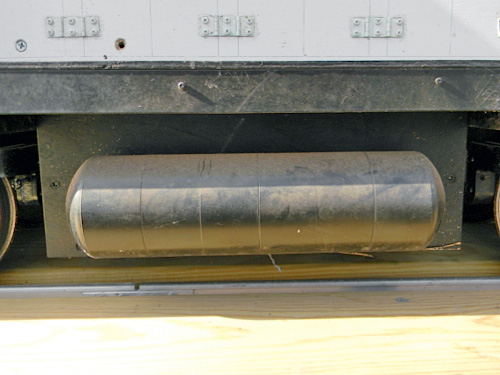

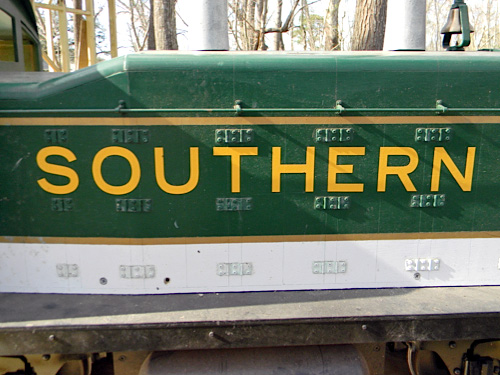

    sou2243h sou2243k sou2243m sou2243n sou2243o sou2243q

    Feb 2012 / RWH

    Southern Railway #2243

    Spring 2010

    Southern Railway #2243

    Fall 2011

    Southern Railway #2243

    Spring 2010

    Southern Railway #2243

    Feb 2012 / RWH

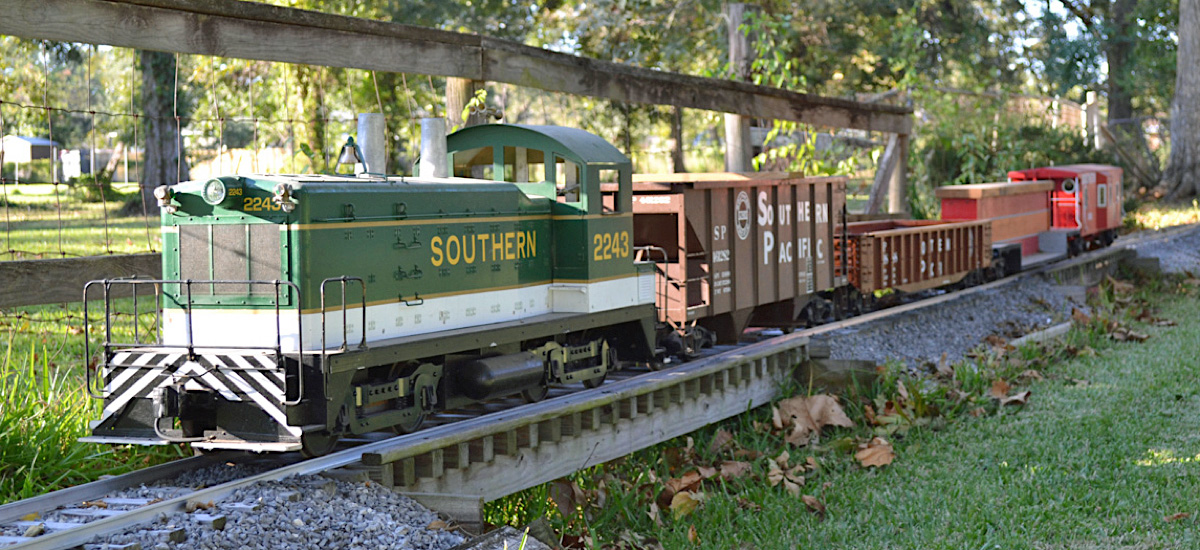

    sou2243r

    Fall 2011

    sou2243s

    Dec 2017 / RWH

    tag_snapSnapshots

    journal_rwh

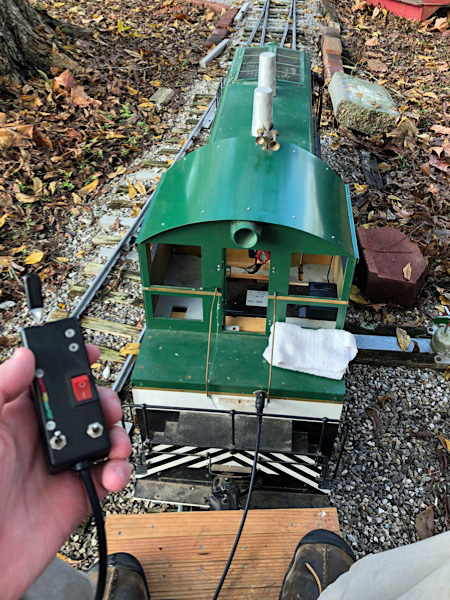

    throttle In February 2012, my family and I made a long-overdue trip to see and ride the Louisiana, Texas & Pacific - Outdoor Division. In truth, I'm glad we waited as long as we did, because by the time of our visit, Gordon had one locomotive, four cars, and one steam engine model in the works for us to operate ... not mention two-thirds of a mainline to ride. The best treat of the whole afternoon for my brother, wife, daughter, and me was to see and ride behind Gordon's handsome Southern Railway NW2 #2243, which he has sub-lettered "John C. Hawkins" in memory of our father. Dad would have loved this engine, not only because of his fondness and familiarity with the prototype, or because of the crisp gold letters on the green body, but mostly because the unit was scratch built from bottom to top by our long-time railroad friend and LT&P president, G.Payne himself. What a great time -- riding the silver backyard rails of the LT&P behind the honorable "John C. Hawkins."

    Jack and Ralph Hawkins, brothers / Feb 2012 / ETH

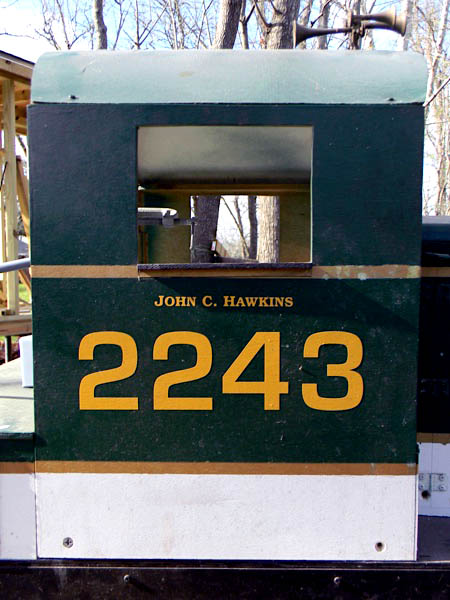

    Ella pointing to her grandfather's name / Feb 2012 / RWH

    ltp_lagn21

    Hawkins and Payne families / Feb 2012 / ETH

    Southern Railway #2243

    Feb 2012 / RWH

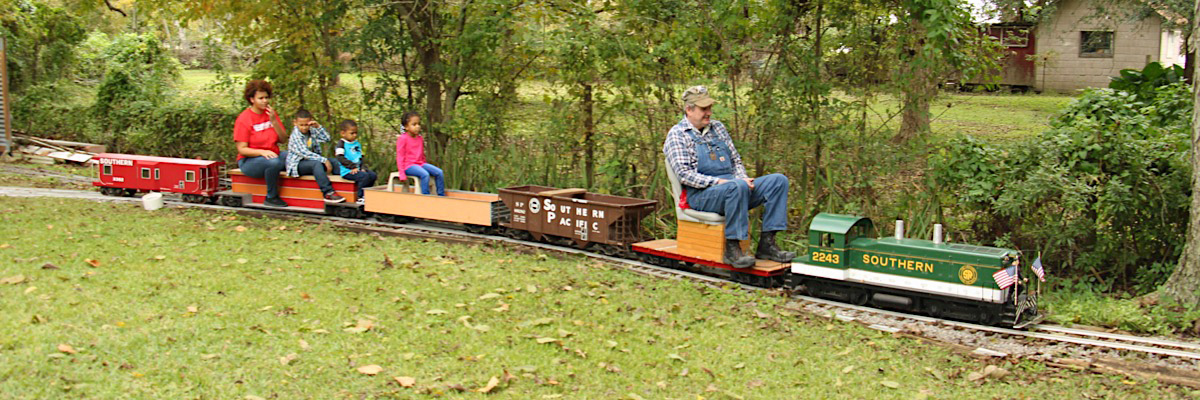

    sou2243t

    Nov 2018 / RWH

    sou2243u

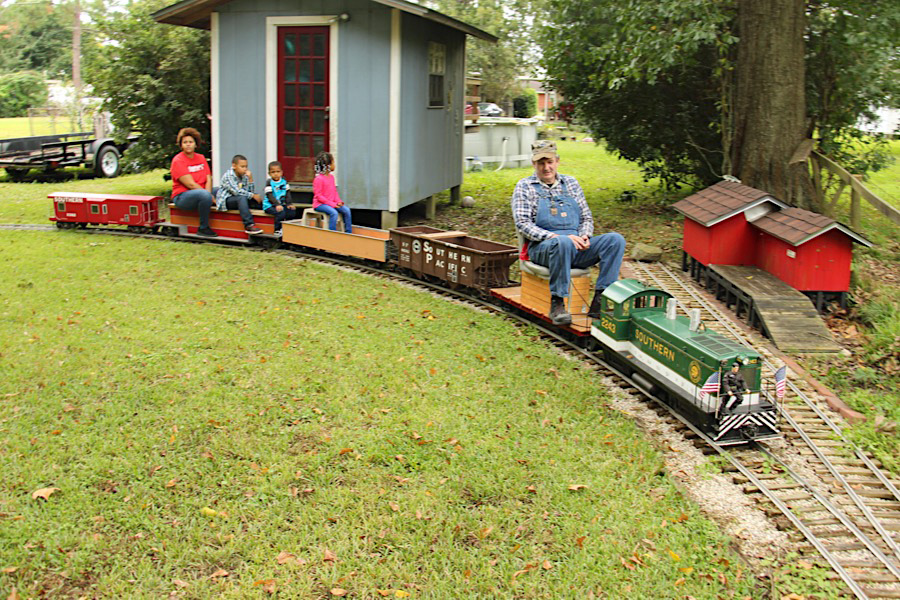

    Nov 2018 / RWH

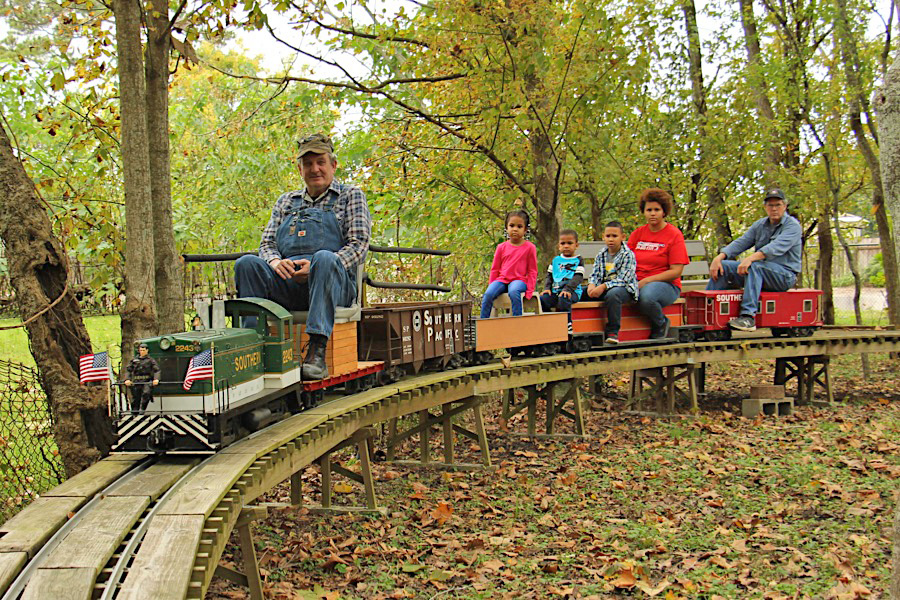

    sou2243v

    Nov 2018 / RWH
