Arkansas & Louisiana Missouri

Motive Power

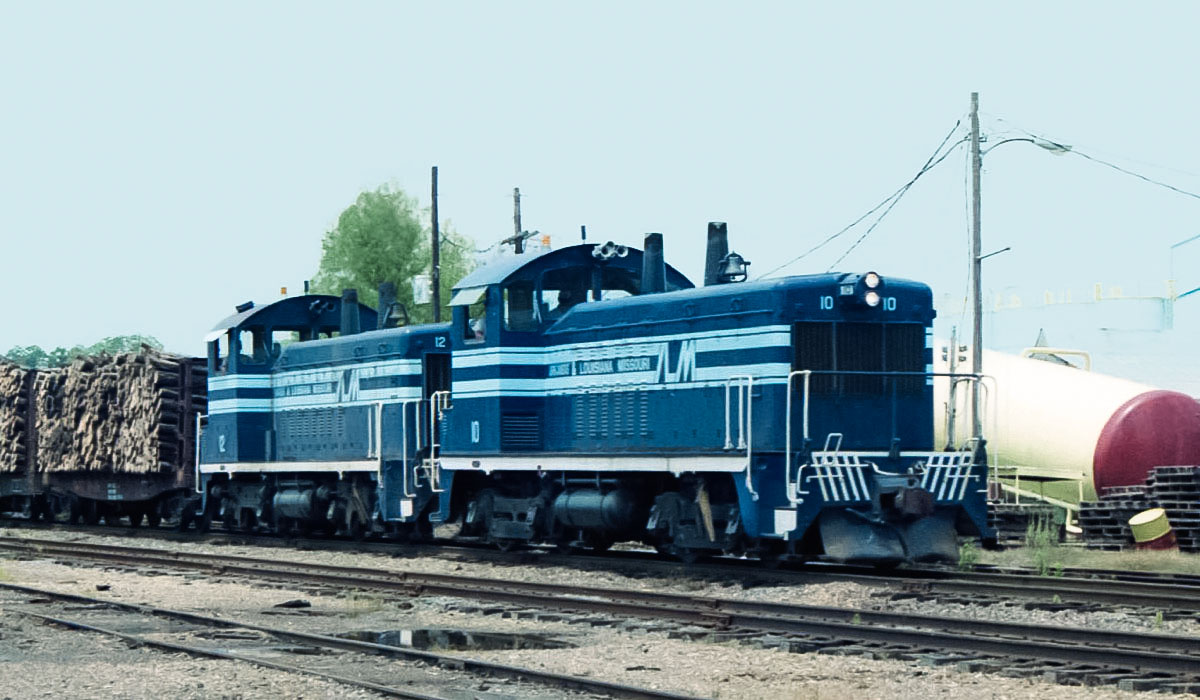

motive_leader

Monroe, La / Jul 1989 / RWH

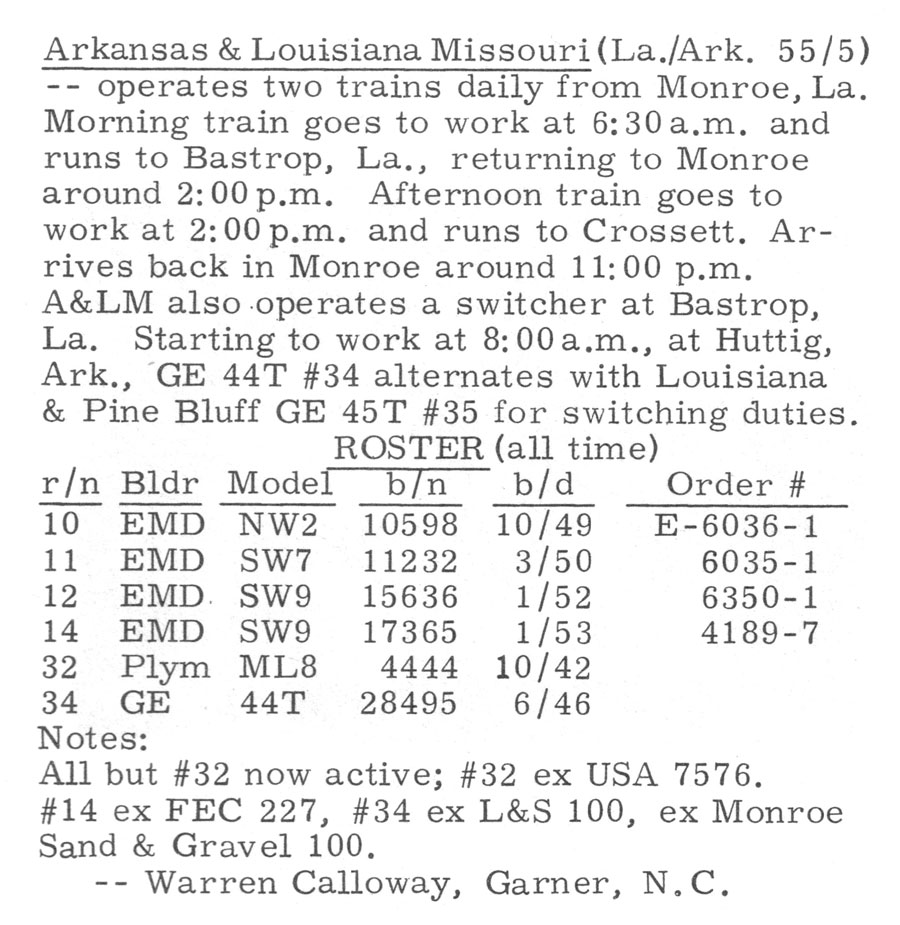

motive_clipping1972

from EXTRA 2200 South magazine - Sep 1972 / collection

Steam

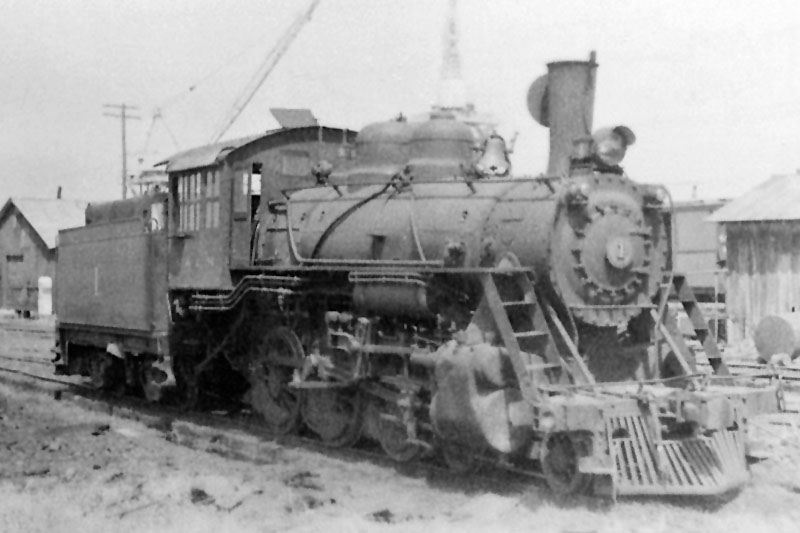

alm1_roster

Arkansas & Louisiana Missouri #1

Baldwin 4-6-0 Ten Wheeler (1920)

Huttig, Ar / Oct 1957 / collection

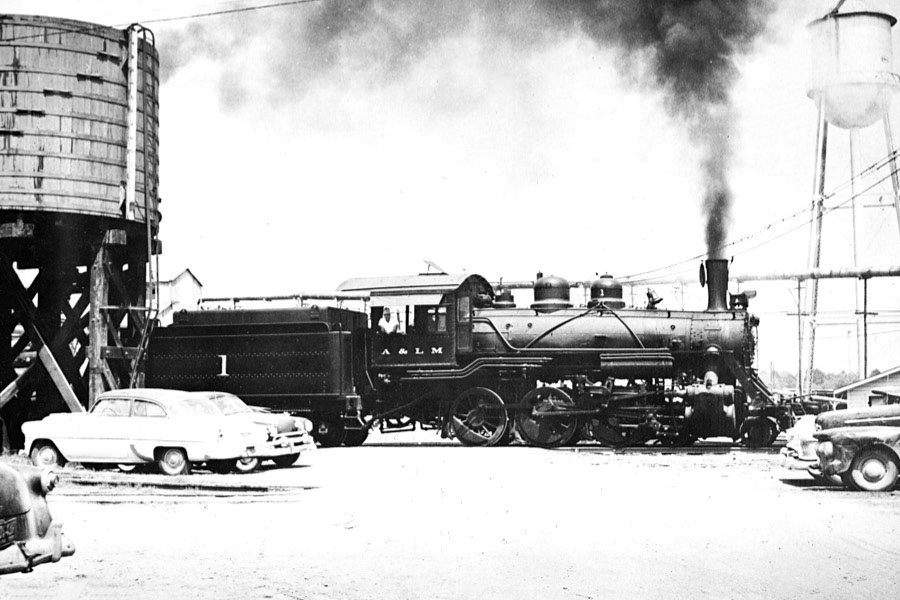

alm1_clipping1

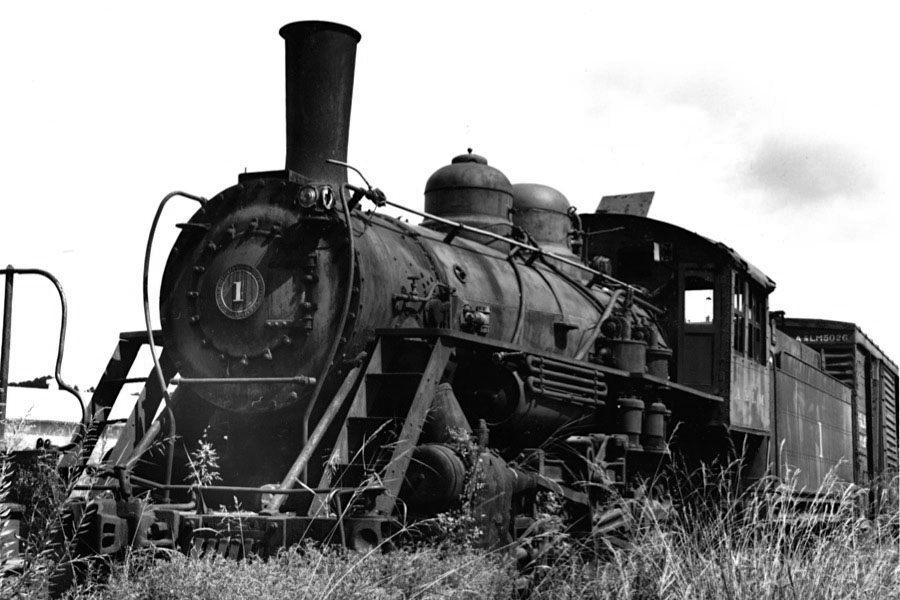

alm1_clipping2

collection

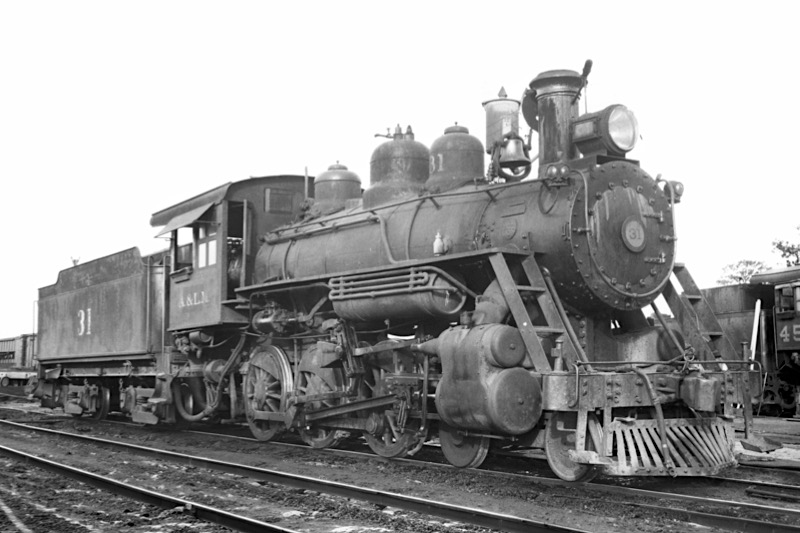

alm31_roster

Arkansas & Louisiana Missouri #31

Baldwin 4-6-0 Ten Wheeler (1920)

Monroe, La / 1950 / collection

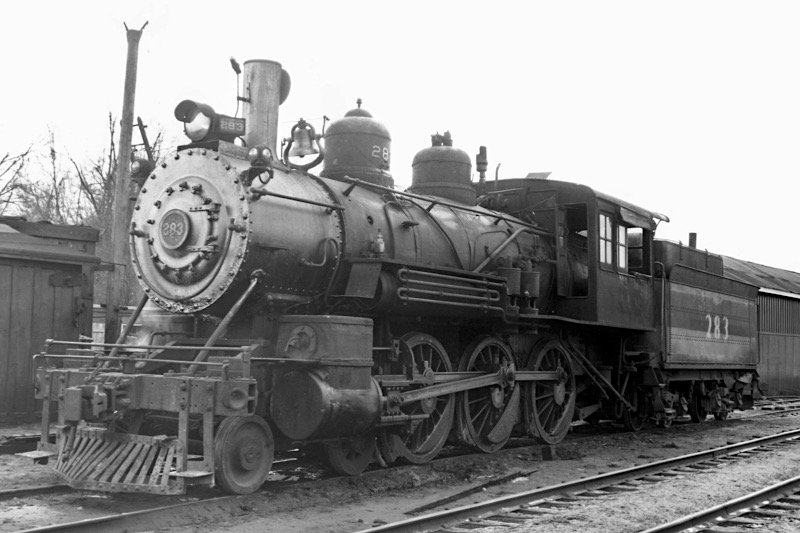

alm283_roster

Arkansas & Louisiana Midland #283

Cooke 4-6-0 Ten Wheeler (1903)

Monroe, La / 1948 / collection

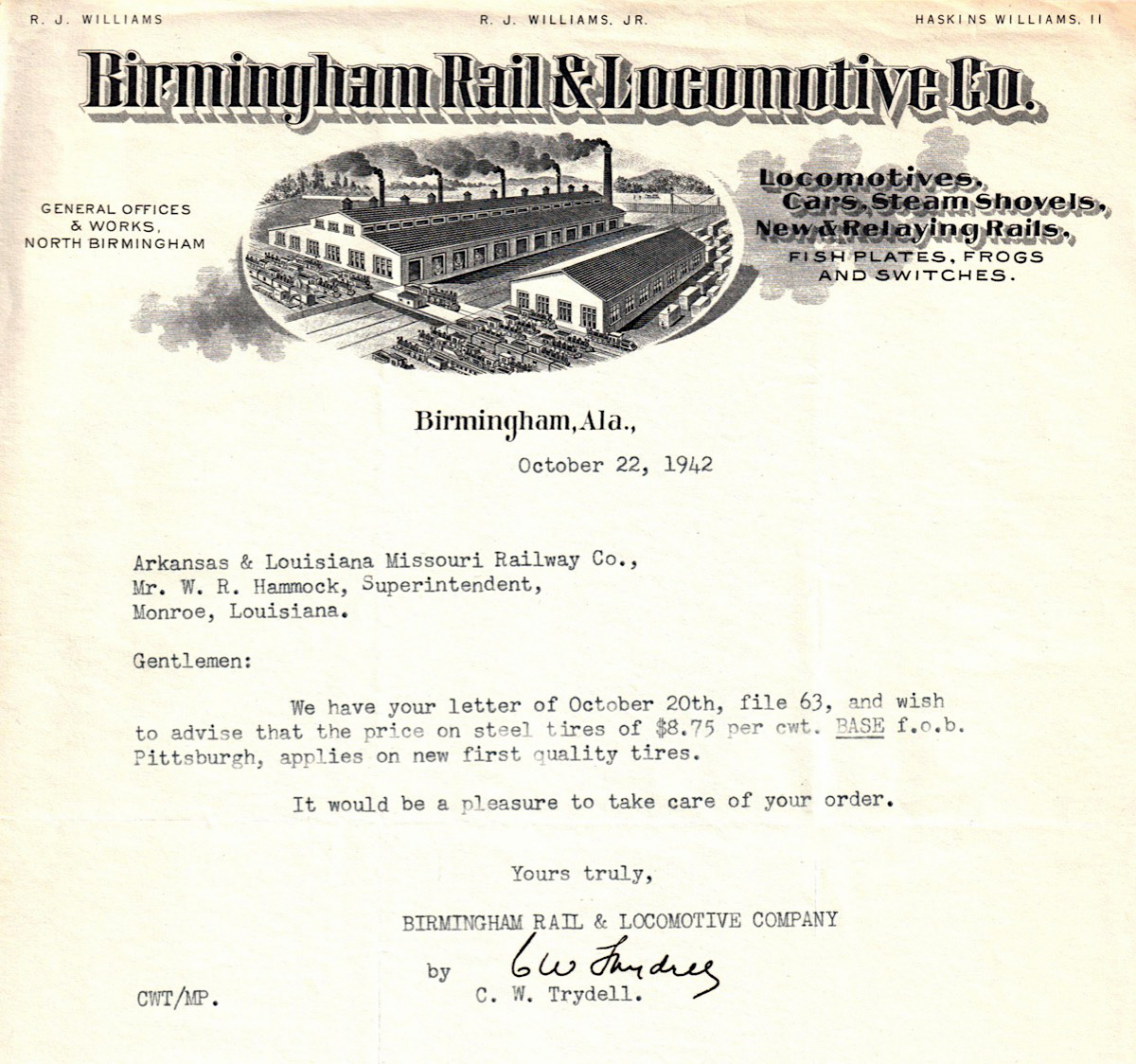

alm_letter1942

1942 correspondence / collection

Diesel-Electric

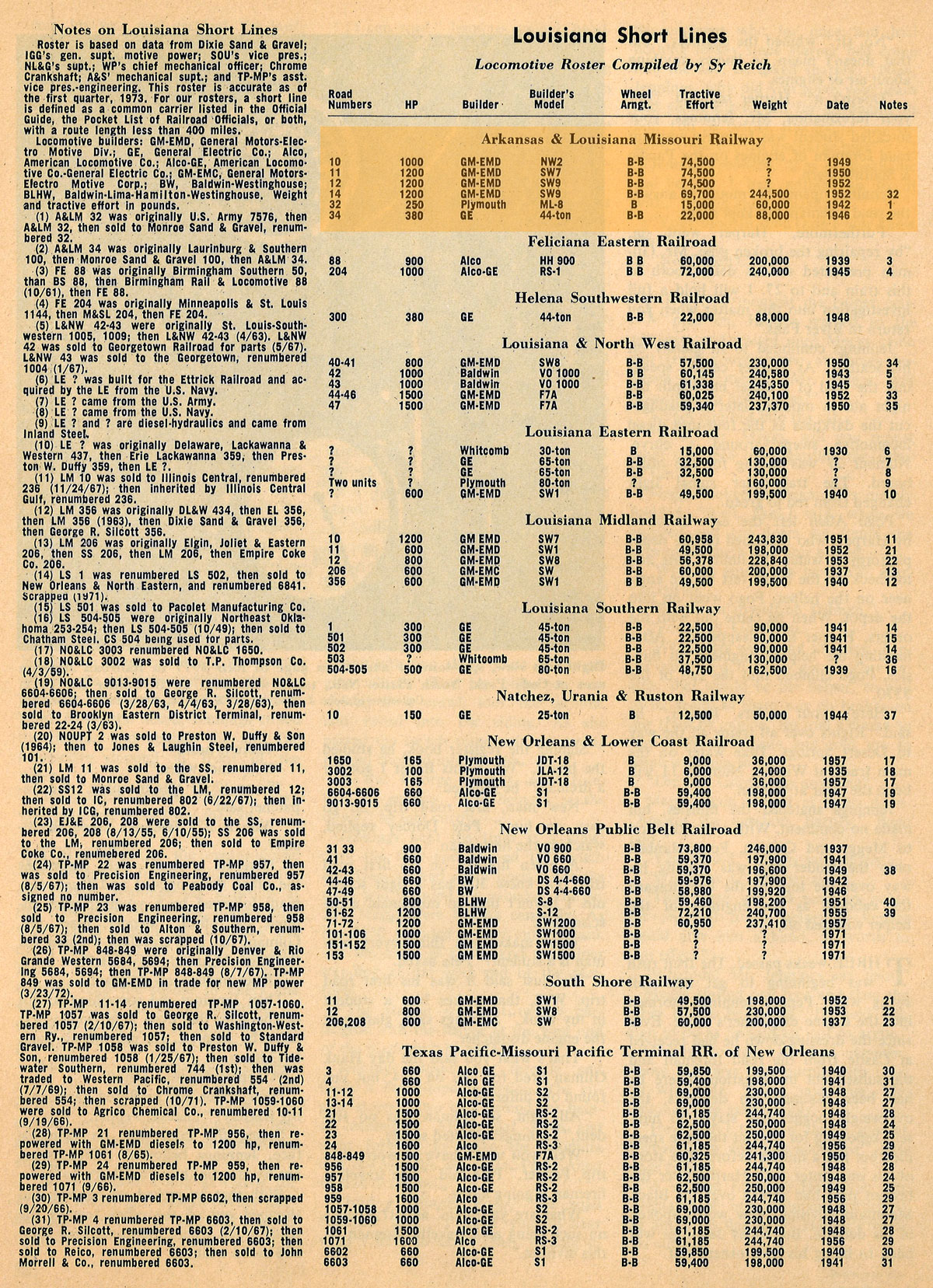

alm_roster_clipping1973

from Railroad magazine
- Sy Reich - Jul 1973 / collection

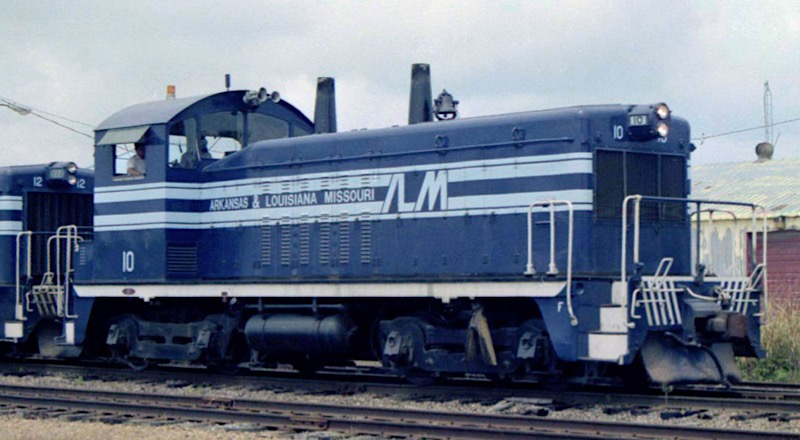

alm10_roster

Arkansas & Louisiana Missouri #10

Monroe, La / Jul 1989 / RWH

Arkansas & Louisiana Missouri #10

  • builder:Electro Motive Division
  • model:NW2
  • type:B-B yard switcher
  • built:Oct 1949, EMD #10598
  • series:1145 produced 1939-49
  • engine:EMD 567 (12 cyl, 1000 hp)
  • notes:
  • blt Arkansas & Louisiana Missouri #10
    to Arkansas Louisiana & Miss #1001
    to Georgia Pacific facilities
    to Domtar #1001
    to Mid-Continent Railway Museum
  • builder

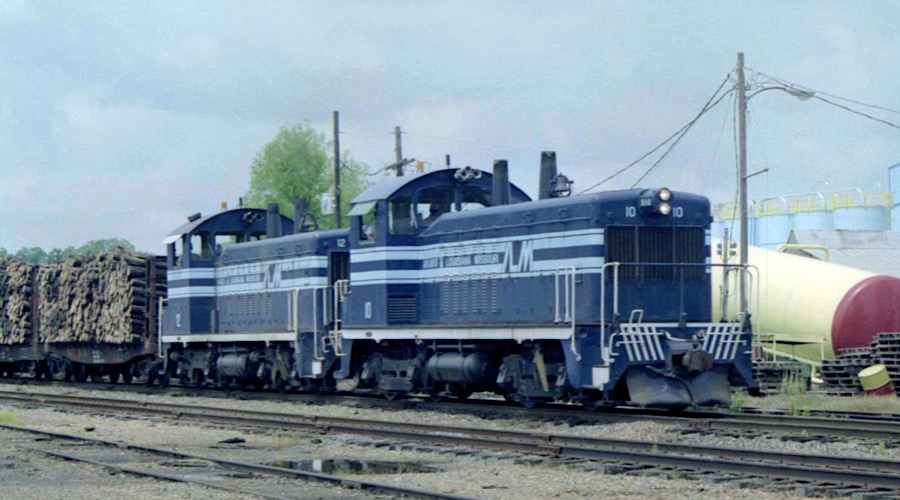

    alm10e

    Monroe, La / Jul 1989 / JCH

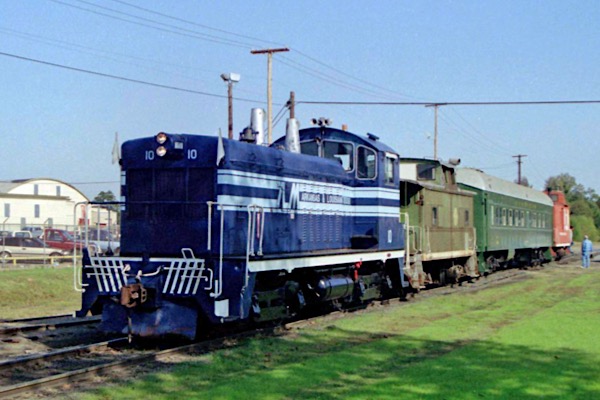

    alm10a

    Crossett, Ar / Nov 1992 / JCH

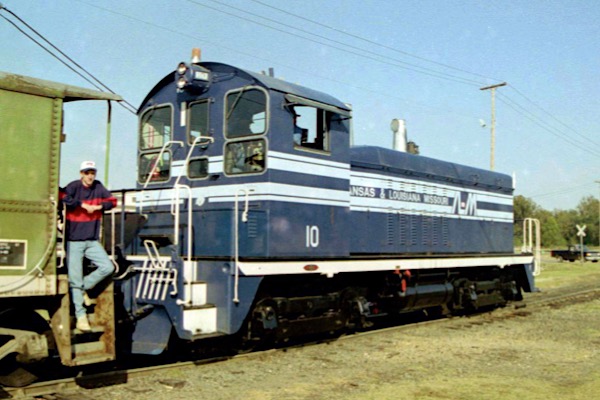

    alm10b

    North Monroe, La / Nov 1992 / JCH

    alm_banner

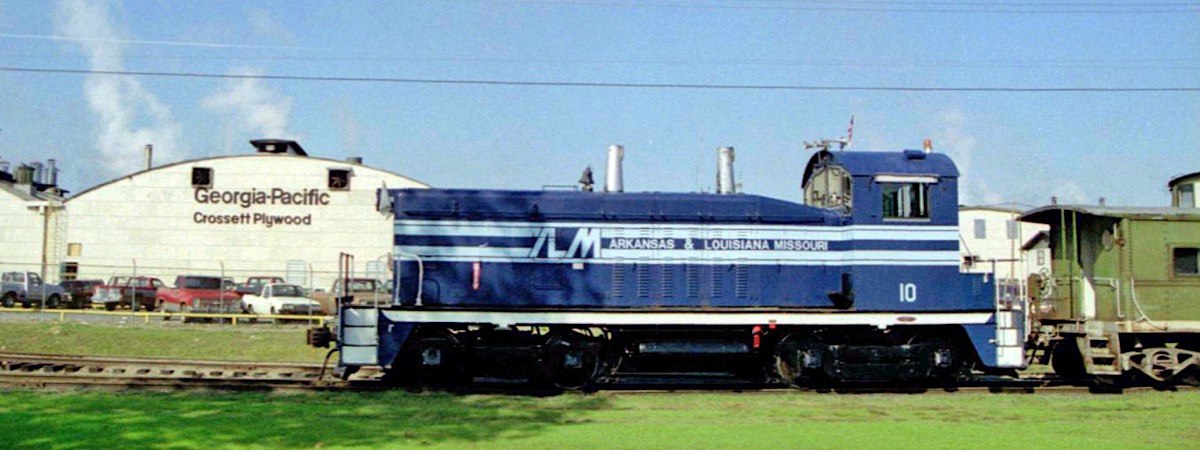

    alm10c

    Crossett, Ar / Nov 1992 / RWH

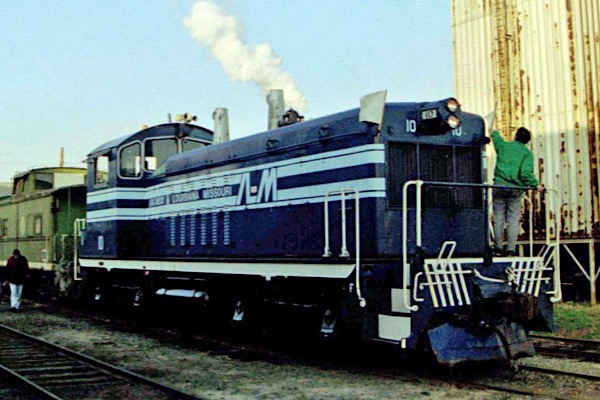

    alm10g

    Bastrop, La / Nov 1992 / JCH

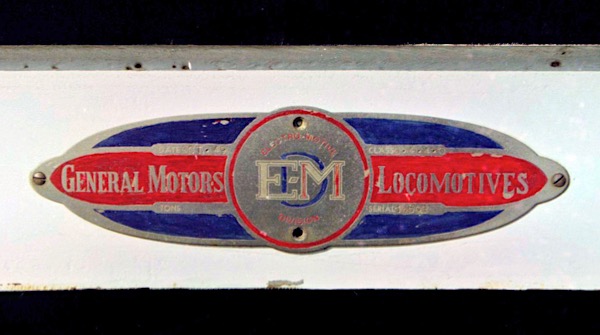

    alm10f

    Nov 1992 / RWH

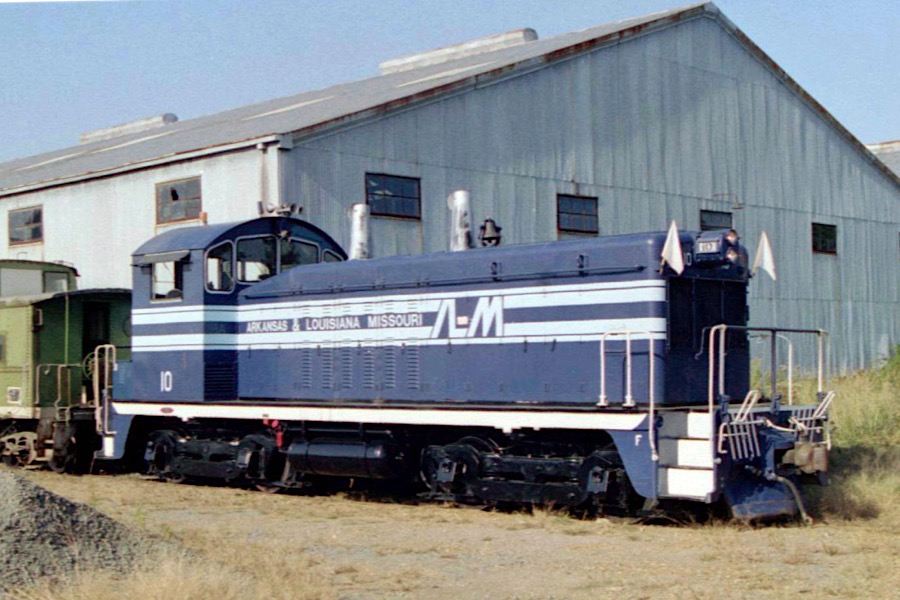

    alm10d

    North Monroe, La / Nov 1992 / JCH

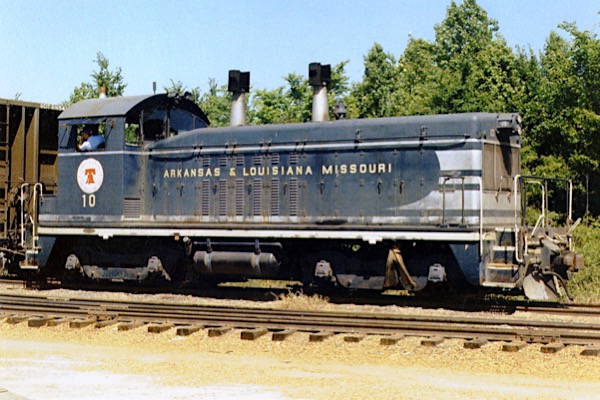

    alm10i

    Monroe, La / May 1979 / Jeff Van Cleve tag_rrpa

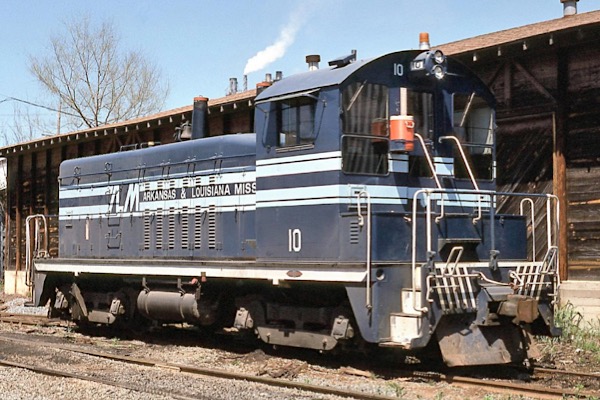

    alm10h

    Bastrop, La / Mose Crews tag_rrpa

    tag_quotes1

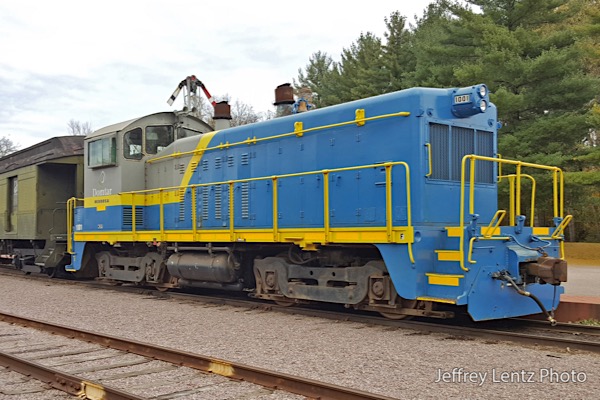

    domtar1001_inset typewriter uilt as Arkansas & Louisiana Missouri Railway #10 in October 1949 by the General Motors Electro-Motive Division (EMD), it was the sole NW2 purchased by the 53-mile shortline railroad which straddled the Louisiana-Arkansas border. The A&LM remained an independent operation until 1991 when the forestry company Georgia-Pacific purchased the railroad using a similarly-named subsidiary company, the Arkansas, Louisiana & Mississippi Railroad, or AL&M. The locomotive was numbered from #10 to #1001 in 1993.

    In January 1996, the locomotive was transferred from its home rails on the A&LM to the Georgia-Pacific-owned pulp and specialty paper mill at Nekoosa, Wisconsin. In 2001, the mill and its railroad equipment were sold by Georgia-Pacific to Canadian paper company Domtar. The #1001 retained its number during this transition.

    In March 2003 #1001 Domtar had the prime mover rebuilt, increasing the locomotive’s horsepower from 900 to 1200. Low-voltage wiring was also replaced and an AAR control stand was installed in spring 2004. Domtar continued using #1001 at their Nekoosa mill until 2017 at which time switching duties were transitioned entirely to Trackmobiles and the #1001 was listed for sale.

    A museum member donated the $40,000 purchase price plus the cost of shipping the locomotive to North Freedom via rail, allowing Mid-Continent to purchase the locomotive on July 31, 2018. The #1001 arrived at North Freedom on November 29, 2018.

    mcrm_logo Domtar gave Mid-Continent permission to keep the Domtar name and logo on the locomotive until the locomotive needs repainting, provided no changes are made to it other than adding the mandatory Mid-Continent Railway (MCRY) reporting marks.

    Brake system modifications, new batteries, and other work are required before the locomotive will be ready to pull trains at Mid-Continent. Volunteers hope to finish the work in 2026 and be able to add another operational locomotive to MCRY’s roster.

    EMD produced 1,145 of the prolific NW2s between February 1939 and December 1949. In the NW2 model designation, the “N” stands for nine-hundred horsepower, the “W” stands for welded frame, and the “2” denotes it as the second in the model line, following the NW1 model.

    The power, affordability, and durability of the 125-ton locomotive proved popular. Over 50 Class 1 railroads, plus many smaller railroads and industries purchased NW2s, leading them to be a ubiquitous sight in railyards and industries for decades.

    Mid-Continent Railway Museum

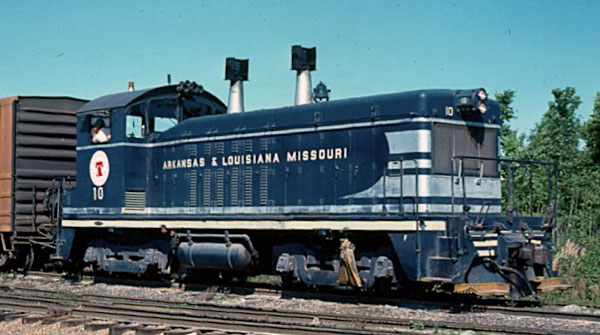

    alm10j

    Monroe, La / collection

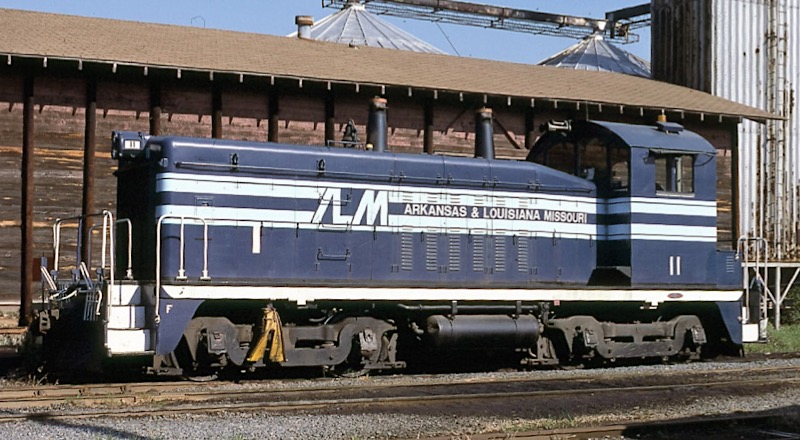

    alm11_roster

    Arkansas & Louisiana Missouri #11

    Bastrop, La / Sep 1987 / Mose Crews tag_rrpa

    Arkansas & Louisiana Missouri #11

  • builder:Electro Motive Division
  • model:SW7
  • type:B-B yard switcher
  • built:March 1950, EMD #11232
  • series:489 produced 1949-51
  • engine:EMD 567BA (12 cyl, 1200 hp)
  • notes:
  • blt Arkansas & Louisiana Missouri #11
  • builder

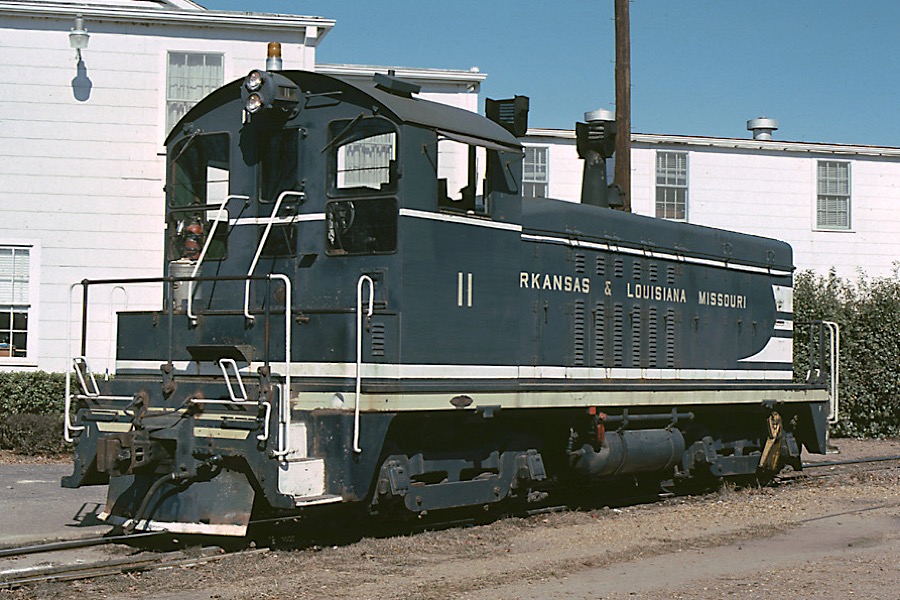

    alm11a

    Monroe, La / Feb 1977 / Michael Palmieri tag_favorite

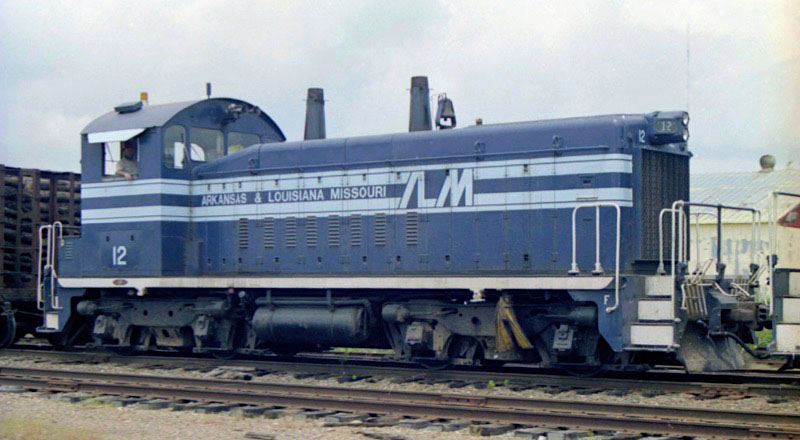

    alm12_roster

    Arkansas & Louisiana Missouri #12

    Monroe, La / Jul 1989 / RWH

    Arkansas & Louisiana Missouri #12

  • builder:Electro Motive Division
  • model:SW9
  • type:B-B yard switcher
  • built:Jan 1952, EMD #15636
  • series:786 produced 1950-53
  • engine:EMD 567B (12 cyl, 1200 hp)
  • notes:
  • blt Arkansas & Louisiana Missouri #12
    to Chattahoochee Industrial #12
  • builder

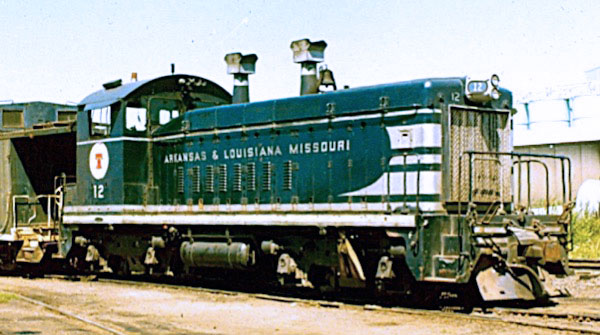

    alm12a

    Monroe, La / Jul 1985 / Stephie Kolata tag_rrpa

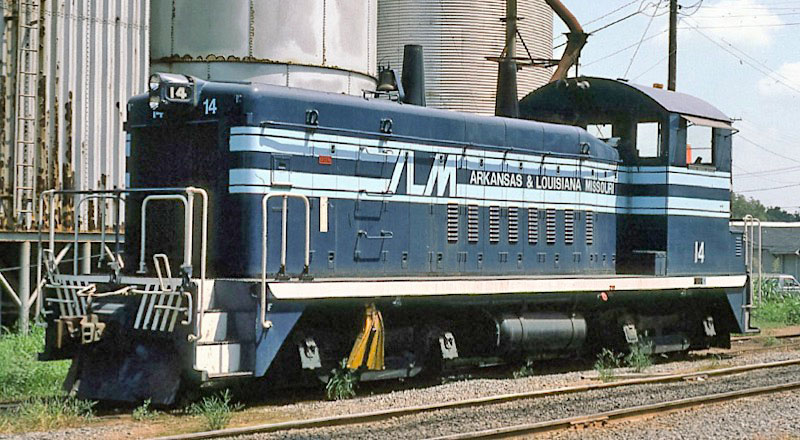

    alm14_roster

    Arkansas & Louisiana Missouri #14

    Bastrop, La / Aug 1987 / Mose Crews tag_rrpa

    Arkansas & Louisiana Missouri #14

  • builder:Electro Motive Division
  • model:SW9
  • type:B-B yard switcher
  • built:Jan 1953, EMD #17365
  • series:786 produced 1950-53
  • engine:EMD 567B (12 cyl, 1200 hp)
  • notes:
  • blt Floridia East Coast #227
    to Chattahoochee Industrial #14
    to Arkansas & Louisiana Missouri #14
    to Redmont #14
  • builder

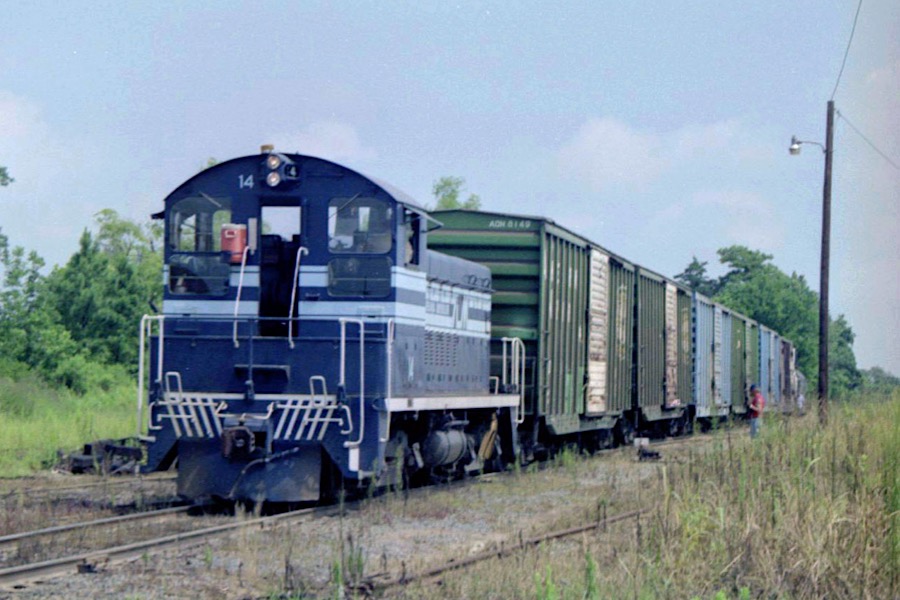

    alm14a

    Bastrop, La / Jul 1989 / RWH

    alm14c

    Bastrop, La / Jul 1989 / RWH

    alm14d

    Bastrop, La / Jul 1989 / RWH

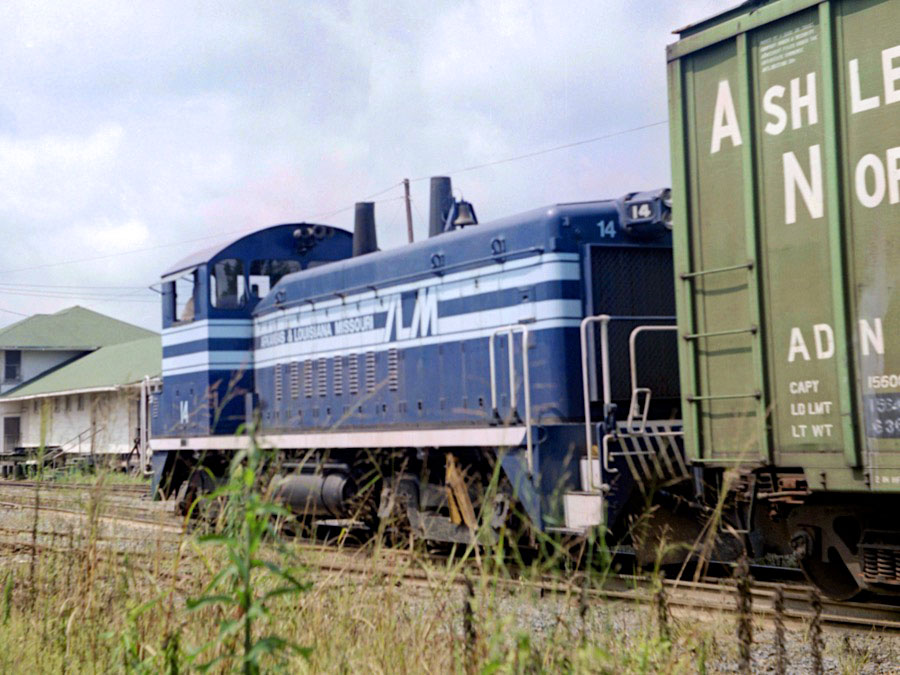

    alm14b1

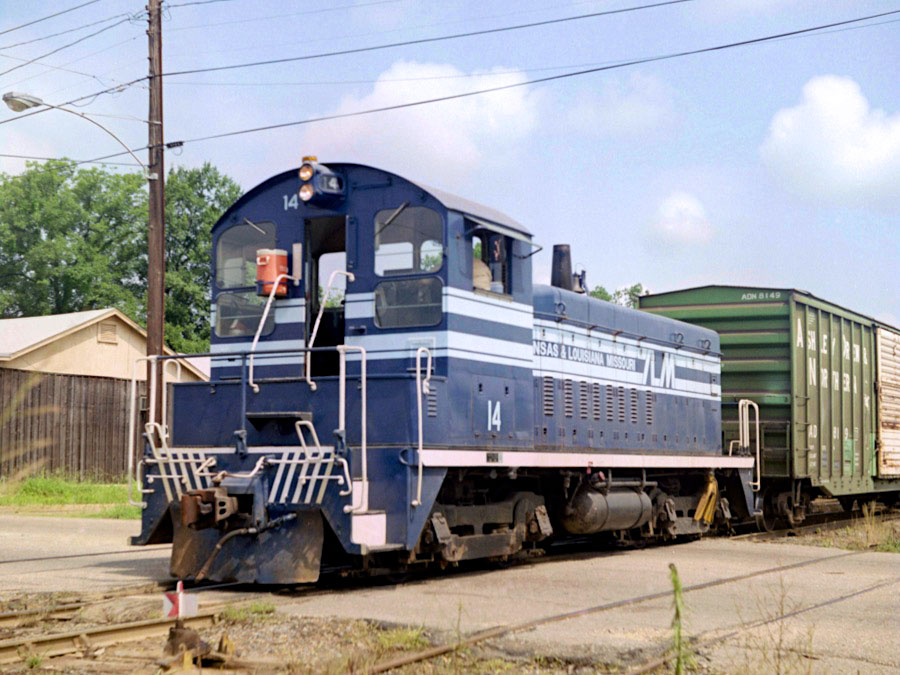

    alm14b2

    Bastrop, La / Jul 1989 / JCH

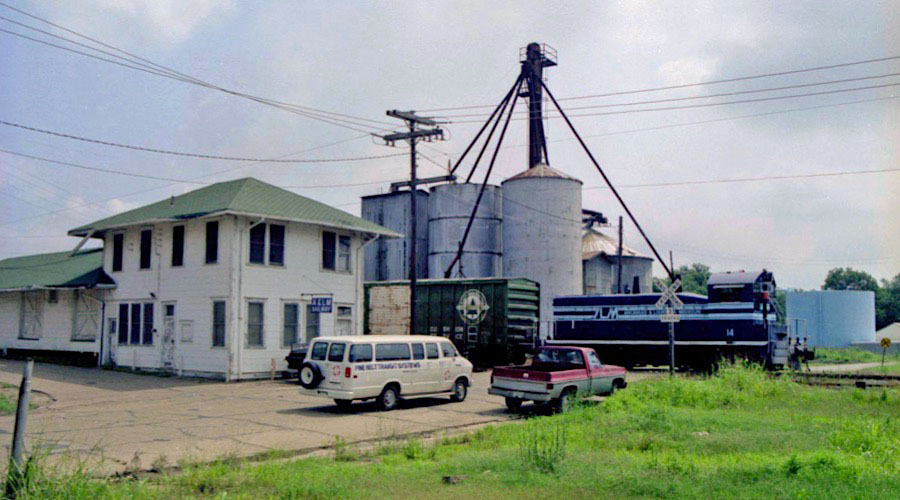

    alm14e

    Bastrop, La / Jul 1989 / RWH

    alm1017_roster

    Arkansas & Louisiana Missouri #1017

    Monroe, La / Jul 1989 / RWH

    alm1017a

    Monroe, La / Jul 1989 / JCH
