Featured Shortline
rustbelt rustbelt_route

Ashtabula, Carson & Jefferson Railroad

"The Scenic Line through Northeastern Ohio"

acjr_leader

Jefferson, Oh / Oct 2011 / RWH

tag_quotes1

staggers typewriter fter the passage of the Staggers Act, allowing railroads to abandon their unprofitable branches, local businessmen all over the state of Ohio alarmed at the prospect of loosing rail service approached the state for help. A program known as "Rails for Ohio" was developed to help keep businesses from leaving the state because their rail service was being terminated. ODOT (Ohio Department of Transportation) administered these funds which were to be used to purchase branch lines that were to be abandoned unless there was an operator interested in taking over their operation. This program is now handled by the ORDC (Ohio Rail Development Commission). The ORDC was conceived in 1994 and promotes the continuation of rail service; creates an awareness of and development of rail service within the state for both freight and passengers.

Ashtabula, Carson & Jefferson Railroad

acjr_state egyptian

ocated in the northeastern corner of Ohio, only a dozen miles from Lake Erie, the Ashtabula, Carson & Jefferson Railroad is a six mile shortline offering both freight and tourist passenger service. Chartered in 1984 by local business interests to preserve the "Jefferson Industrial Track", the AC&JR today provides bulk commodity shipping and transloading services in Jefferson, Ohio -- home of the road's office, historic depot, and at one time a tourist railroad operation. The 6 mile trackage is a surviving segment of a former Lake Shore & Michigan Southern Railway division connecting Jefferson to points north and south. Later, the line would come under the control of the New York Central, but by the late 1950s trackage south of Jefferson had been removed. Under Conrail, the line was slated for abandonment in the early 1980s, until local interests and the State of Ohio secured the property for shortline use. Tourist operations under the name Ashtabula, Carson & Jefferson Scenic Line began in 1991, but were ended in 2014. The AC&JR interchanges with the Norfolk Southern at its small Carson staging yard, just south of Interstate 90.

lsms_map

1910 Official Guide ad / collection

banner_shorttake
Ashtabula, Carson & Jefferson Railroad
  • reporting marks:ACJR
  • state:northeast Ohio
  • route:Carson Yard to Jefferson
  • trackge:6.25 miles
  • operation:1984 - present
  • headquarters:Jefferson
  • enginehouse:Jefferson
  • owner:independent
  • traffic:plastics, fertilizer, paper
  • interchange:NS @ Carson Yard
  • frequencies:160.230, 161.310
  • website:wp.acjrailroad.com
  • notes:previously operated tourist excursions until 2014
  • predecessors:
    Lake Shore & Michigan Southern
    New York Central
    Conrail
  • successors:none
  • acjr_logo
    acjr107_roster acjr7371_roster acjr2391_roster wab547_roster

    RWH

    lsms_youngstown

    1910 Official Guide timetable / collection

    acjr_guide88

    1988 Official Guide ad / collection

    acjr_guide94

    1994 Official Guide ad / collection

    herald_nyc herald_cr herald_ns3

    Motive Power

    tag_list All time Ashtabula, Carson & Jefferson locomotive roster
    Number Builder Model Built Number Notes
    107 Alco S2 Jun 1940 78016 ex Nickel Plate Road #45
    518 Alco S2 Oct 1948 76188 ex Erie Railroad #518
    547 EMD GP35 Apr 1964 29475 ex Wabash #547 > Norfolk & Western #3547
    2391 GE U23B ____ 38523 Horizon Rail lease unit
    7371 Alco S1 Apr 1941 64469 ex United States Army #7371

    units listed in orange above are featured in our scrapbook below.

    Ashtabula, Carson & Jefferson #107

    Ashtabula, Carson & Jefferson #107

    Jefferson, Oh / May 2009 / RWH

    Ashtabula, Carson & Jefferson #107

  • builder:American Locomotive Co
  • model:S-2
  • type:B-B yard switcher
  • built:Jun 1950, Alco #78016
  • series:1376 produced 1940-50
  • engine:Alco 539 (6 cyls. 1000 hp)
  • notes:
  • blt Nickel Plate #45
    to Norfolk & Western #2945
    to Fairport, Painesville & Eastern #107
    to Ashtabula, Carson & Jefferson #107
  • builder
    Ashtabula, Carson & Jefferson #107

    Jefferson, Oh / May 2009 / RWH

    Ashtabula, Carson & Jefferson #107

    Jefferson, Oh / May 2009 / RWH

    Ashtabula, Carson & Jefferson #107

    May 2009 / RWH

    May 2009 / RWH

    May 2009 / RWH

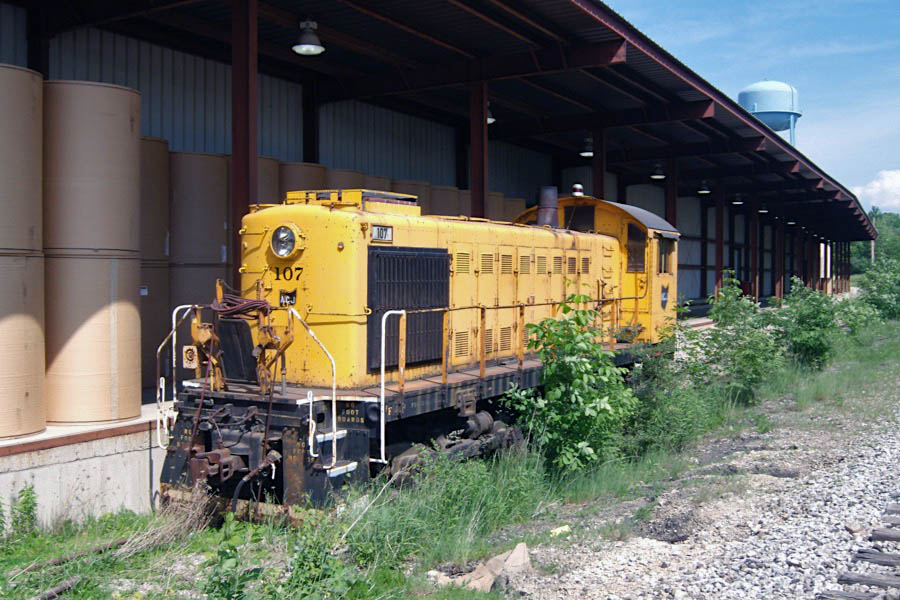

    acjr107h

    Jefferson, Oh / May 2009 / RWH

    Ashtabula, Carson & Jefferson #107

    Jefferson, Oh / Oct 2011 / RWH

    acjr7371_roster

    Ashtabula, Carson & Jefferson #7371

    Jefferson, Oh / Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7371

  • builder:American Locomotive Co
  • model:S-1
  • type:B-B yard switcher
  • built:Apr 1941, Alco #64469
  • series:535 produced 1940-50
  • engine:Alco 539 (6 cyls. 660 hp)
  • notes:
  • blt Hunkey-Conkey Construction #1002
    to United States Army #7371
    to Ashtabula, Carson & Jefferson #7371
  • builder
    Ashtabula, Carson & Jefferson #7371

    Jefferson, Oh / Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7371

    Jefferson, Oh / Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7371

    Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7371

    Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7371

    Oct 2011 / RWH

    alco_banner
    Ashtabula, Carson & Jefferson #7371

    Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7371

    Jefferson, Oh / Oct 2011 / RWH

    acjr7371c

    Jefferson, Oh / Oct 2011 / RWH

    tag_jump

    See more in our Ashtabula, Carson & Jefferson Scenic Line scrapbook in Preservation

    Ashtabula, Carson & Jefferson #518

    Ashtabula, Carson & Jefferson #518

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #518

  • builder:American Locomotive Co
  • model:S-2
  • type:B-B yard switcher
  • built:Oct 1948, Alco #76188
  • series:1376 produced 1940-50
  • engine:Alco 539 (6 cyls. 1000 hp)
  • notes:
  • blt Erie #518
    to Erie Lackawanna #518
    tp Cleveland Electric Illuminating #518
    to Ashtabula, Carson & Jefferson #518
    to French Creek Valley RR Historical
  • builder
    Ashtabula, Carson & Jefferson #518

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #518

    Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #518

    Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #518

    Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #518

    Jun 2009 / RWH

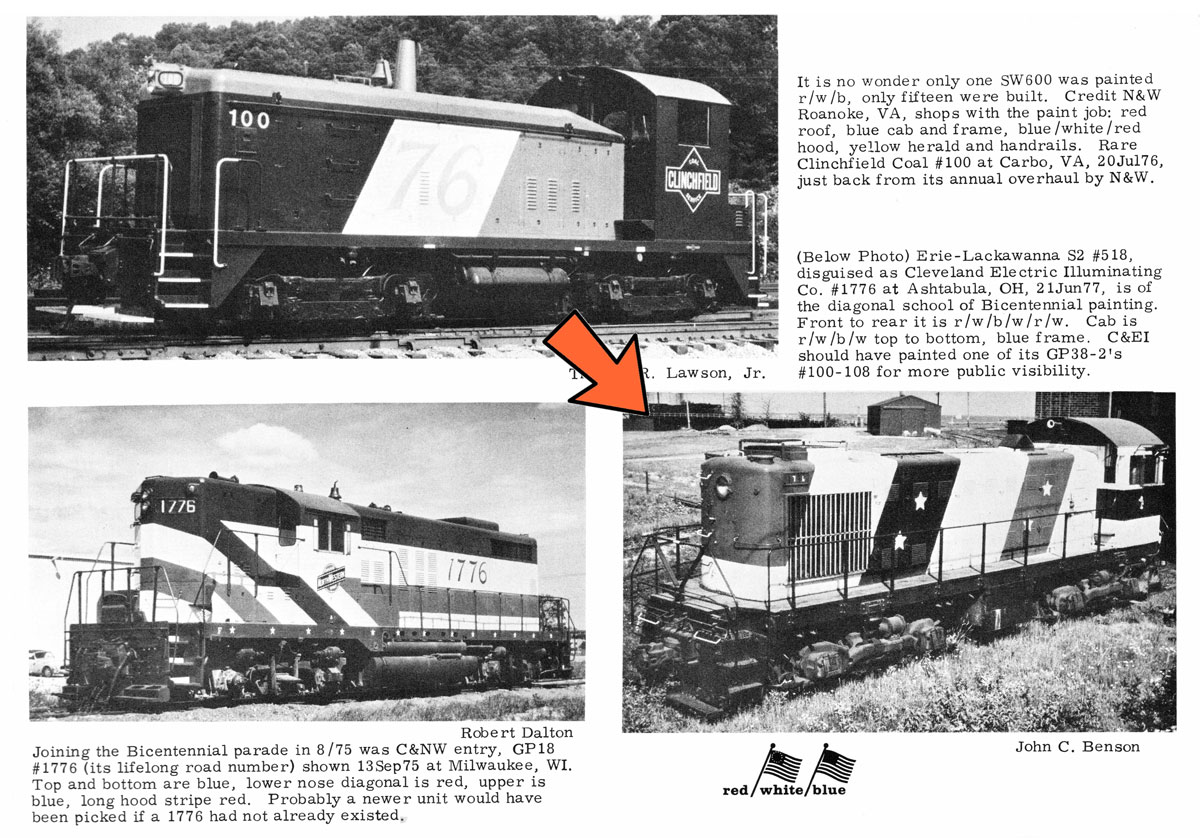

    acjr518_clipping1978

    from Extra 2200 South magazine - Jan 1978 / collection

    journal_rwh
    Summer 2009

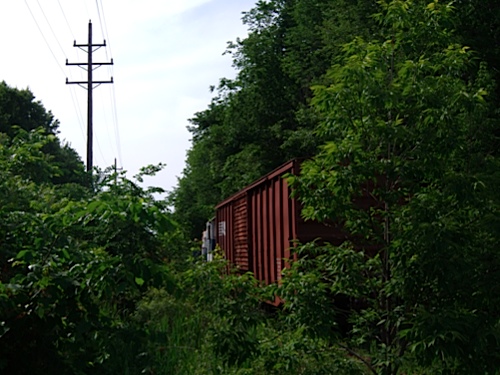

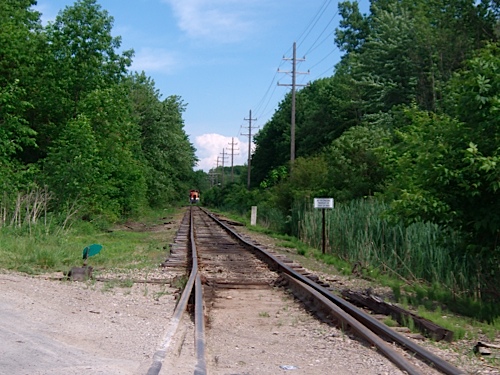

    safari1 Since moving north of the Potomac to western Pennsylvania, I've been enjoying getting to know the railroads of a region other than the Deep South I know so well. Shortlines are my game, and there are plenty to fall in love with in the states below the Great Lakes. Already the Ashtabula, Carson & Jefferson has captured my imagination, for how could anyone not love a shortline that still turns a nickel on freight, hauls tourists on the weekends, and handles both cargo with all-Alco power? My research on the little line turned up evidence of two Alco S-2's in service, but during my first visit to Jefferson to scout out the road I could only find one switcher in sight -- the 107, neatly parked under the overhang of a former loading dock. The 518 was nowhere to be found. Not a month later, my father was visiting me and one afternoon he got the itch to go riding in the car. Where to go? I knew where ... Back to Jefferson to find the "other" Alco. I searched high and low to no avail, finally deciding that the red, white, and blue unit was either locked up in the metal engine house in town or had been removed from the property before I could shoot it. Just as we were leaving town, I took one last turn down a back street to cross the tracks one last time. There she was ... tucked down at the end of the main, surrounded by woods. Inspection confirmed my hunch: Her hauling days are over. She's for parts now, much of them already gone. Quite literally, 518 has come to the end of the line.

    November 2009 update from railfan friend Nathan Clark:

    Regarding the apparent fate of AC&J ALCo S2 #518, ex-CEI, nee-EL 518, neee ERIE 518, as a fellow fan of ALCo switchers and short line RRs, Ralph, I thought you might like to now know the good news about her future! As dire as things certainly looked for her when you and your father saw her at the end of track back in June, things are not as bad as they seemed in your comments. While it is true that her hauling days are over, and she has been a supply for parts (and many of them are gone), #518 has not really come to "the end of the line". In fact, she is in the process of being moved -- in pieces -- to a new home in Meadville. There, she will be fully reassembled and cosmetically restored by the French Creek Valley Railroad Historical Society to her original Erie Railroad livery and displayed with EL bay-window caboose #C356 in the park alongside U.S. Rte. 322. Since happy endings for vintage locomotives are something for which we can be thankful, I thought the news in the attached FCVRRHS meeting minutes would be apropos for the weekend following Thanksgiving Day!

    erie518l

    Meadville, Pa / May 2016 / RWH

    erie518n

    May 2016 / RWH

    erie518k

    Meadville, Pa / May 2016 / RWH

    erie518q

    Meadville, Pa / May 2016 / RWH

    acjr2391_roster

    Ashtabula, Carson & Jefferson #2391

    Jefferson, Oh / Aug 2022 / Matt Petersen tag_rrpa

    Ashtabula, Carson & Jefferson #2391

  • builder:General Electric
  • model:U23B
  • type:B-B road switcher
  • built:GE #38523
  • series:481 produced 1968-77
  • engine:GE FDL12 (12 cyl, 2250 hp
  • notes:
  • leased from Horizon Rail
  • builder
    tag_bird tag_rare
    wab547_roster

    Wabash #547

    Jefferson, Oh / Oct 2011 / RWH

    Wabash #547

  • builder:Electro Motive Division
  • model:GP35
  • type:B-B road switcher
  • built:Apr 1964, EMD #29475
  • series:1334 produced 1963-66
  • engine:EMD 567D3A (2500 hp)
  • notes:
  • blt Wabash #547
    to Norfolk & Western #3547
    to leasing company
  • builder

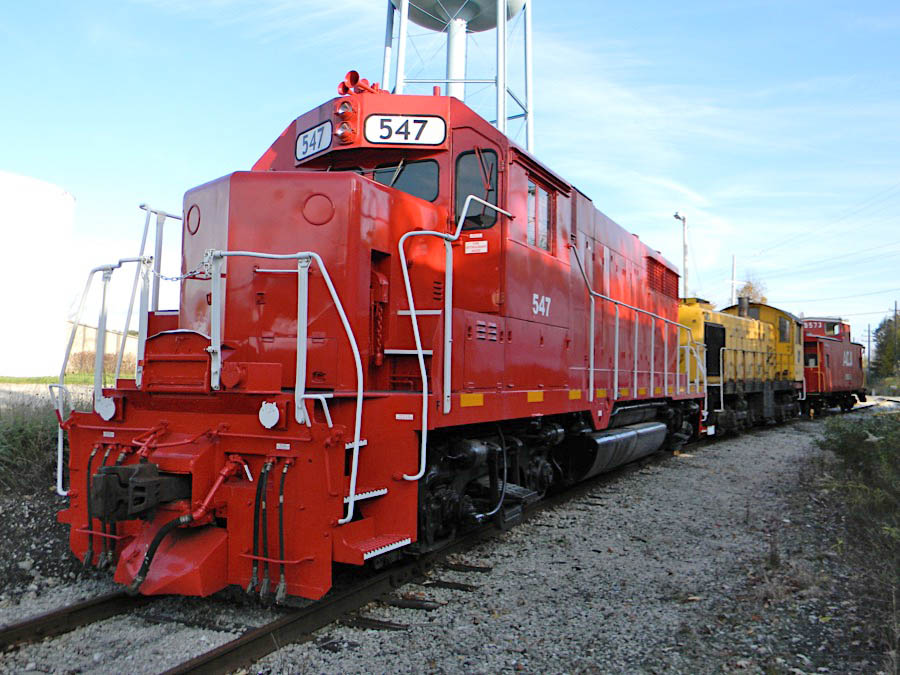

    wab547a

    Jefferson, Oh / Oct 2011 / RWH

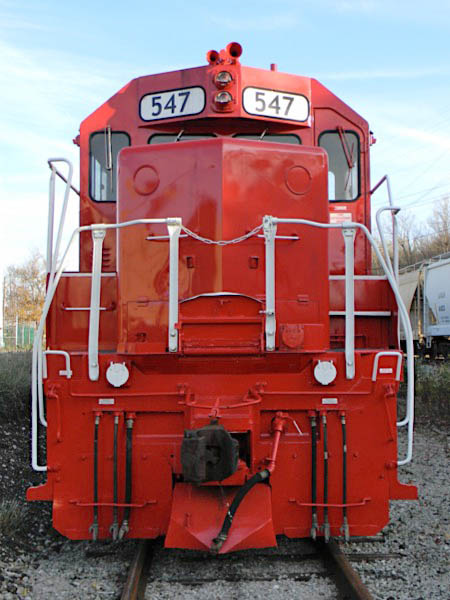

    wab547b

    Oct 2011 / RWH

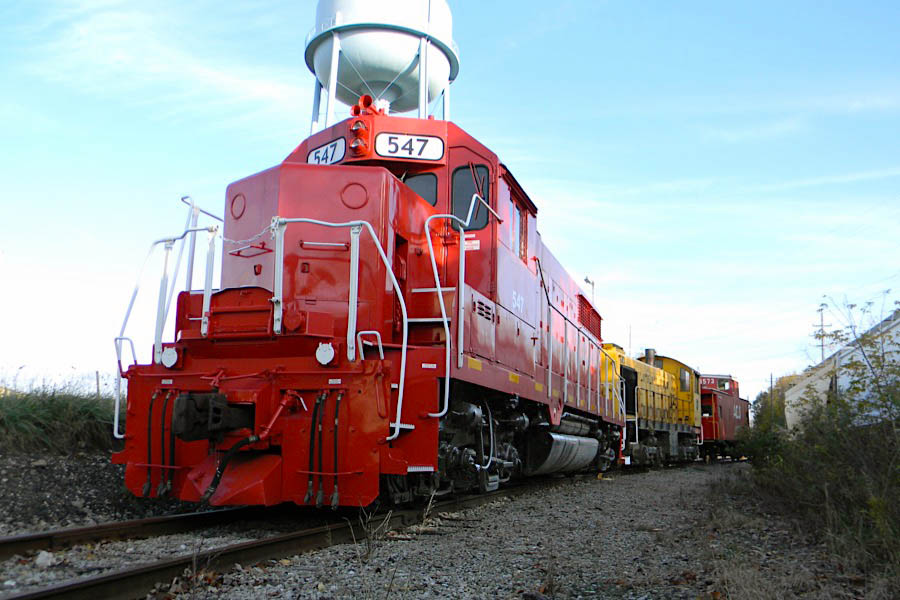

    wab547d

    Jefferson, Oh / Oct 2011 / RWH

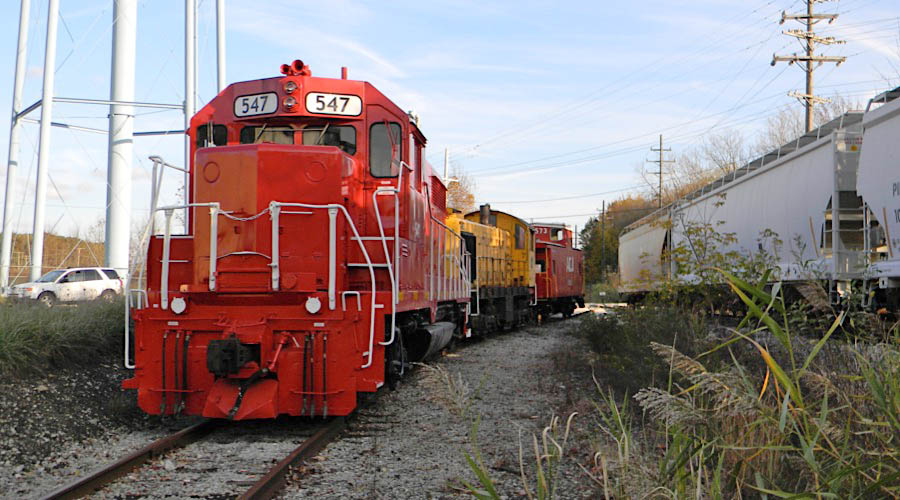

    wab547c

    Jefferson, Oh / Oct 2011 / RWH

    Rolling Stock

    Ashtabula, Carson & Jefferson #100

    Ashtabula, Carson & Jefferson #100

    open excursion car

    Jefferson, Oh / Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #201

    Ashtabula, Carson & Jefferson #201

    excursion power car

    Jefferson, Oh / Oct 2011 / RWH

    Ashtabula, Carson & Jefferson #7133

    Ashtabula, Carson & Jefferson #7133

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #7133

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #7136

    Ashtabula, Carson & Jefferson #7136

    excursion commissary car

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #1002

    Ashtabula, Carson & Jefferson #1002

    Jefferson, Oh / Jun 2009 / RWH

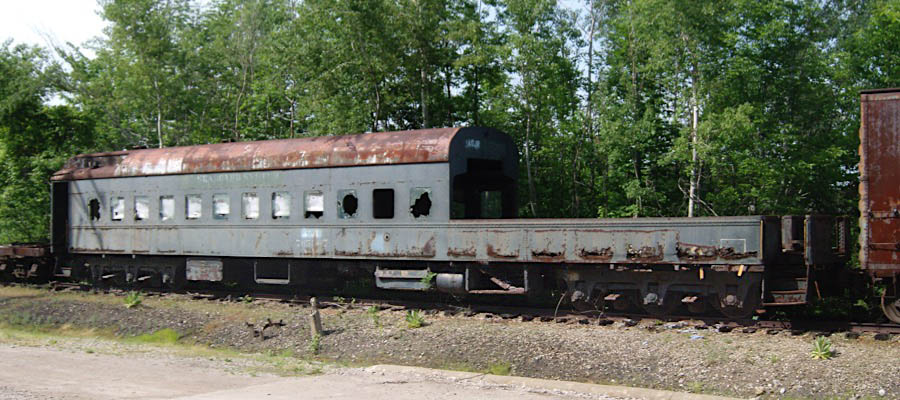

    Ashtabula, Carson & Jefferson #765367

    heavyweight sleeper converted for MOW

    Jefferson, Oh / Jun 2009 / RWH

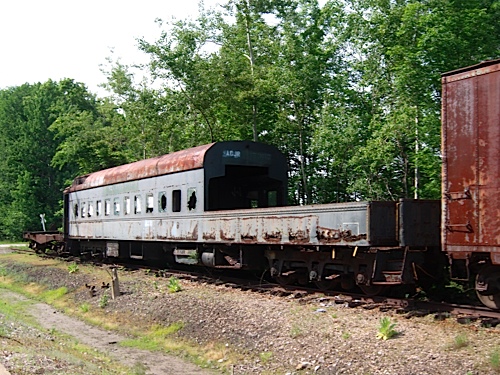

    acjr765367b

    Jefferson, Oh / May 2009 / RWH

    Ashtabula, Carson & Jefferson #

    Jefferson, Oh / Jun 2009 / RWH

    Ashtabula, Carson & Jefferson #425

    Ashtabula, Carson & Jefferson #425

    May 2009 / RWH

    Ashtabula, Carson & Jefferson #425

    Jefferson, Oh / May 2009 / RWH

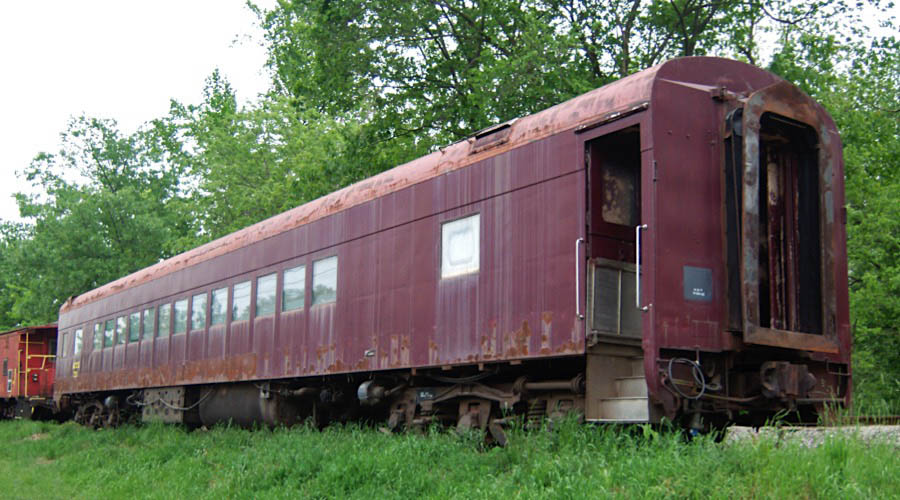

    acyx721a

    Ashtabula, Cortland & Youngstown #721

    private coach

    Jefferson, Oh / May 2009 / RWH

    Ashtabula, Cortland & Youngstown #721

    May 2009 / RWH

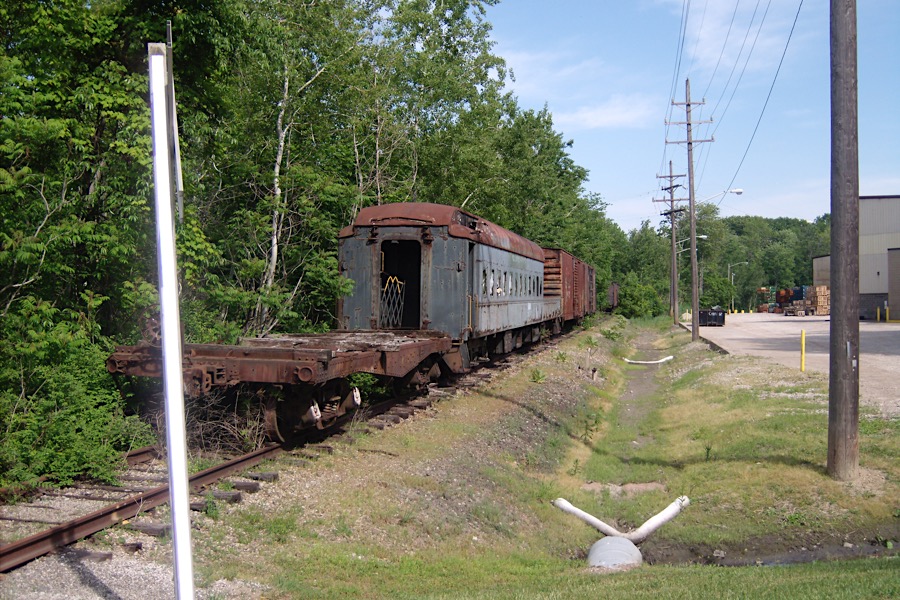

    jefferson22

    Jefferson, Oh / May 2009 / RWH

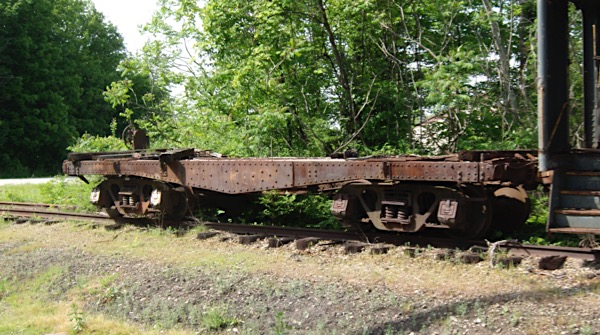

    jefferson23

    Jefferson, Oh / May 2009 / RWH

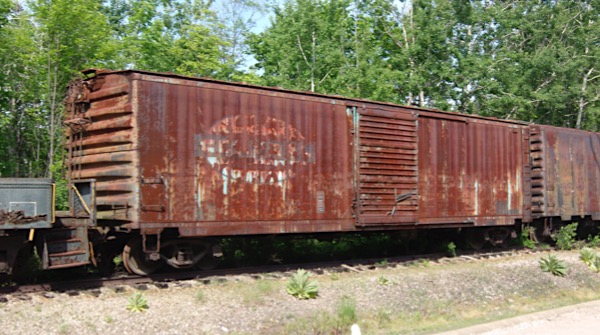

    jefferson24

    Jefferson, Oh / May 2009 / RWH

    tag_pinJefferson, Oh

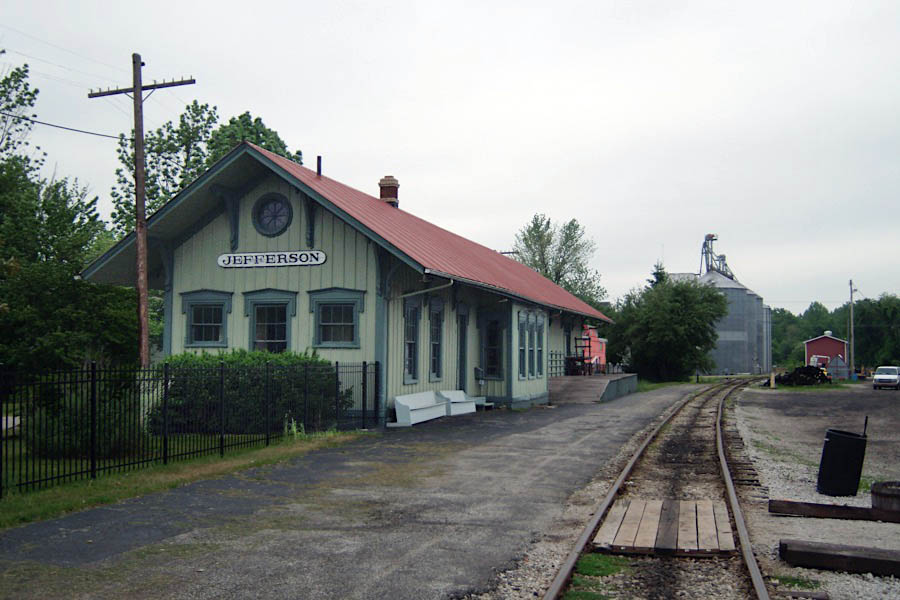

    jefferson1

    Jefferson, Oh / May 2009 / RWH

    tag_pin

    Click to see the Jefferson depot area plotted on a Google Maps page

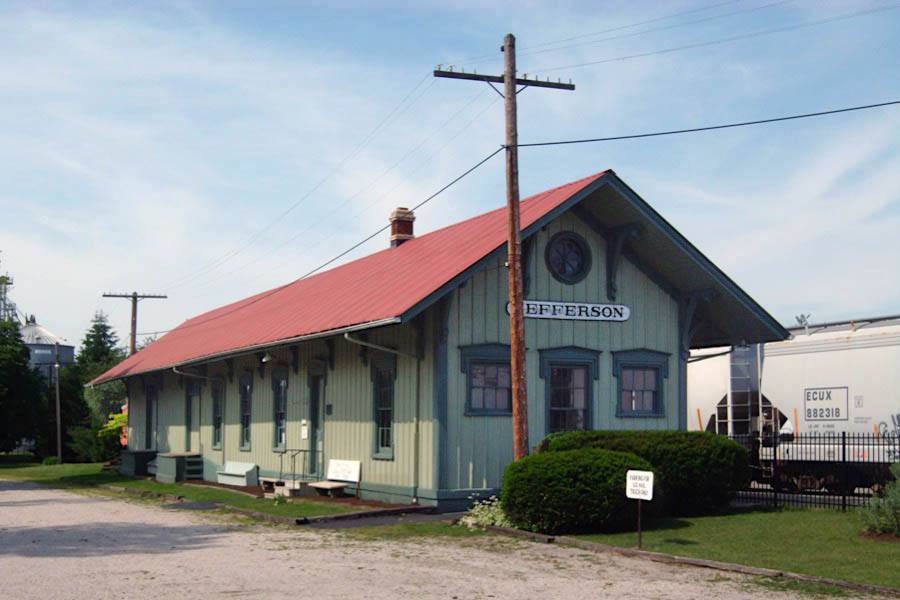

    jefferson2

    Jefferson, Oh / May 2009 / RWH

    Jefferson

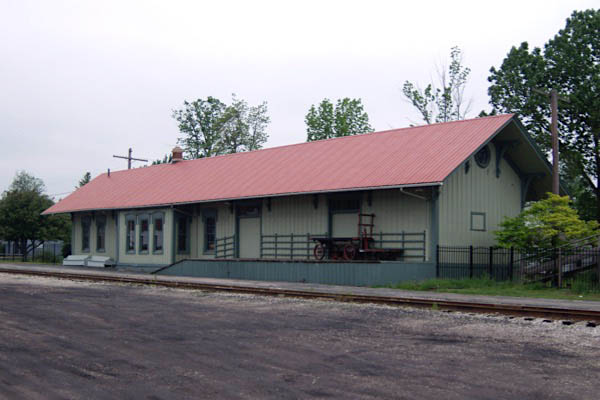

    jefferson3

    Jefferson, Oh / May 2009 / RWH

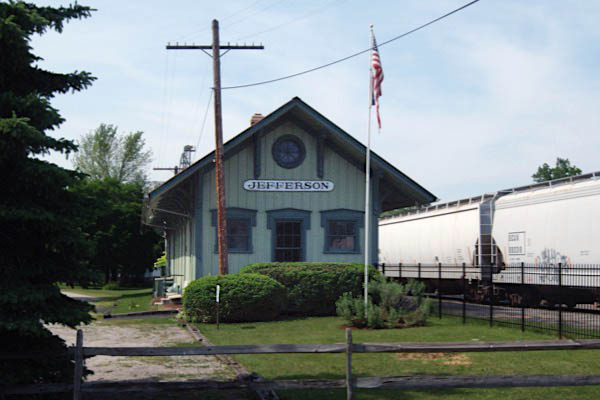

    jefferson4

    Jefferson, Oh / May 2009 / RWH

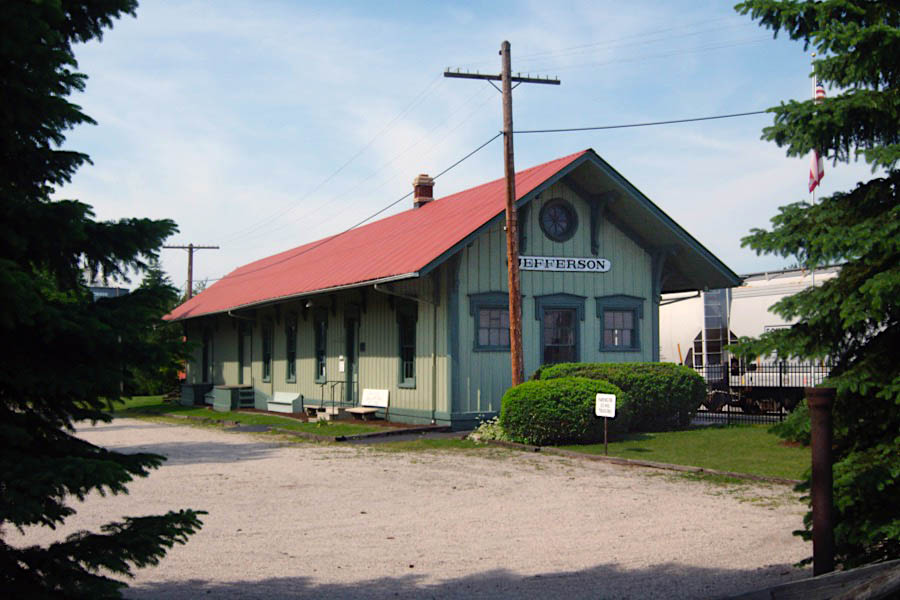

    jefferson5

    Jefferson, Oh / May 2009 / RWH

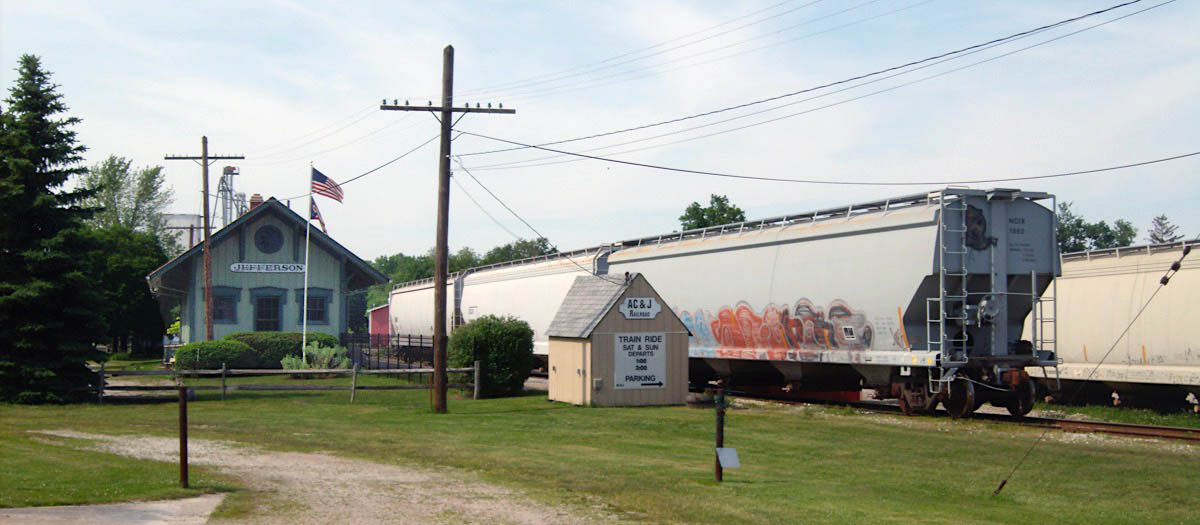

    jefferson15

    Jefferson, Oh / May 2009 / RWH

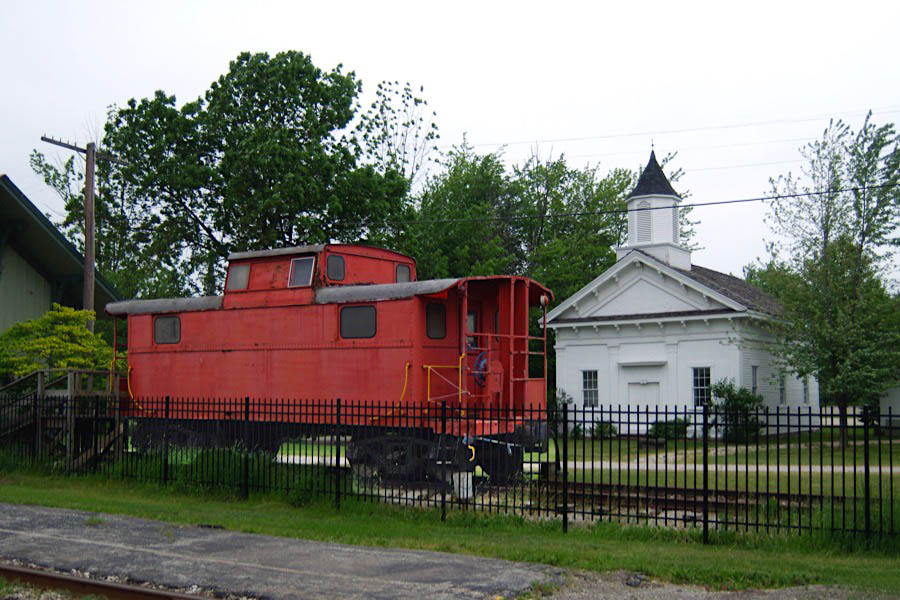

    jefferson25

    Jefferson, Oh / May 2009 / RWH

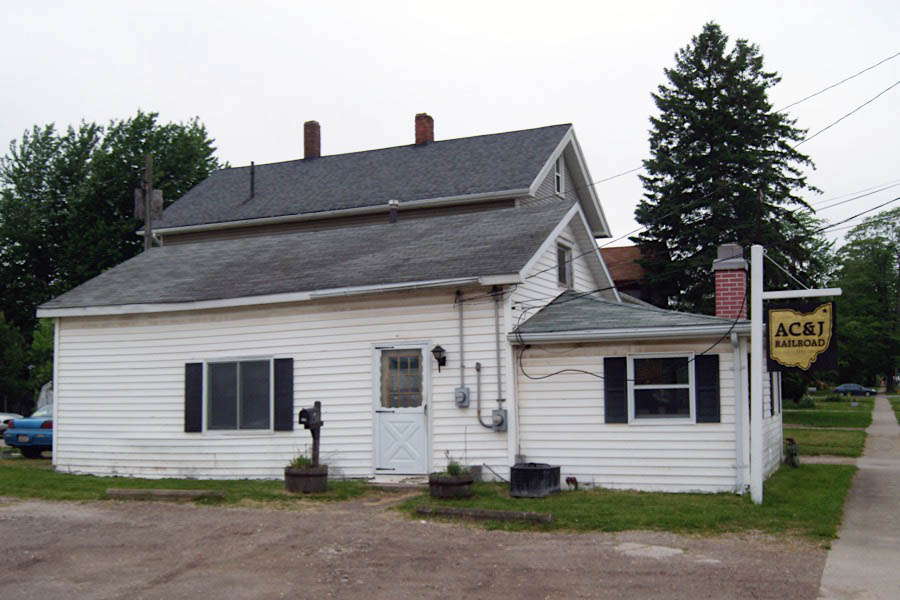

    jefferson9

    Jefferson, Oh / May 2009 / RWH

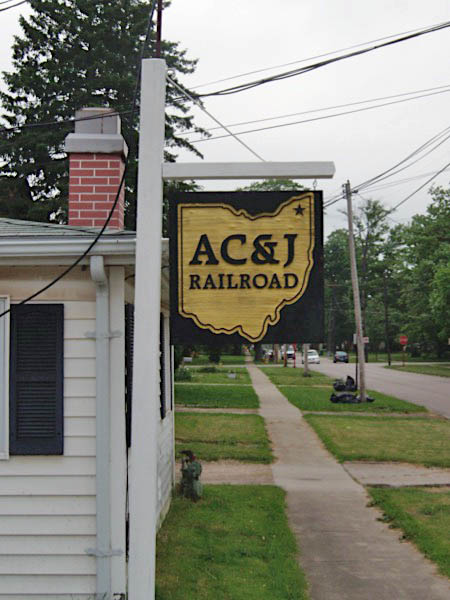

    jefferson10

    Jefferson, Oh / May 2009 / RWH

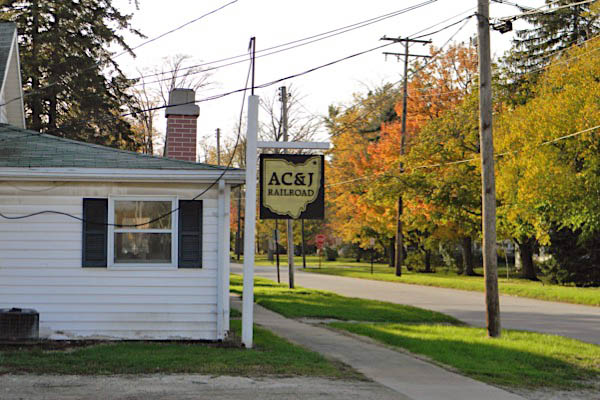

    jefferson11

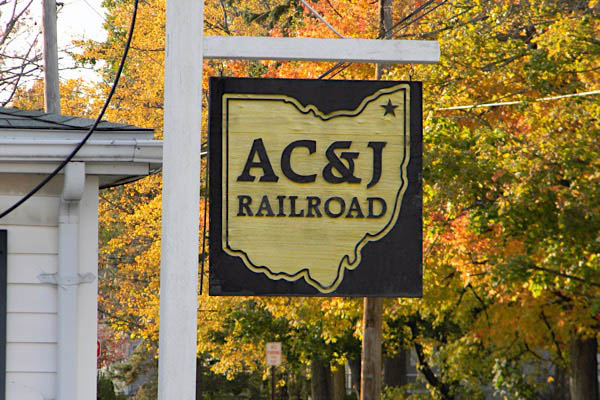

    jefferson12

    May 2009 / RWH

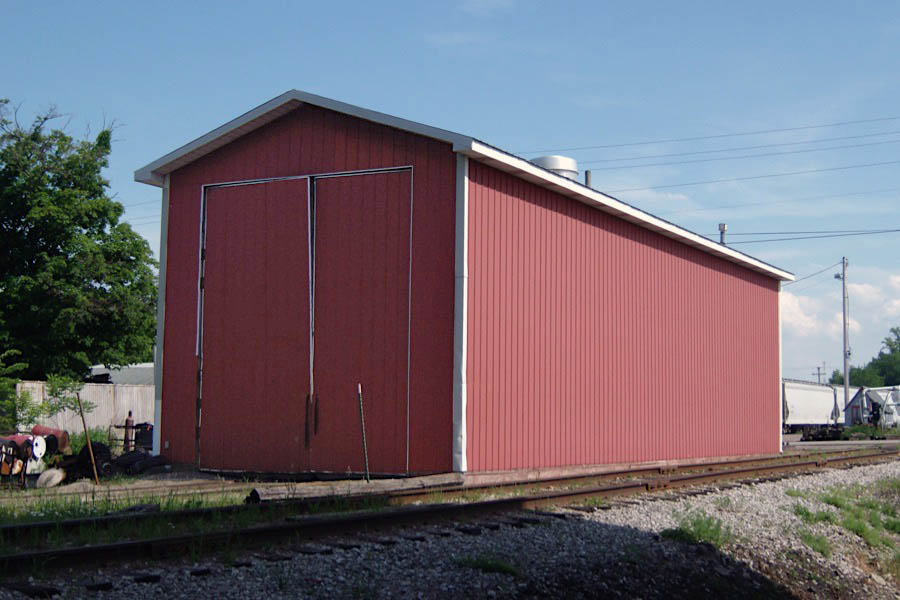

    jefferson6

    Jefferson, Oh / May 2009 / RWH

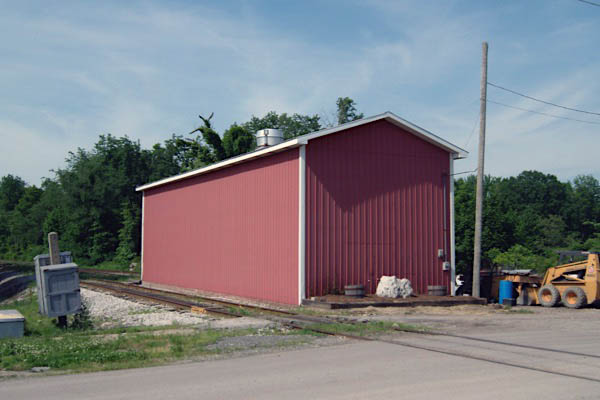

    jefferson7

    Jefferson, Oh / May 2009 / RWH

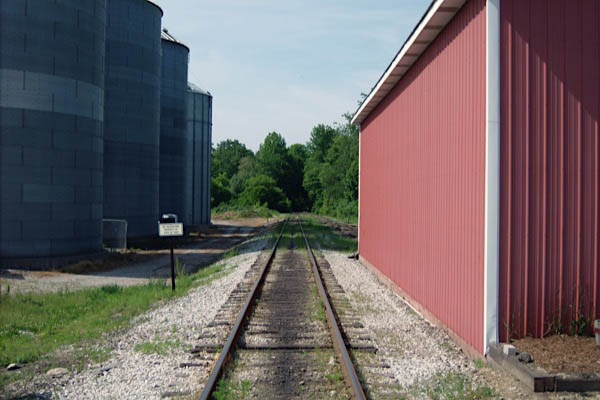

    jefferson8

    Jefferson, Oh / May 2009 / RWH

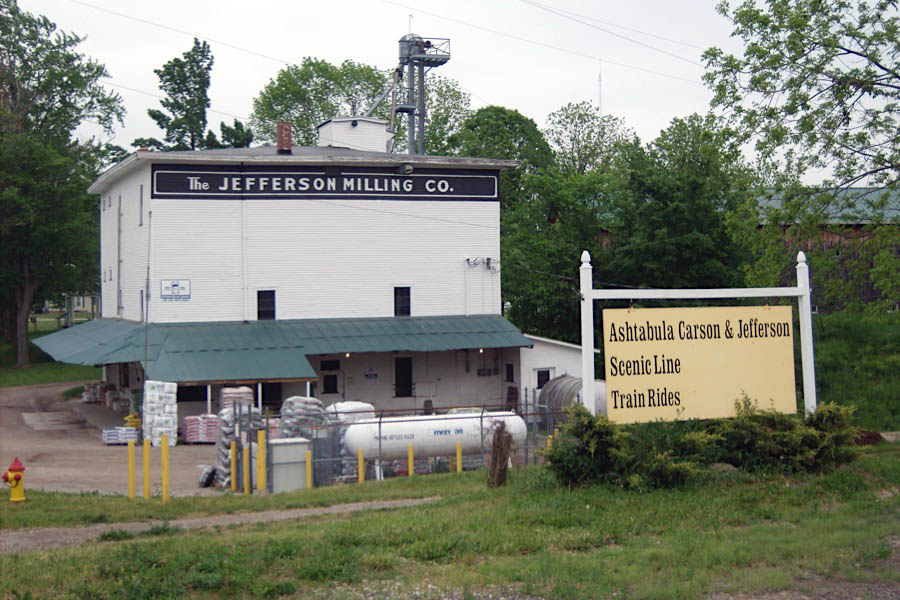

    jefferson13

    Jefferson, Oh / May 2009 / RWH

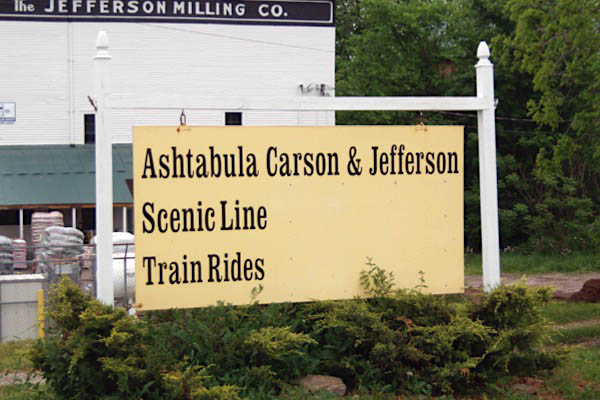

    jefferson14

    May 2009 / RWH

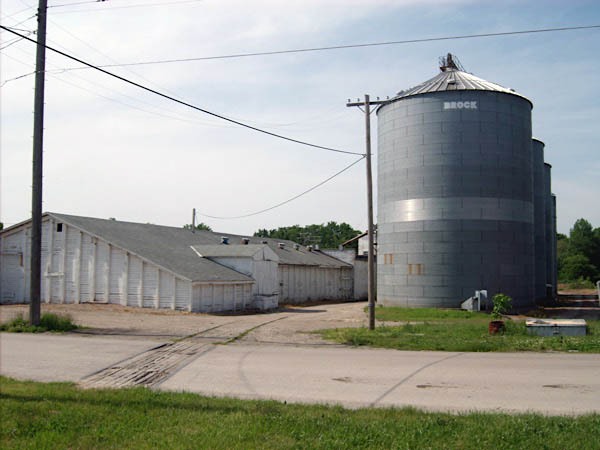

    jefferson16

    Jefferson, Oh / May 2009 / RWH

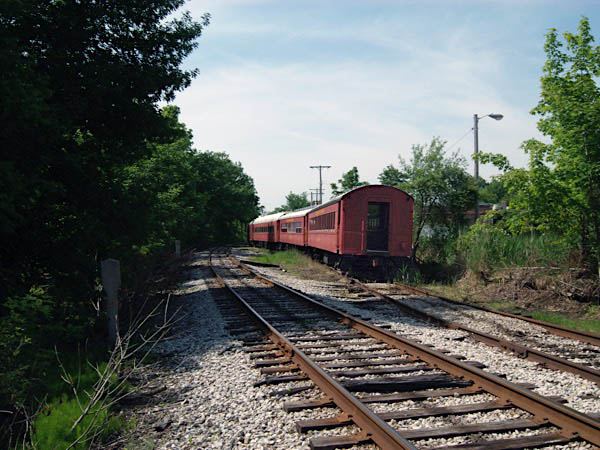

    jefferson17

    Jefferson, Oh / May 2009 / RWH

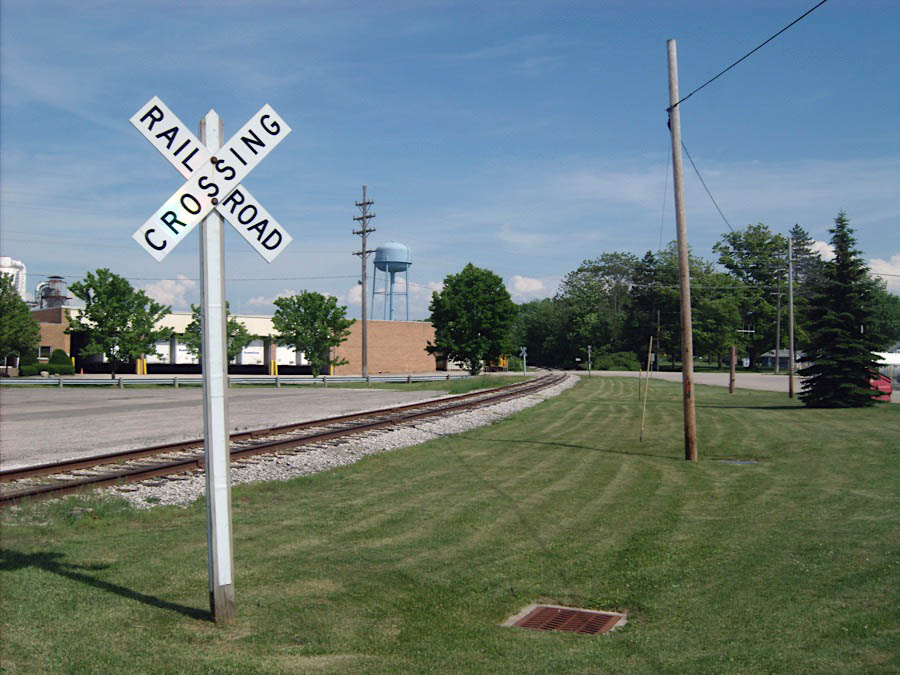

    jefferson18a

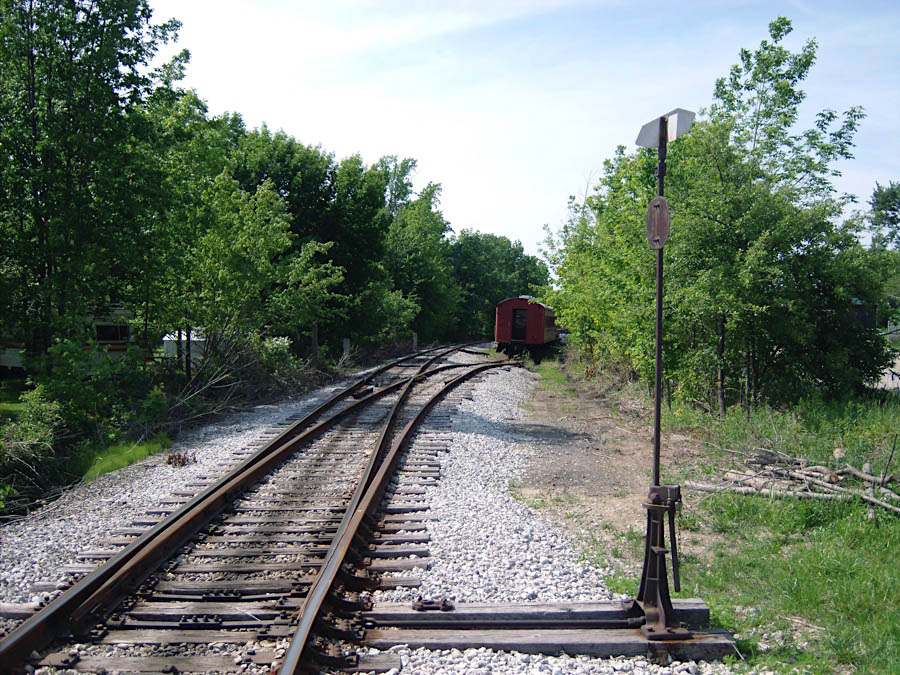

    jefferson18b

    Jefferson, Oh / May 2009 / RWH

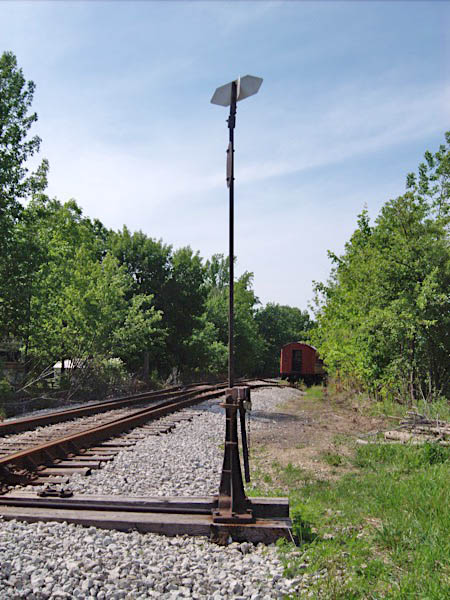

    jefferson21

    May 2009 / RWH

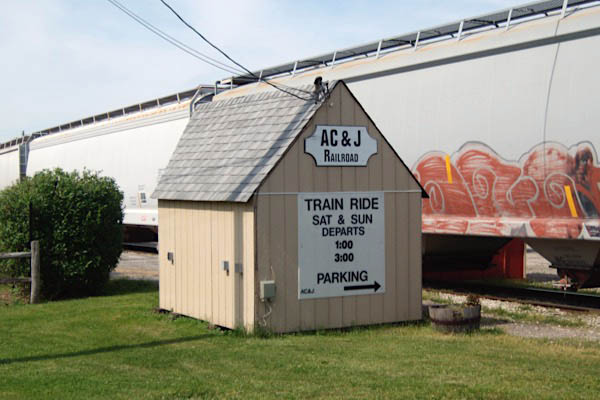

    jefferson19

    Jefferson, Oh / May 2009 / RWH

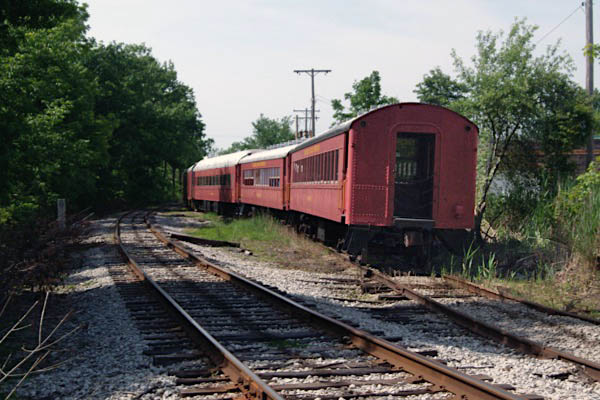

    jefferson20

    Jefferson, Oh / May 2009 / RWH

    Lagniappe tag_twain clipart_lagniappe clipart_extra

    acjr_lagn4

    Little Church in the Wildwood

    Jefferson, Oh / May 2009 / RWH

    acjr_lagn1

    Lady in Waiting

    Jefferson, Oh / May 2009 / RWH

    acjr_lagn2

    Dr. Livingstone, I Presume

    Jefferson, Oh / May 2009 / RWH

    acjr_lagn3

    American All the Way

    image and artwork RWH

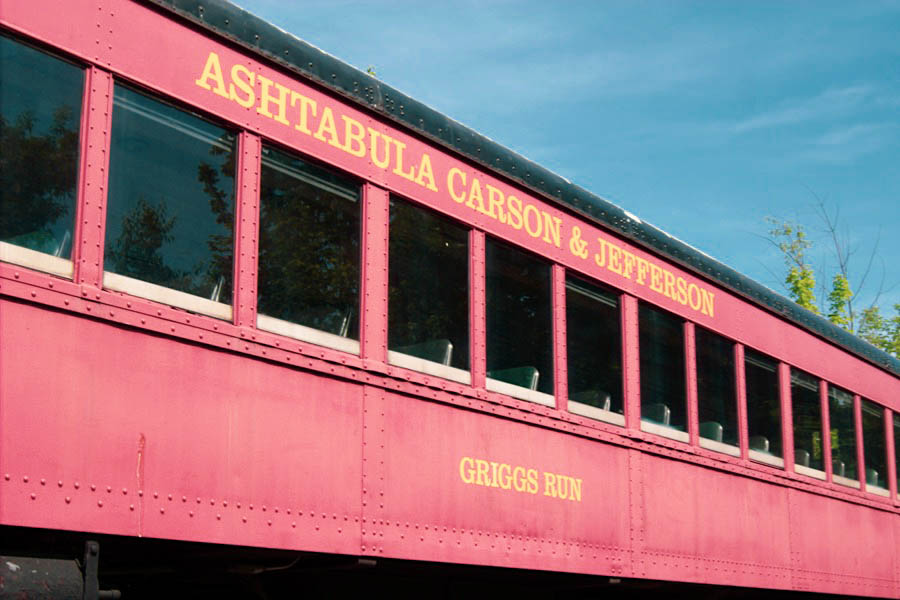

    acjr_lagn5

    The Scenic Shortline

    Jefferson, Oh / May 2009 / RWH

    tag_snapSnapshots

    acjr_lagn7

    Jefferson, Oh / Oct 2011 / RWH
